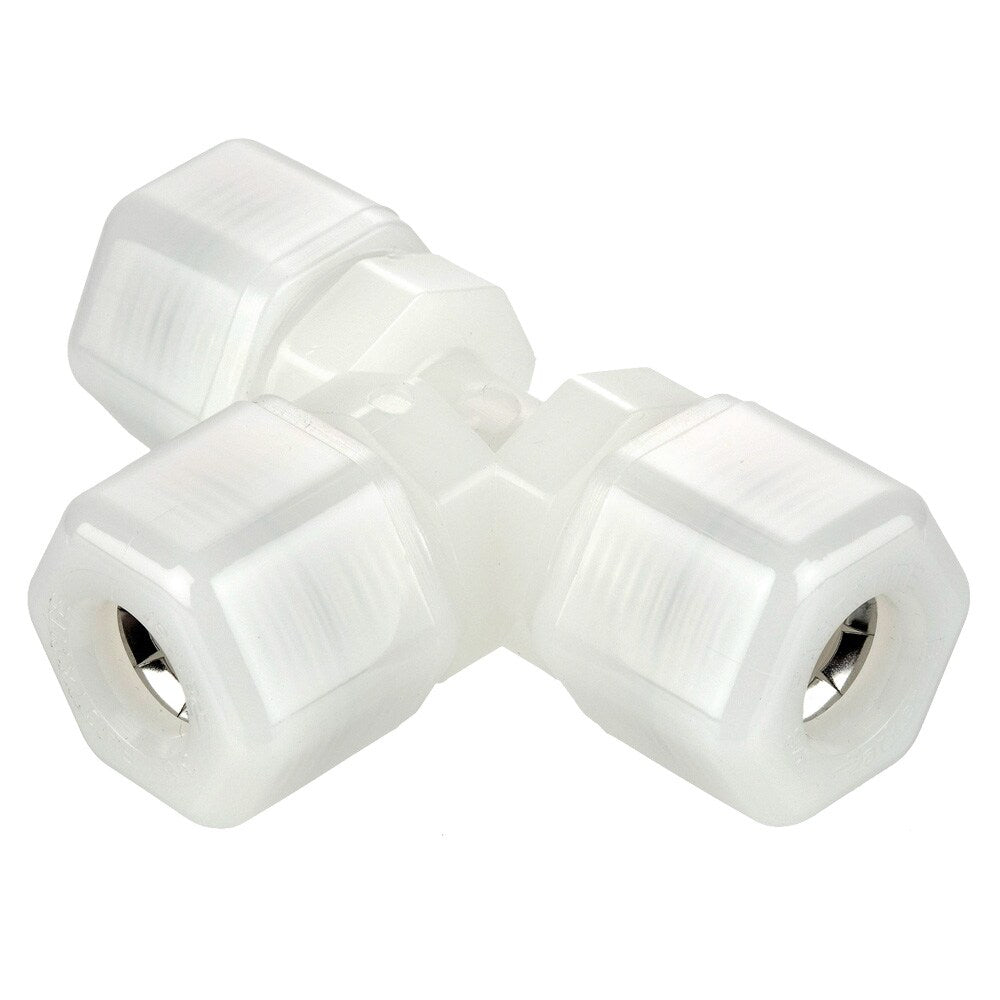

N10TU10 by Parker | Tube to Tube Fitting | 5/8" Tube OD | 1-3/16" Hex | 3.36" Length | Tee | Natural | Nylon

N10TU10 by Parker | Tube to Tube Fitting | 5/8" Tube OD | 1-3/16" Hex | 3.36" Length | Tee | Natural | Nylon

Sale price$11.02

by Parker Hannifin
Fast & Tite® Fittings:TU - Tee Union
Buy More, Save More!
Quantity Price Each
20–39 $10.36
40–79 $9.37
80+ $8.27
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Fast & Tite®
Series:
  • TU Series
Shape:

Tee
Product Features:
  • Available in black polypropylene and white nylon
  • White polypropylene available as a non-standard part
  • 302 stainless steel grab ring
  • Nitrile O-ring
  • FDA compliant material
  • NSF/ANSI-51
Markets:
  • Water Filtration
  • Beverage Dispensing
  • Life Science
  • Bottling
  • Semi-Conductor
Applications:
  • Water
  • End-of-Arm Tooling
  • Beverages
  • Food
  • Cooling Systems
  • Vacuum
Temperature Range: 0° to +200° F (-17.8° to +93.3° C)
Compatible Tubing:
  • Thermoplastic
  • Soft Metal
  • Glass
Black Polypropylene Part Number White Polypropylene Part Number Natural Nylon Part Number Nom. Tube O.D. Hex (C) M N Flow Diameter (D)
P4TU4 W4TU4 N4TU4 1/4" 11/16" 1.09" 1.09" .170"
P5TU5 - N5TU5 5/16" 11/16" 1.09" 1.09" .187"
P6TU6 W6TU6 N6TU6 3/8" 13/16" 1.30" 1.30" .250"
P8TU6 - N8TU6 1/2" - 3/8" 1" 1.46" 1.39" .250"
P8TU8 W8TU8 N8TU8 1/2" 1" 1.46" 1.46" .375"
P10TU6 - N10TU6 5/8" - 3/8" 1-1/8" 1.68" 1.46" .250"
P10TU10 - N10TU10 5/8" 1-3/16" 1.68" 1.68" .500"
