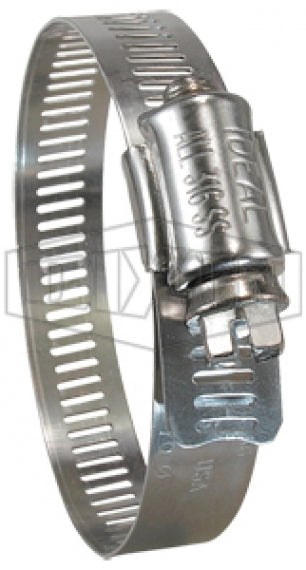

MGC16 by Dixon Valve | Style MGC | Marine Grade Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 11/16" to 1-1/2" | 316 Stainless Steel Band & Screw | Box of 10
Dixon

MGC16 by Dixon Valve | Style MGC | Marine Grade Worm Gear Clamp | 1/2" Band Width | Hose OD Range: from 11/16" to 1-1/2" | 316 Stainless Steel Band & Screw | Box of 10

Sale price$41.93

Dixon Valve
Marine Grade Worm Gear Clamps | Style MGC


Package Quantity: 10 EA

Product Data:

Series:
  • Style MGC
Material(s):
  • 316 Stainless Steel
Clamp Width:

0.5"
Features:
  • Screw design: 5/16" slotted hex head.
  • Three-piece construction.
  • Suggested installation torque 30-42 in. lbs.; maximum recommended torque 60 in. lbs.
  • Torque ratings correspond to the torque rating of the screw of the clamp and are not an indication of the working pressure of any hose assembly installed with this clamp.
Materials:
  • 316 Marine Grade Stainless Steel: band, screw, housing.
Approval:
  • Clamp meets SAEJ1508 which supercedes Mil Spec WW-C-440B.
Part Number Band Width Hose OD
From To
MGC6 1/2" 3/8" 7/8"
MGC8 1/2" 7/16" 1"
MGC10 1/2" 9/16" 1-1/16"
MGC12 1/2" 9/16" 1-5/16"
MGC16 1/2" 11/16" 1-1/2"
MGC20 1/2" 3/4" 1-3/4"
MGC24 1/2" 1-1/16" 2"
MGC28 1/2" 1-5/16" 2-1/4"
MGC32 1/2" 1-9/16" 2-1/2"
MGC36 1/2" 1-13/16" 2-3/4"
MGC40 1/2" 2-11/16" 3"
MGC44 1/2" 2-5/16" 3-1/4"
MGC48 1/2" 2-9/16" 3-1/2"
MGC52 1/2" 1-13/16" 3-3/4"
MGC56 1/2" 3-1/16" 4"
MGC64 1/2" 2-1/2" 4-1/2"
MGC72 1/2" 3-1/16" 5"
MGC80 1/2" 3-1/2" 5-1/2"
MGC88 1/2" 4-3/32" 6"
MGC96 1/2" 4-1/2" 6-1/2"
MGC104 1/2" 5" 7"
