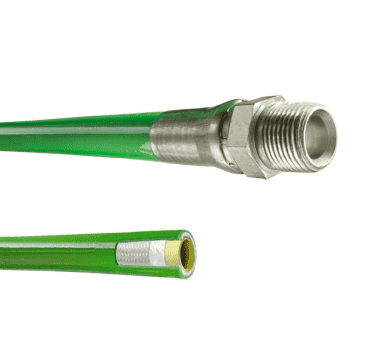

LLGR-MM02X100 by Kuriyama | Piranha® Jetting/Lateral Line Hose Assembly | Green | 1/8" Hose ID | 1/8-27 Male NPTF | 4000 PSI | 100ft Length

LLGR-MM02X100 by Kuriyama | Piranha® Jetting/Lateral Line Hose Assembly | Green | 1/8" Hose ID | 1/8-27 Male NPTF | 4000 PSI | 100ft Length

Sale price$106.58

Kuriyama Piranha "Ready-To-Go" Stock Length Hose Assemblies - Jetting/Lateral Line Hose - Series LLGR - Male NPTF x Male NPTF - Green Cover
Buy More, Save More!
Quantity Price Each
5–19 $100.19
20–59 $90.59
60+ $79.94
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Piranha
Series:
  • LLGR Series
Color(s):
  • Green

SPECIFICATIONS

Application: High Pressure Sewer Cleaning - Applications for commercial, industrial and residential. Tight Pipe Bends - Slick, Slither® cover affords an easier handling hose to get the job done. Jetting/Lateral Line - Used for jetting equipment. SAE Rating: N/A
Other Ratings: N/A Inner Tube : Yellow seamless thermoplastic
Reinforcement: High tensile single synthetic fiber braid. Cover Material: Abrasion resistant polyether-urethane. (Standard) Slither®: Polyether-urethane low coefficient of friction.(Optional)
Temperature Range: -40 deg. F (-40 deg. C) to +160 deg. F (+71 deg. C) (For the diameters of 1/8", 3/16", 1/4" and 3/8") -40 deg. F (-40 deg. C) to +150 deg. F (+66 deg. C) (For the diameter of 1/2") Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • Materials - Constructed to provide rugged and reliable service under the most severe and demanding conditions.
  • Yellow Color Tube - Assures the user that they are using a WASTEC designated Piranha® Hose Product.
  • High Tensile Double Synthetic Fiber Braid - Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption.
  • Abrasion Resistant Polyether-Urethane - Polyurethane cover provides exceptional cut, abrasion and fungus resistance.
  • Slither® Cover - Cover is ultra slippery; allows hose to maneuver around and through difficult sewer bends.
  • Pressure Testing - All Piranha® factory-assembled hoses are 100% pressure tested.
  • Reel Installation - Ideal for truck and trailer mounts.
  • Green Cover = 4,000 PSI
  • Stock Lengths - 400, 500, and 600 foot rolls.
Part Number Size Code Hose I.D. Male NPTF Nom. Thread Size Working Pressure Assembled Length Weight
(in.) (Max PSI) (Lbs/Pack)
LLGR-MM02X100 02 1/8" 1/8 - 27 4000 PSI 100ft 4 lbs
LLGR-MM04X100 04 1/4" 1/4 - 18 4000 PSI 100ft 6 lbs
LLGR-MM04X200 04 1/4" 1/4 - 18 4000 PSI 200ft 12 lbs
LLGR-MM06X100 06 3/8" 3/8 - 18 4000 PSI 100ft 11 lbs
LLGR-MM06X150 06 3/8" 3/8 - 18 4000 PSI 150ft 15 lbs
LLGR-MM06X200 06 3/8" 3/8 - 18 4000 PSI 200ft 22 lbs
LLGR-MM06X250 06 3/8" 3/8 - 18 4000 PSI 250ft 28 lbs
LLGR-MM06X300 06 3/8" 3/8 - 18 4000 PSI 300ft 33 lbs
LLGR-MM08X100 08 1/2" 1/2 - 14 4000 PSI 100ft 16 lbs
LLGR-MM08X500 08 1/2" 1/2 - 14 4000 PSI 500ft 80 lbs
LLGR-MM08X600 08 1/2" 1/2 - 14 4000 PSI 600ft 96 lbs
LLGR-MS06X100 06 3/8" 3/8 - 18 4000 PSI 100ft 11 lbs
LLGR-MS06X200 06 3/8" 3/8 - 18 4000 PSI 200ft 22 lbs
LLGR-MS06X300 06 3/8" 3/8 - 18 4000 PSI 300ft 33 lbs
SLGR-MM06X250 06 3/8" 3/8 - 18 4000 PSI 250ft 28 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
