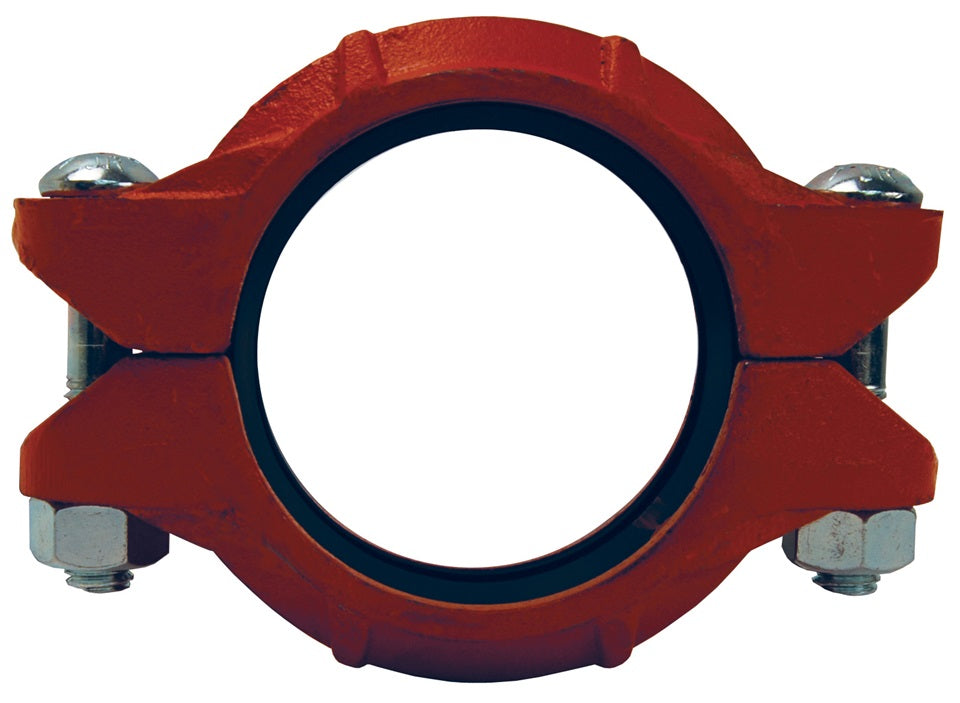

L03 by Dixon Valve | Grooved Lightweight Flexible Coupling | Series-L | Style 10 | 3" Nominal Size | 3.500" Pipe OD | EPDM Gasket | Ductile Iron

L03 by Dixon Valve | Grooved Lightweight Flexible Coupling | Series-L | Style 10 | 3" Nominal Size | 3.500" Pipe OD | EPDM Gasket | Ductile Iron

Sale price$28.71

Dixon Valve
Grooved Lightweight Flexible Coupling | Series-L | Style 10

Designed for applications requiring moderate internal pressure or where weight is a factor such as general purpose, mining, irrigation, and compressed air where a deflection of 5% or less is required.
Buy More, Save More!
Quantity Price Each
10–39 $26.99
40–79 $24.40
80+ $21.53
Discounts applied in cart/checkout.

Product Data:

Series:
  • Series-L
Shape:

Straight

Material(s):
  • Ductile Iron
Materials:
  • Ductile iron body with rust inhibiting paint.
Approvals:
  • UL listed and Factory Mutual approved.
Comparable to:
  • Victaulic's #75
  • Grinnell's #7000
Ductile Iron
with EPDM Gasket
Part Number		 Ductile Iron
with Nitrile Rubber Gasket
Part Number		 Nominal
Size		 Pipe
O.D.		 Maximum
Working Pressure
PSI at 70°F (21°C)		 Maximum
End Load
(Lbs.)		 Bolts Dimensions
Qty Size Length A B C
L215 L215BU 1-1/2" 1.900" 500 PSI 1418 lbs 2 3/8" 2-1/4" 4-1/2" 2-29/32" 1-25/32"
L02 L02BU 2" 2.375" 500 PSI 2215 lbs 2 3/8" 2" 4-7/8" 3-25/64" 1-27/32"
L025 L025BU 2-1/2" 2.875" 300 PSI 3246 lbs 2 3/8" 2" 5-15/32" 3-45/64" 1-27/32"
L03 L03BU 3" 3.500" 300 PSI 4811 lbs 2 1/2" 2-3/4" 6-27/64" 4-39/64" 1-27/32"
L04 L04BU 4" 4.500" 300 PSI 6362 lbs 2 1/2" 2-3/4" 7-33/64" 5-7/8" 2-1/64"
L05 L05BU 5" 5.563" 300 PSI 9722 lbs 2 5/8" 3-1/4" 9-17/32" 7-3/32" 2-1/64"
L06 L06BU 6" 6.625" 300 PSI 13789 lbs 2 5/8" 3-1/4" 10-7/16" 8-7/64" 2-3/64"
L08 L08BU 8" 8.625" 300 PSI 20449 lbs 2 3/4" 4-1/4" 13-15/32" 10-5/32" 2-13/32"
