K1138-12X300 Kuri-Tec by Kuriyama | Polyair K1138 Series | Multi-Purpose Air & Water Hose | Grey | 3/4" ID | 1.125" OD | 300ft Length

K1138-12X300 Kuri-Tec by Kuriyama | Polyair K1138 Series | Multi-Purpose Air & Water Hose | Grey | 3/4" ID | 1.125" OD | 300ft Length

Sale price$655.72

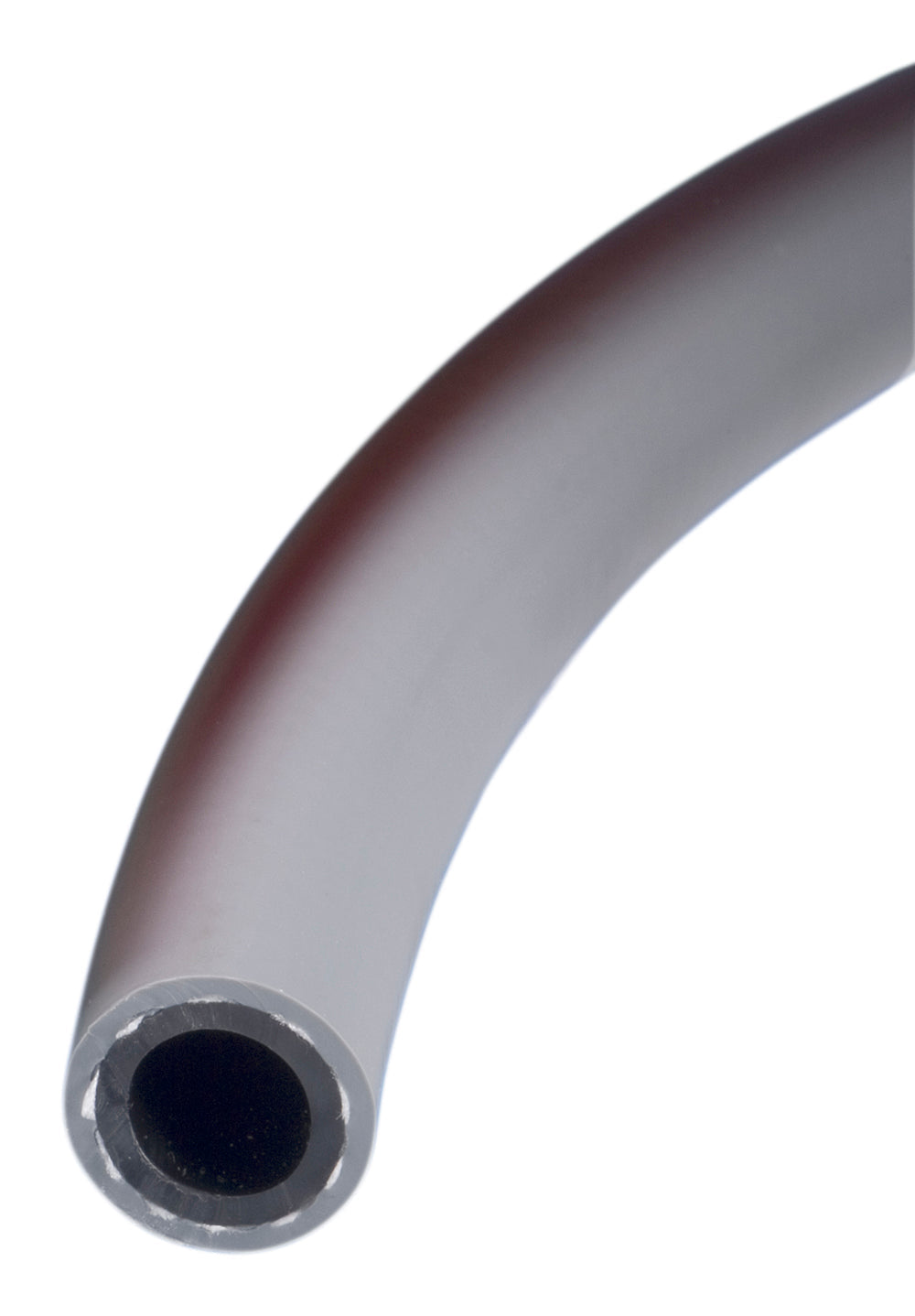

Kuriyama Kuri Tec® POLYAIR® Series K1138 Multi-Purpose Air & Water Hose - Grey Our high quality flexible PVC compounds are uniquely blended to make this hose look and feel like comparable rubber hose and stay flexible at low temperatures. Its light weight makes it an ideal hose for air tool applications.

Package Quantity: 300 FT

Buy More, Save More!
Quantity Price Each
5–14 $616.38
15–29 $557.36
30+ $491.79
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
  • POLYAIR
Series:
  • K1138 Series
Color(s):
  • Grey

SPECIFICATIONS

Application: Ideal for in-plant applications requiring color coding of hose supply lines, Transfer of air, water and mild water-soluble chemicals, Outdoor applications requiring a low temperature hose, Low pressure spray hose for water-soluble chemicals, General air supply line for pneumatic tools and paint spray systems SAE Rating: N/A
Other Ratings: N/A Tube: Black PVC compound
Reinforcement: Spiral polyester yarn with additional longitudinal yarns - reduces elongation under pressure. Cover: PVC compound
Temperature Range: -15 deg. F (-26 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications RoHS(15)
Other Features:
  • U. V. and weather resistant.
  • Excellent cold weather flexibility.
  • Easily re-coiled after use.
  • Medium/high oil resistance, complies with RMA's Class B Designation.
  • Non-marking pin-pricked cover.
  • Lightweight.
  • One-piece lengths.
  • Chemical resistance of PVC.
  • Silicone-free core and cover.
  • RoHS(15) compliant.
Part Number Nominal ID Nominal OD Working Pressure Standard Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
K1138-04X100 1/4" 6.5mm .500" 12.7mm 300 PSI 180 PSI 100 ft. Coil 8 lbs.
K1138-04X500 1/4" 6.5mm .500" 12.7mm 300 PSI 180 PSI 500 ft. Reel 44 lbs.
K1138-06X100 3/8" 9.5mm .625" 15.9mm 300 PSI 180 PSI 100 ft. Coil 11 lbs.
K1138-06X500 3/8" 9.5mm .625" 15.9mm 300 PSI 180 PSI 500 ft. Reel 58 lbs.
K1138-08X100 1/2" 12.7mm .813" 20.7mm 300 PSI 180 PSI 100 ft. Coil 18 lbs.
K1138-08X500 1/2" 12.7mm .813" 20.7mm 300 PSI 180 PSI 500 ft. Reel 93 lbs.
K1138-10X100 5/8" 15.9mm .906" 23.0mm 250 PSI 125 PSI 100 ft. Coil 19 lbs.
K1138-10X300 5/8" 15.9mm .906" 23.0mm 250 PSI 125 PSI 300 ft. Reel 64 lbs.
K1138-12X100 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI 100 ft. Coil 30 lbs.
K1138-12X300 3/4" 19.0mm 1.125" 28.6mm 250 PSI 100 PSI 300 ft. Reel 96 lbs.
K1138-16X100 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI 100 ft. Coil 41 lbs.
K1138-16X300 1" 25.4mm 1.406" 35.7mm 250 PSI 100 PSI 300 ft. Reel 130 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
