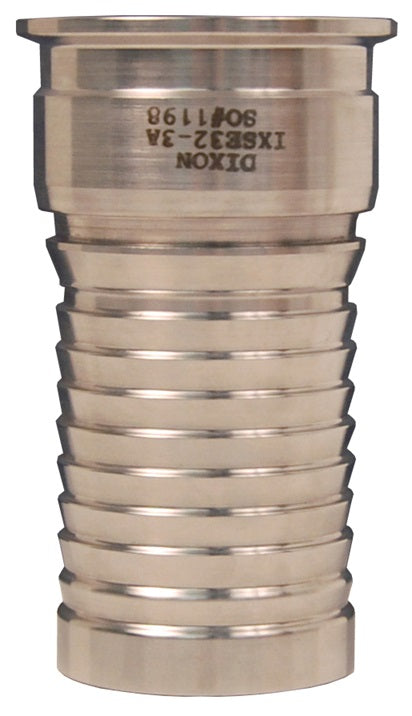

IXSE32-3A by Dixon Valve | Holedall® CIP Internal Expansion (IX) Sanitary Hose Stem | Clamp End x 2" Hose ID | 304 Stainless Steel

IXSE32-3A by Dixon Valve | Holedall® CIP Internal Expansion (IX) Sanitary Hose Stem | Clamp End x 2" Hose ID | 304 Stainless Steel

Sale price$134.08

Dixon Valve
Holedall® CIP Internal Expansion (IX) Sanitary Hose Stem | Clamp End x Hose Barb

Flow Chief Sanitary Fittings are used in the food, dairy and beverage industries, recommended where increased flow capacity is important.

Clean-in-place (CIP) compliant.
Buy More, Save More!
Quantity Price Each
5–19 $126.04
20–59 $113.97
60+ $100.56
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Holedall
Shape:

Straight

Ends Configuration:
  • 2in Sanitary Clamp End
  • 2in Internal Expansion Hose End
Notes:
  • Special plug is required to expand CIP compliant fittings
  • Special adapter plate is required to expand 1-1/2" CIP compliant fittings.
Specifications:
  • 3A compliant when assembled by 3A authorized hose shop.
  • Clean-In-Place (CIP) compliant
Safety Notes:
  • Flow Chief internal expansion (IX) fittings are only to be used with Flow Chief stainless steel ferrules
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations.
  • Strict adherence to ferrule OD range (internally expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended.
304 Stainless Steel
Part Number		 Size
IXSE24-3A 1-1/2"
IXSE32-3A 2"
IXSE48-3A 3"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
