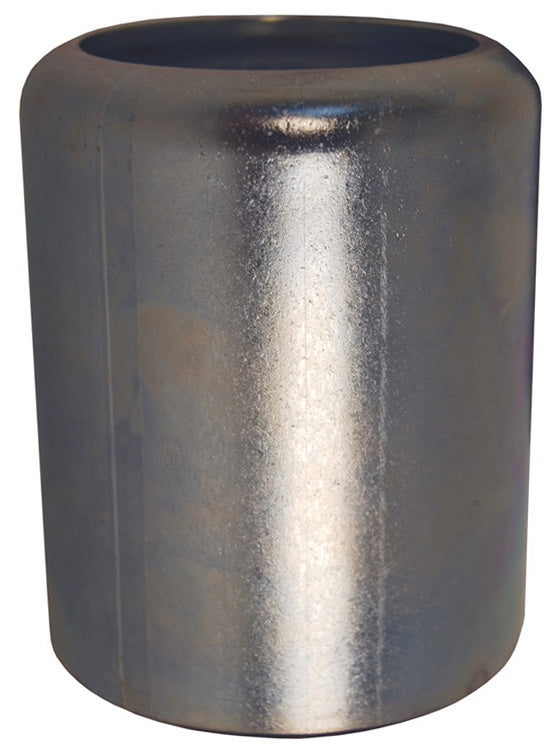

Holedall® Internal Expansion Ferrule

Essential in applications requiring maximum flow including:

  • Concrete Pump Hose
  • Plaster and Grout Hose
  • Food
  • Dairy
  • Pharmaceuticals
Buy More, Save More!
Quantity Price Each
10–39 $36.99
40–79 $33.45
80+ $29.51
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Holedall
Series:
  • IXF Series
Shape:

No Orientation
Features:
  • Internally expanded couplings are essential when maximum flow of media is important.
  • Reduces turbulence through hose.
  • Excellent sealing and retention characteristics.
  • Outperforms band clamps.
  • Easy and consistent installation.
Use:
  • For use with Holedall Internal Expansion Stems: IXM, IXH and IXV styles.
Safety Notes:
  • Dixon Holedall stems and ferrules are specifically designed to be used together as a coupling system. Due to differences in dimensions and tolerances, for safety reasons, do not use other manufacturer's stems or ferrules with Dixon Holedall products.
  • Do not use a wrench or vice on ferrule.
  • Holedall couplings, regardless of coupling style, are never to be used for steam service at any pressure.
  • Holedall fittings are not to be used with cable reinforced high-pressure hose, 4 or 6 braid wire hydraulic hose or any other service not listed in the recommendations. Consult Dixon for recommendations on usage.
  • Strict adherence to ferrule OD range (Internally Expanded) for each hose end to be assembled is essential for satisfactory performance.
  • Internally Expanded Holedall Couplings are not to be used with plastic lined chemical hose.
  • Hose service working pressure (including surges and spikes) is never to exceed the maximum recommended working pressure for the fitting. The assembly's (hose + coupling) maximum working pressure is the lesser of the hose rated working pressure or the coupling rated working pressure.
  • Media being transported through the hose should be compatible with the stem material. Compatibility of ferrule material with the environment in which it will be used is recommended. Consult the Compatibility Chart or the Dixon factory for material compatibility.
  • For applications other than the ones list, please consult Dixon.
  • Maximum recommended working pressures, in PSI, given at 70°F/21°C ambient temperature.
Plated Carbon Steel
Part Number		 Hose ID Hose OD Ferrule ID
From To
IXF16-2 1" 1-28/64" 1-32/64" 1-1/2"
IXF16-3 1" 1-32/64" 1-36/64" 1-9/16"
IXF20-Z 1-1/4" 1-40/64" 1-44/64" 1-11/16"
IXF20-1 1-1/4" 1-44/64" 1-48/64" 1-3/4"
IXF20-2 1-1/4" 1-48/64" 1-52/64" 1-13/16"
IXF20-3 1-1/4" 1-52/64" 1-56/64" 1-7/8"
IXF20-4 1-1/4" 1-56/64" 1-60/64" 1-15/16"
IXF20-5 1-1/4" 1-60/64" 2" 2"
IXF20-6 1-1/4" 2" 2-4/64" 2-1/16"
IXF24-Z 1-1/2" 1-56/64" 1-60/64" 1-15/16"
IXF24-1 1-1/2" 1-60/64" 2" 2"
IXF24-2 1-1/2" 2" 2-4/64" 2-1/16"
IXF24-3 1-1/2" 2-4/64" 2-8/64" 2-1/8"
IXF24-4 1-1/2" 2-8/64" 2-12/64" 2-3/16"
IXF24-5 1-1/2" 2-12/64" 2-16/64" 2-1/4"
IXF24-6 1-1/2" 2-16/64" 2-20/64" 2-5/16"
IXF24-7 1-1/2" 2-20/64" 2-24/64" 2-3/8"
IXF32-Y 2" 2-32/64" 2-36/64" 2-9/16"
IXF32-Z 2" 2-36/64" 2-40/64" 2-5/8"
IXF32-1 2" 2-40/64" 2-44/64" 2-11/16"
IXF32-2 2" 2-44/64" 2-48/64" 2-3/4"
IXF32-3 2" 2-48/64" 2-52/64" 2-13/16"
IXF32-4 2" 2-52/64" 2-56/64" 2-7/8"
IXF32-5 2" 2-56/64" 2-60/64" 2-15/16"
IXF32-6 2" 2-60/64" 3" 3"
IXF32-7 2" 3" 3-4/64" 3-1/16"
IXF40-1 2-1/2" 3" 3-4/64" 3-1/16"
IXF40-2 2-1/2" 3-4/64" 3-8/64" 3-1/8"
IXF40-3 2-1/2" 3-8/64" 3-12/64" 3-3/16"
IXF40-4 2-1/2" 3-12/64" 3-16/64" 3-1/4"
IXF40-5 2-1/2" 3-16/64" 3-20/64" 3-5/16"
IXF40-6 2-1/2" 3-20/64" 3-24/64" 3-3/8"
IXF40-7 2-1/2" 3-24/64" 3-28/64" 3-7/16"
IXF40-8 2-1/2" 3-28/64" 3-32/64" 3-1/2"
IXF48-T 3" 3-32/64" 3-36/64" 3-9/16"
IXF48-U 3" 3-36/64" 3-40/64" 3-5/8"
IXF48-V 3" 3-40/64" 3-44/64" 3-11/16"
IXF48-W 3" 3-44/64" 3-48/64" 3-3/4"
IXF48-X 3" 3-48/64" 3-52/64" 3-13/16"
IXF48-Y 3" 3-52/64" 3-56/64" 3-7/8"
IXF48-Z 3" 3-56/64" 3-60/64" 3-15/16"
IXF48-1 3" 3-60/64" 4" 4"
IXF48-2 3" 4" 4-4/64" 4-1/16"
IXF48-3* 3" 4-4/64" 4-8/64" 4-1/8"
IXF48-4* 3" 4-8/64" 4-12/64" 4-3/16"
IXF48-5* 3" 4-12/64" 4-16/64" 4-1/4"
IXF64-T 4" 4-36/64" 4-40/64" 4-5/8"
IXF64-U 4" 4-40/64" 4-44/64" 4-11/16"
IXF64-V 4" 4-44/64" 4-48/64" 4-3/4"
IXF64-W 4" 4-48/64" 4-52/64" 4-13/16"
IXF64-X 4" 4-52/64" 4-56/64" 4-7/8"
IXF64-Y 4" 4-56/64" 4-60/64" 4-15/16"
IXF64-Z 4" 4-60/64" 5" 5"
IXF64-1 4" 5" 5-4/64" 5-1/16"
IXF64-2* 4" 5-4/64" 5-8/64" 5-1/8"
IXF64-3* 4" 5-8/64" 5-12/64" 5-3/16"
IXF64-4* 4" 5-12/64" 5-16/64" 5-1/4"
IXF64-5* 4" 5-16/64" 5-20/64" 5-5/16"

* For hoses using ferrule sizes IXF48-3 thru IXF48-5 and IXF64-2 thru IXF64-5.
