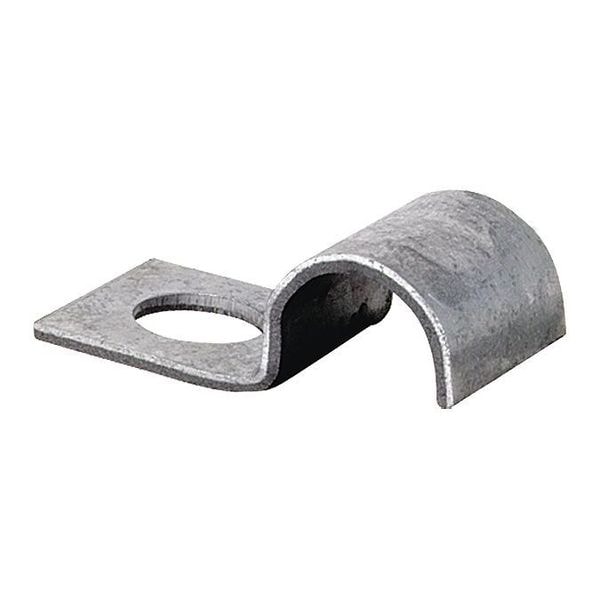

HSN-04 by Foster | Loop Clamp | Clamp Diameter: 1/4" | Stainless Steel
Minimum Order Quantity: 5 Units
Foster
HSN Loop Clamps | Stainless Steel
Product Data:
Series:
Material(s):
Clamp Width:
0.5"
Maximum Clamp I.D.:
["0.25""]
| Features: | ||||||
|---|---|---|---|---|---|---|
|
||||||

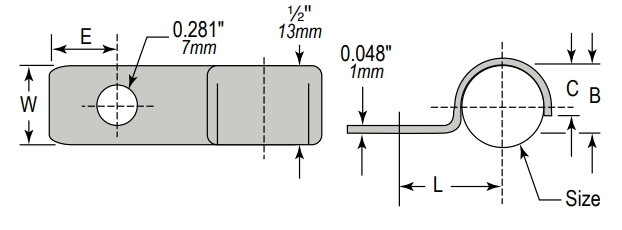

| Part Number | Clamp ID | L | E | B | C | W |
| HSN-04 | 1/4" | 0.500" | 0.250" | 0.250" | 0.250" | 1/2" |
| HSN-05 | 5/16" | 0.531" | 0.312" | 0.312" | 0.188" | 5/8" |
| HSN-06 | 3/8" | 0.562" | 0.312" | 0.375" | .281" | 5/8" |
| HVN-08 | 1/2" | 0.687" | 0.312" | 0.500" | 0.343" | 5/8" |
| HVN-09 | 9/16" | 0.750" | 0.312" | 0.625" | 0.406" | 5/8" |
| HVN-10 | 5/8" | 0.812" | 0.312" | 0.625" | 0.406" | 5/8" |
| HVN-12 | 3/4" | 0.875" | 0.312" | 0.750" | 0.468" | 5/8" |
