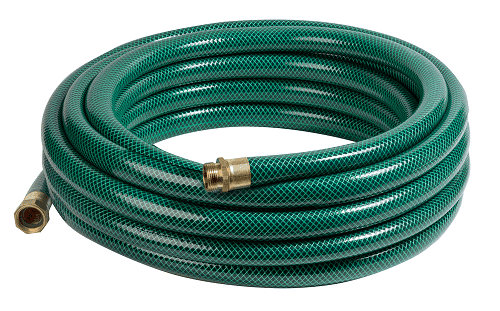

HS1317-16X50 Kuri-Tec by Kuriyama | HS1317 Series | Heavy Duty Reinforced Green Water Hose Assembly | Green | 1" ID | 1.297" OD | PVC | 50ft Length

HS1317-16X50 Kuri-Tec by Kuriyama | HS1317 Series | Heavy Duty Reinforced Green Water Hose Assembly | Green | 1" ID | 1.297" OD | PVC | 50ft Length

Sale price$176.91

Kuriyama Kuri Tec® HS1317 Series Heavy Duty Reinforced Green PVC Water Hose Assemblies

Buy More, Save More!
Quantity Price Each
5–19 $166.30
20–59 $150.37
60+ $132.68
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
Series:
  • HS1317 Series
Color(s):
  • Green

SPECIFICATIONS

Application: Water Hose, Garden Hose SAE Rating: N/A
Other Ratings: N/A Tube: PVC
Reinforcement: N/A Cover: N/A
Temperature Range: +25 deg. F (-4 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • 3/4" Hose assemblies are furnished with heavy-duty Brass GHT, 3/4" M x F fittings.
  • 1" hose assemblies are furnished with 1" NPS pipe thread fittings.
Part Number Nominal ID Nominal OD Working Pressure Assembled Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI) (ft.)
HS1317-12X100 3/4" 19.1mm 1.025" 26.0mm 125 PSI 50 PSI 100 ft. 22 lbs.
HS1317-12X50 3/4" 19.1mm 1.025" 26.0mm 125 PSI 50 PSI 50 ft. 11 lbs.
HS1317-16X100 1" 25.4mm 1.297" 32.9mm 125 PSI 50 PSI 100 ft. 30 lbs.
HS1317-16X50 1" 25.4mm 1.297" 32.9mm 125 PSI 50 PSI 50 ft. 15 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
