HS1234-04X25 Kuri-Tec by Kuriyama | TUNDRA-AIR HS1234 Series | High Grade Low Temperature Air Hose Assembly | Red | 1/4" ID | .500" OD | 25ft Length

HS1234-04X25 Kuri-Tec by Kuriyama | TUNDRA-AIR HS1234 Series | High Grade Low Temperature Air Hose Assembly | Red | 1/4" ID | .500" OD | 25ft Length

Sale price$37.65

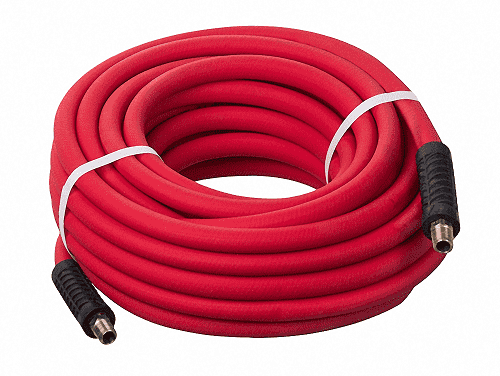

Kuriyama Kuri Tec® TUNDRA-AIR HS1234 Series High Grade Low Temperature Air Hose Assembly - Red

Buy More, Save More!
Quantity Price Each
10–39 $35.39
40–79 $32.00
80+ $28.24
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Kuri Tec
  • TUNDRA-AIR
Series:
  • HS1234 Series
Color(s):
  • Red

SPECIFICATIONS

Application: Air Hose SAE Rating: N/A
Other Ratings: N/A Tube: N/A
Reinforcement: N/A Cover: N/A
Temperature Range: -40 deg. F (-40 deg. C) to +150 deg. F (+65 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Specifications N/A
Other Features:
  • 1/4" and 3/8" sizes (only) come with Rubber Bend Restrictors.
  • Hose assemblies are furnished with the following fittings: 1/4" ID - 1/4" X 1/4"M NPT, 3/8" ID - 3/8" X 1/4"M NPT, 1/2" ID - 1/2" X 3/8"M NPT.
Part Number Nominal ID Nominal OD Working Pressure Assembled Lengths Approx Weight per Pkg
(in.) (mm) (in.) (mm) @ 70 deg. F (20 deg. C) (PSI) @ 122 deg. F (50 deg. C) (PSI)
HS1234-04X100 1/4" 6.5mm .500" 12.7mm 300 PSI 160 PSI 100 ft. 7.8 lbs.
HS1234-04X25 1/4" 6.5mm .500" 12.7mm 300 PSI 160 PSI 25 ft. 2.0 lbs.
HS1234-04X50 1/4" 6.5mm .500" 12.7mm 300 PSI 160 PSI 50 ft. 4.0 lbs.
HS1234-06X100 3/8" 9.5mm .625" 15.9mm 300 PSI 160 PSI 100 ft. 10.7 lbs.
HS1234-06X25 3/8" 9.5mm .625" 15.9mm 300 PSI 160 PSI 25 ft. 2.8 lbs.
HS1234-06X50 3/8" 9.5mm .625" 15.9mm 300 PSI 160 PSI 50 ft. 5.5 lbs.
HS1234-08X100 1/2" 12.7mm .781" 19.8mm 300 PSI 160 PSI 100 ft. 16.0 lbs.
HS1234-08X25 1/2" 12.7mm .781" 19.8mm 300 PSI 160 PSI 25 ft. 4.1 lbs.
HS1234-08X50 1/2" 12.7mm .781" 19.8mm 300 PSI 160 PSI 50 ft. 8.1 lbs.
Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
