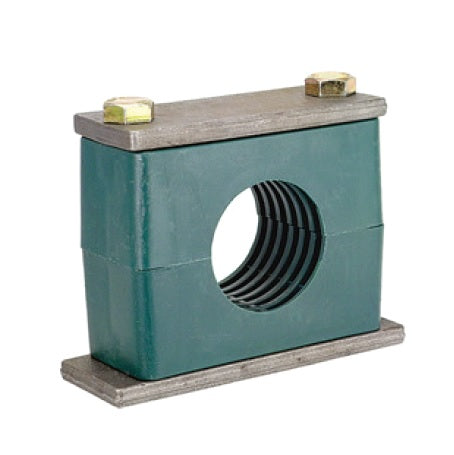

H3004S-SS by ZSi-Foster | Weld Mount Beta Clamp | Heavy Series | For 1/4" Tube | Polypropylene/304 Stainless Steel

H3004S-SS by ZSi-Foster | Weld Mount Beta Clamp | Heavy Series | For 1/4" Tube | Polypropylene/304 Stainless Steel

Sale price$42.61

ZSI-Foster
Beta Hydraulic Clamps - Heavy Series - Weld Mount - Polypropylene (Green) Cushion
Buy More, Save More!
Quantity Price Each
10–39 $40.05
40–79 $36.22
80+ $31.96
Discounts applied in cart/checkout.

Product Data:

Series:
  • Heavy Series
Maximum Clamp I.D.:

0.25"
Overview:
  • Beta Clamps are an economical and easy way of securing pipe, tube, hose, and electrical cables. They are used in industrial, mobile and marine hydraulics, general industrial pipe construction, press technology, instrumentation and control technology, and many other applications.
Features:
  • Shock absorption, vibration dampening, and noise reducing properties.
  • Securely and easily anchor clamps to machinery and steel work with weldable plates.
  • Easily cleaned.
  • Ribs in clamp bore absorb shock and vibration in direction of tube axis.
  • Upper and lower clamp halves are identical.
  • Standard - Polypropylene (Green Color): -22°F to 194°F ( -30°C to +90°C)
Materials:
  • Components: Steel
  • Cushion: Polypropylene
Installation:
Assembly Includes:
Quantity Description
1 Each Weld Plate
1 Each Cover Plate
2 Each Hex Bolts
1 set Cushions
Clamp for:
Tube
Part Number		 Pipe
Part Number		 Size Hex Bolt
H3004S-SS H3009S-SS 1/4" 3/8-16 x 1-3/4
H3006S-SS H3011S-SS 3/8" 3/8-16 x 1-3/4
H3008S-SS H4014S-SS 1/2" Tube: 3/8-16 x 1-3/4
Pipe: 3/8-16 x 2-1/4
H3010S-SS - 5/8" 3/8-16 x 1-3/4
H4012S-SS H4017S-SS 3/4" 3/8-16 x 2-1/4
H4015S-SS - 7/8" 3/8-16 x 2-1/4
H4016S-SS H5021S-SS 1" Tube: 3/8-16 x 2-1/4
Pipe: 3/8-16 x 2-3/4
H5020S-SS H5027S-SS 1-1/4" 3/8-16 x 2-3/4
H5024S-SS H6030S-SS 1-1/2" Tube: 3/8-16 x 2-3/4
Pipe: 1/2-13 x 4
H6028S-SS - 1-3/4" 1/2-13 x 4
H6032S-SS H6038S-SS 2" 1/2-13 x 4
H6034S-SS - 2-1/4" 1/2-13 x 4
H6040S-SS H7046S-SS 2-1/2" Tube: 1/2-13 x 4
Pipe: 5/8-11 x 5-1/4
H7044S-SS - 2-3/4" 5/8-11 x 5-1/4
H7050S-SS H7056S-SS 3" 5/8-11 x 5-1/4
H7057S-SS - 3-1/2" 5/8-11 x 5-1/4
- H8072S-SS 4" M20 x 190mm
- H9089S-SS 5" M24 x 220mm
- H3009S-SS 6" M24 x 220mm

ZSi Foster

ZSi-Foster is a leading manufacturer and supplier of highly engineered, mission critical clamping and coupling devices as well as USA-manufactured strut and strut accessories. Our clamping products are specified for the most demanding environments and applications to eliminate damage due to vibration, shock, surge and corrosion and to eliminate unwanted noise. Our coupler products provide the highest quality connections for pipe, tube and hose in hydraulic and pneumatic applications.
