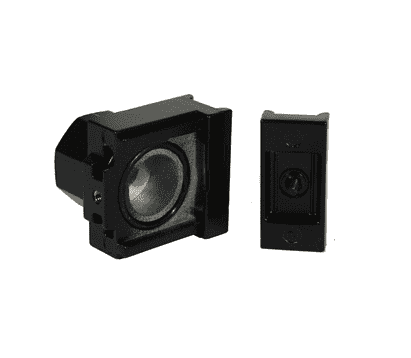

GPA-96-610 Dixon Valve Wilkerson Filter, Regulator, and Lubricator Modular Block - End Block, 1/4" NPT - used on F18, F28, R18, R28, L18, L28
Dixon

GPA-96-610 Dixon Valve Wilkerson Filter, Regulator, and Lubricator Modular Block - End Block, 1/4" NPT - used on F18, F28, R18, R28, L18, L28

Sale price$32.76

Wilkerson Filter Accessories - Modular Blocks On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 deg. F.

Product Data:
Features:
  • Manifold Block:
  • Allows easy design flexibility.
  • Can be installed after the filter or regulator, providing three additional 1/4" NPT tapped auxiliary ports.
  • Inlet/outlet ports are 1/2" non-tapped.
  • 1-17/32" width.
  • End Block:
  • When used with the modular sleeve, end blocks allow a single unit or a combination of units to be piped into the air system in the modular mode.
  • Allows ease of unit servicing or replacement without disturbing the air line connections.
Part Number Use on Description Weight (Lbs.)
GPA-95-919 F16, M16, F26, M26, L16, L26, R16, R26 manifold block, three 1/4" NPT auxiliary ports 0.6305
GPA-95-223 F16, M16, F26, M26, R16, R26, L16, L26 end block, 1/4" NPT 0.3800
GPA-95-224 F16, M16, F26, M26, R16, R26, L16, L26 end block, 3/8" NPT 0.3280
GPA-95-225 F16, M16, F26, M26, R16, R26, L16, L26 end block, 1/2" NPT 0.2800
GPA-95-320 F16, M16, F26, M26, R16, R26, L16, L26 end block, 3/4" NPT 0.7500
GPA-95-321 F16, M16, F26, M26, R16, R26, L16, L26 end block, 1" NPT 0.5590
GPA-96-610 F18, F28, R18, R28, L18, L28 end block, 1/4" NPT 0.6500
GPA-96-611 F18, F28, R18, R28, L18, L28 end block, 3/8" NPT 0.6000
GPA-96-612 F18, F28, R18, R28, L18, L28 end block, 1/2" NPT 0.5700
GPA-96-613 F18, F28, R18, R28, L18, L28 end block, 3/4" NPT 0.5200
GPA-96-620 F18, F28, R18, R28, L18, L28 end block, G1/4" -
GPA-96-621 F18, F28, R18, R28, L18, L28 end block, G3/8" -
GPA-96-622 F18, F28, R18, R28, L18, L28 end block, G1/2" -
GPA-96-623 F18, F28, R18, R28, L18, L28 end block, G3/4" -
