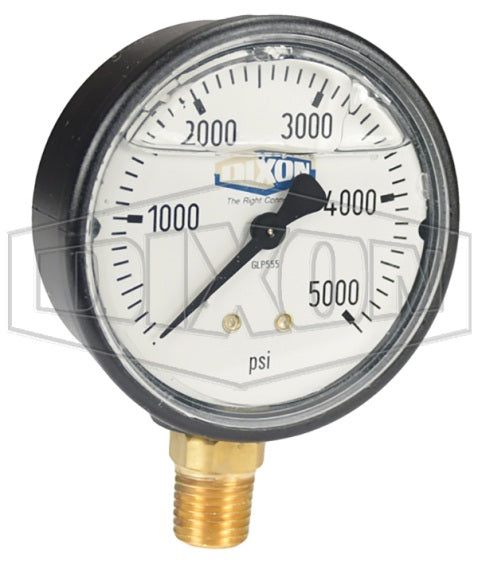

GLP555 by Dixon Valve | Liquid Filled Gauge | Lower Mount | 2-1/2" Face | 1/4" Lower Mount | 0-5000 PSI Range | ABS Plastic Case

GLP555 by Dixon Valve | Liquid Filled Gauge | Lower Mount | 2-1/2" Face | 1/4" Lower Mount | 0-5000 PSI Range | ABS Plastic Case

Sale price$32.01

Dixon Valve
Dixon® Gauge | Liquid Filled Gauge with ABS Case | Lower Mount

Designed for long, reliable service under rugged conditions.

Typical applications include those on pumps, hydraulic and pneumatic systems, compressors, machine tools and many other installations where it is necessary to have a gauge with a non-corrosive movement.
Buy More, Save More!
Quantity Price Each
10–39 $30.09
40–79 $27.21
80+ $24.01
Discounts applied in cart/checkout.

Product Data:

Series:
  • GLP Series
Features:
  • ASME B40.100, Grade B (± 3-2-3% accuracy).
Materials:
  • Case: ABS plastic
Specifications:
  • Temperature range: -4°F to 140°F (-20°C to 60°C)
Term Meanings:
  • Figure Interval: Figure Interval (Increments between PSI numbers on gauge face).
  • Gradient Interval: Graduation Interval (Fractional increments between PSI numbers on gauge face).
2-1/2" Face
1/4" Lower Mount
Part Number		 PSI Range Figure
Interval
(Hg / PSI)		 Minor
Gradient
(Hg / PSI)
GLP500 0-15 PSI 3 0.2
GLP505 0-30 PSI 5 0.5
GLP510 0-60 PSI 10 1
GLP515 0-100 PSI 20 2
GLP517 0-160 PSI 20 2
GLP520 0-200 PSI 50 5
GLP525 0-300 PSI 50 5
GLP527 0-400 PSI 100 10
GLP530 0-600 PSI 100 10
GLP535 0-1000 PSI 200 20
GLP540 0-1500 PSI 300 20
GLP545 0-2000 PSI 500 50
GLP550 0-3000 PSI 500 50
GLP555 0-5000 PSI 1000 100

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
