GH195-8 Aeroquip by Danfoss | HI-IMPULSE MatchMate® Blue Premium High Temperature Double Wire Braid Hydraulic Hose | SAE 100R2 | 0.50" ID
Aeroquip® by Danfoss

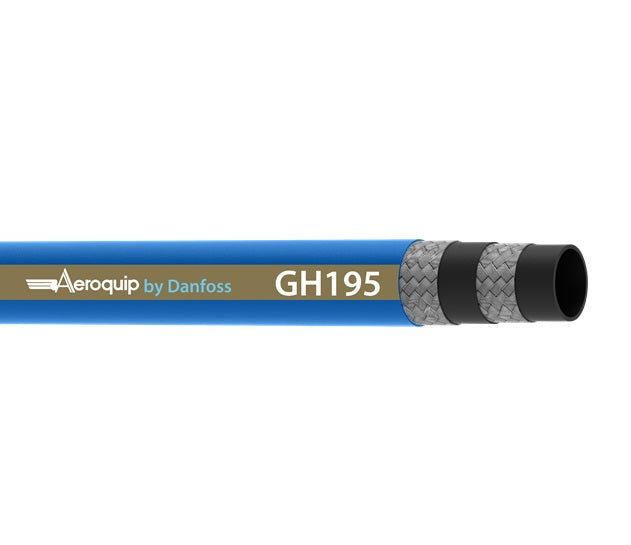

GH195 Series | HI-IMPULSE MatchMate® Blue Premium High Temperature Double Wire Braid Hydraulic Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.55 |
| 40–79 | $18.58 |
| 80+ | $16.40 |
Product Data:
4250
| Hose Properties: | |||
|---|---|---|---|
| Application: | Petroleum and fire resistant hydraulic fluids, fuel, and lubricating systems. | SAE Rating: | Meets or exceeds: SAE 100R2 Type S, EN 853 2SN, ISO 1436-1 Type 2SN performance. |
| Other Ratings: | MSHA Accepted, ABS Accepted | Tube: | CPE |
| Reinforcement: | 2 Steel Braids | Cover: | Blue CPE |
| Temperature Range: | -40°F to + 300°F (-40°C to + 150°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH195-4 | 6 | 6,4mm | 0.25" | 15,1mm | 0.60" | 400,0 bar | 5800 psi | 1600,0 bar | 23200 psi | 102,0mm | 4.02" | 0,40 kg/m | 0.27 lbs/ft |
| GH195-6 | 10 | 9,5mm | 0.38" | 19,2mm | 0.75" | 345,0 bar | 5000 psi | 1380,0 bar | 20000 psi | 127,0mm | 5.00" | 0,58 kg/m | 0.39 lbs/ft |
| GH195-8 | 12 | 12,7mm | 0.50" | 22,1mm | 0.87" | 293,0 bar | 4250 psi | 1172,0 bar | 17000 psi | 178,0mm | 7.01" | 0,68 kg/m | 0.46 lbs/ft |
| GH195-10 | 16 | 15,9mm | 0.62" | 25,5mm | 1.00" | 250,0 bar | 3650 psi | 1000,0 bar | 14600 psi | 203,0mm | 7.99" | 0,80 kg/m | 0.54 lbs/ft |
| GH195-12 | 19 | 19,0mm | 0.75" | 29,5mm | 1.16" | 215,0 bar | 3125 psi | 860,0 bar | 12500 psi | 241,0mm | 9.49" | 1,00 kg/m | 0.67 lbs/ft |
| GH195-16 | 25 | 25,4mm | 1.00" | 37,8mm | 1.49" | 175,0 bar | 2550 psi | 700,0 bar | 10200 psi | 305,0mm | 12.01" | 1,44 kg/m | 0.97 lbs/ft |
| GH195-20 | 31 | 31,8mm | 1.25" | 48,5mm | 1.91" | 155,0 bar | 2250 psi | 620,0 bar | 9000 psi | 419,0mm | 16.50" | 2,38 kg/m | 1.60 lbs/ft |
| GH195-24 | 38 | 38,1mm | 1.50" | 55,1mm | 2.17" | 125,0 bar | 1800 psi | 500,0 bar | 7250 psi | 508,0mm | 20.00" | 2,59 kg/m | 1.74 lbs/ft |
| GH195-32 | 51 | 50,8mm | 2.00" | 67,8mm | 2.67" | 105,0 bar | 1525 psi | 420,0 bar | 6100 psi | 635,0mm | 25.00" | 3,38 kg/m | 2.27 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
