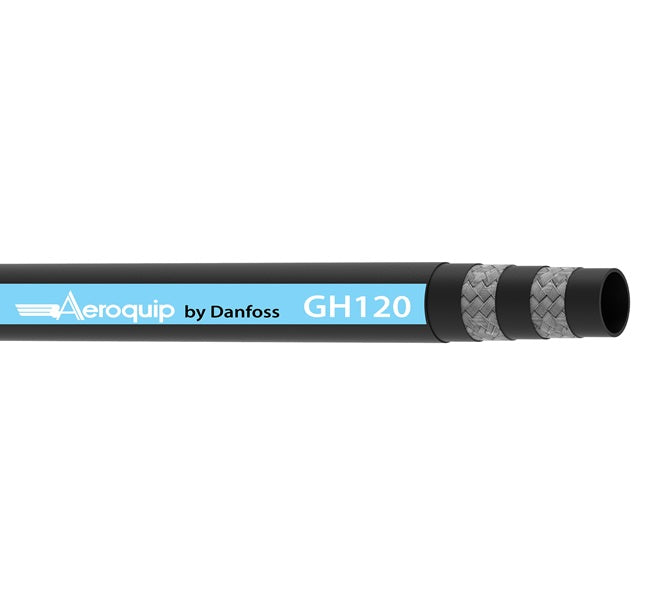

GH120-6 Aeroquip by Danfoss | MatchMate® ICE Premium Low Temperature Double Wire Braid Hydraulic Hose | SAE 100R16 | 0.38" ID
Minimum Order Quantity: 500 Units
Aeroquip® by Danfoss
GH120 Series | MatchMate® ICE Premium Low Temperature Double Wire Braid Hydraulic Hose
For use in frigid environments on construction equipment and other mobile applications.
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.40 |
| 40–79 | $6.69 |
| 80+ | $5.90 |
Product Data:
5000
| Hose Properties: | |||
|---|---|---|---|
| Application: | Low temperature flexing and hydraulic system service with petroleum and water-based fluids. | SAE Rating: | Meets or exceeds: SAE 100R16 Types, EN 857 Type 2SC, ISO 11237-1 Type 2SC performance. |
| Other Ratings: | MSHA Accepted | Tube: | Special Low-Temperature Synthetic Rubber |
| Reinforcement: | Double Wire Braid | Cover: | DURA-TUFF™ Synthetic Rubber |
| Temperature Range: | -70°F to +212°F (-57°C to +100°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| GH120-4 | 6 | 6,4mm | 0.25" | 13,8mm | 0.54" | 414,0 bar | 6000 psi | 1656,0 bar | 24025 psi | 51,0mm | 2.00" | 0,30 kg/m | 0.20 lbs/ft |
| GH120-6 | 10 | 9,5mm | 0.38" | 17,4mm | 0.68" | 345,0 bar | 5000 psi | 1380,0 bar | 20025 psi | 64,0mm | 2.50" | 0,40 kg/m | 0.27 lbs/ft |
| GH120-8 | 12 | 12,7mm | 0.50" | 20,8mm | 0.82" | 310,0 bar | 4500 psi | 1240,0 bar | 18000 psi | 89,0mm | 3.50" | 0,58 kg/m | 0.39 lbs/ft |
| GH120-10 | 16 | 15,9mm | 0.62" | 24,9mm | 0.98" | 276,0 bar | 4000 psi | 1104,0 bar | 16000 psi | 102,0mm | 4.00" | 0,74 kg/m | 0.50 lbs/ft |
| GH120-12 | 19 | 19,0mm | 0.75" | 28,4mm | 1.12" | 241,0 bar | 3500 psi | 964,0 bar | 14000 psi | 121,0mm | 4.75" | 0,92 kg/m | 0.62 lbs/ft |
| GH120-16 | 25 | 25,4mm | 1.00" | 35,7mm | 1.41" | 193,0 bar | 2800 psi | 772,0 bar | 11200 psi | 152,0mm | 6.00" | 1,22 kg/m | 0.82 lbs/ft |
| GH120-20 | 31 | 31,8mm | 1.25" | 43,3mm | 1.71" | 159,0 bar | 2300 psi | 636,0 bar | 9225 psi | 210,0mm | 8.25" | 1,59 kg/m | 1.07 lbs/ft |
| GH120-24 | 38 | 38,1mm | 1.50" | 51,5mm | 2.03" | 138,0 bar | 2000 psi | 552,0 bar | 8000 psi | 254,0mm | 10.00" | 2,11 kg/m | 1.42 lbs/ft |
| GH120-32 | 51 | 50,8mm | 2.00" | 63,9mm | 2.51" | 103,0 bar | 1500 psi | 412,0 bar | 6000 psi | 318,0mm | 12.50" | 2,80 kg/m | 1.88 lbs/ft |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
