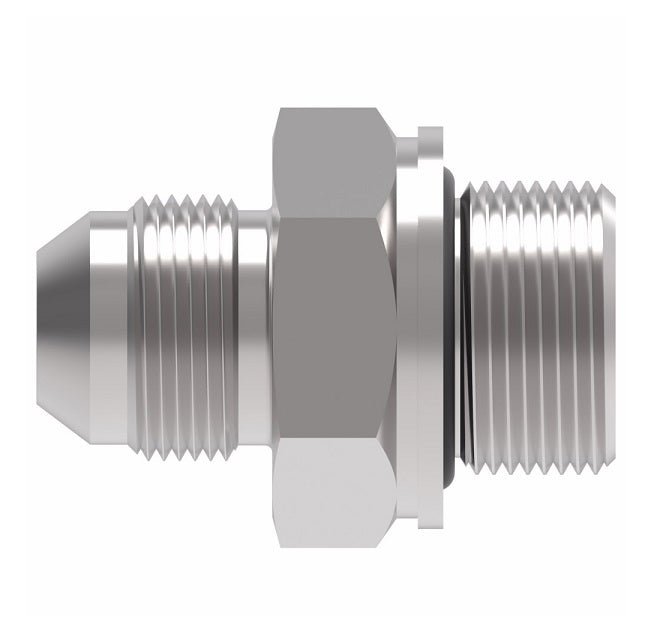

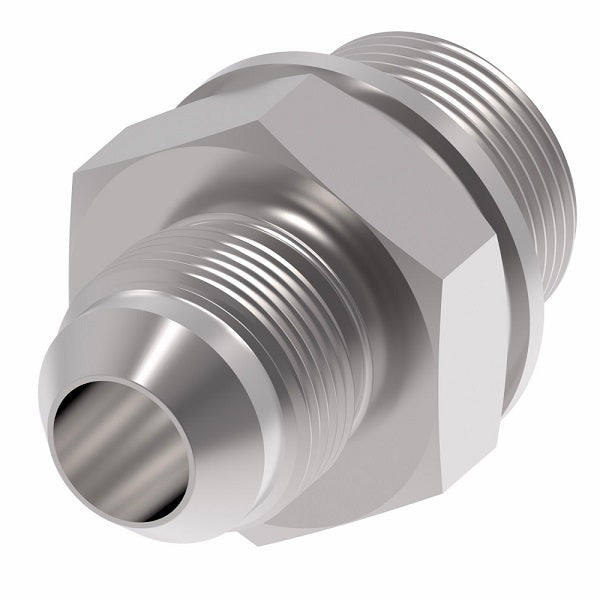

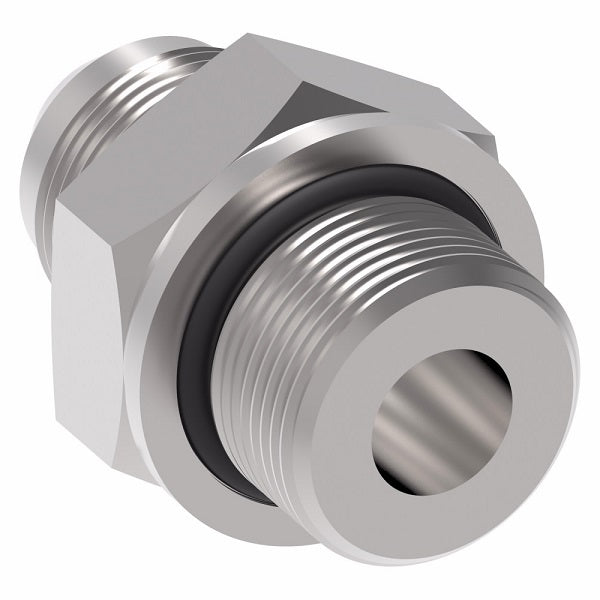

GG106-NP10-08 Aeroquip by Danfoss | Male 37° JIC/BSPP Male Adapter | -10 Male 37° JIC x -08 Male BSPP | Steel
Aeroquip® by Danfoss
Male 37° JIC/BSPP Male Adapter
Male 37° JIC x Male BSPP
Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $23.87 |
| 40–79 | $21.58 |
| 80+ | $19.04 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
 |
||||
|---|---|---|---|---|
| Steel Part Number |
Tube O.D. | Thread T1 | Thread T2 | A |
| GG106-NP04-02 | 0.25" | 7/16-20 | G1/8-28 | 1.14" |
| GG106-NP04-04 | 0.25" | 7/16-20 | G1/4-19 | 1.36" |
| GG106-NP04-06 | 0.25" | 7/16-20 | G3/8-19 | 1.36" |
| GG106-NP04-08 | 0.25" | 7/16-20 | G1/2-14 | 1.50" |
| GG106-NP05-04 | - | - | - | - |
| GG106-NP06-04 | 0.38" | 9/16-18 | G1/4-19 | 1.36" |
| GG106-NP06-06 | 0.38" | 9/16-18 | G3/8-19 | 1.36" |
| GG106-NP06-08 | 0.38" | 9/16-18 | G1/2-14 | 1.50" |
| GG106-NP08-04 | 0.50" | 3/4-16 | G1/4-19 | 1.48" |
| GG106-NP08-06 | 0.50" | 3/4-16 | G3/8-19 | 1.48" |
| GG106-NP08-08 | 0.50" | 3/4-16 | G1/2-14 | 1.61" |
| GG106-NP08-12 | 0.50" | 3/4-16 | G3/4-14 | 1.77" |
| GG106-NP10-06 | 0.63" | 7/8-14 | G3/8-19 | 1.59" |
| GG106-NP10-08 | 0.63" | 7/8-14 | G1/2-14 | 1.71" |
| GG106-NP10-12 | - | - | - | - |
| GG106-NP12-08 | 0.75" | 1-1/16-12 | G1/2-14 | 1.85" |
| GG106-NP12-12 | 0.75" | 1-1/16-12 | G3/4-14 | 1.97" |
| GG106-NP12-16 | 0.75" | 1-1/16-12 | G1-11 | 2.07" |
| GG106-NP16-12 | 1.00" | 1-1/16-12 | G3/4-14 | 2.01" |
| GG106-NP16-16 | 1.00" | 1-5/16-12 | G1-11 | 2.11" |
| GG106-NP16-20 | 1.00" | 1-5/16-12 | G1-1/4-11 | 2.24" |
| GG106-NP20-20 | 1.25" | 1-5/8-12 | G1-1/4-11 | 2.30" |
