GA23911-6-6 E-Z Clip System by Danfoss | Female ORS Swivel Metric Hex Nut | A/C Refrigeration Fitting | -06 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel
Danfoss A/C & Refrigeration

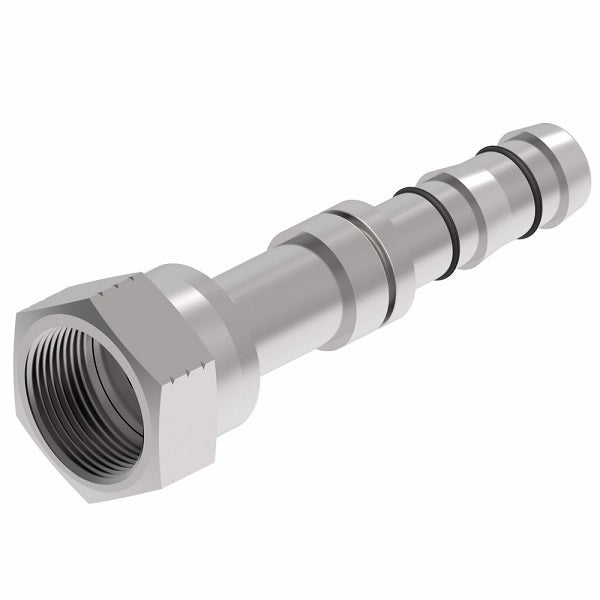

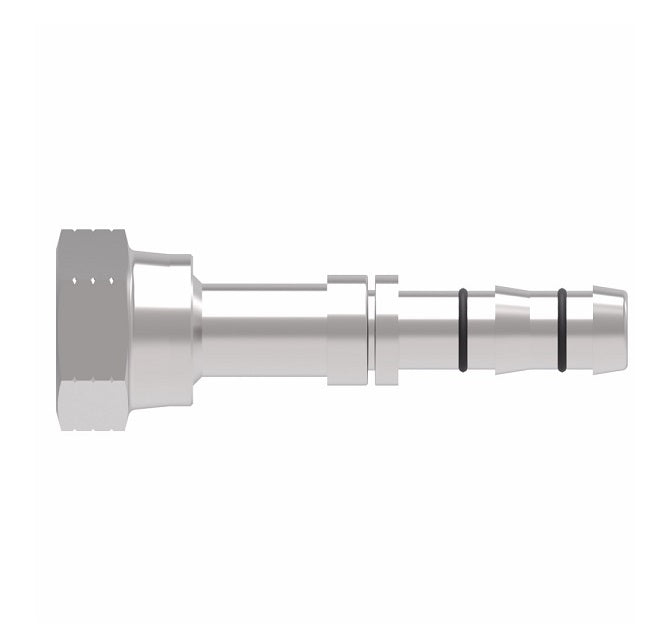

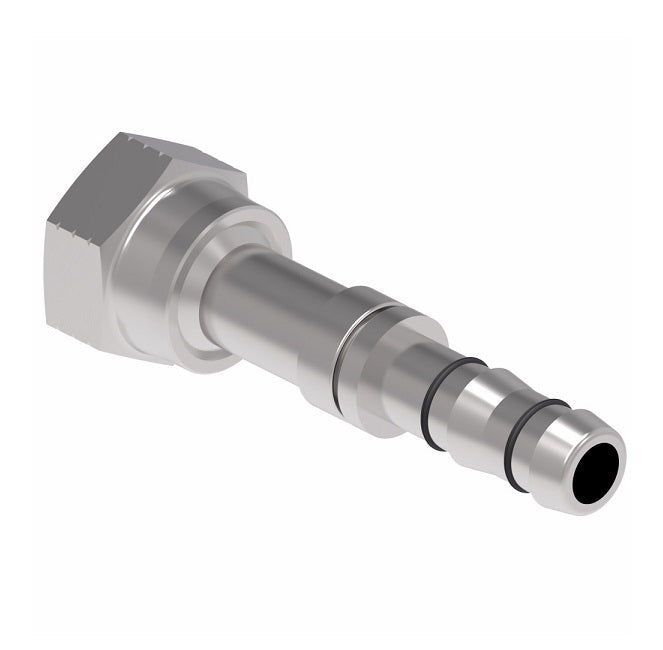

E-Z Clip System - Female ORS Swivel Metric Hex Nut - Straight
O-Ring Not Included. Clips & Cages Sold Separately.
For use with GH001 EverCool A/C & Refrigeration Hose.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $15.02 |
| 40–79 | $13.58 |
| 80+ | $11.99 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Additional Information: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Thread "T" |
Hose Size | A Ref. | D Ref. | Ref. |
Clip & Cage Kit (Required) |
| GA23911-4-4 | 9/16-18 | -04 | 1.86" | 1.19" | 17mm | FF14175 |
| GA23911-6-6 | 1-1/16-16 | -06 | 2.95" | 1.43" | 22mm | FF14171 |
| GA23911-8-8 | 1-3/16-16 | -08 | 3.17" | 1.62" | 24mm | FF14172 |
| GA23911-10-10 | 1-14 | -10 | 3.33" | 1.78" | 30mm | FF14173 |
| GA23911-10-12 | 1-14 | -12 | 3.32" | 1.74" | 30mm | FF14174 |
| GA23911-12-12 | 1-3/16-12 | -12 | 3.32" | 1.52" | 41mm | FF14174 |
| GA23911-16-16 | 1-5/16-12 | -16 | 3.30" | 1.52" | 41mm | FF14401 |
