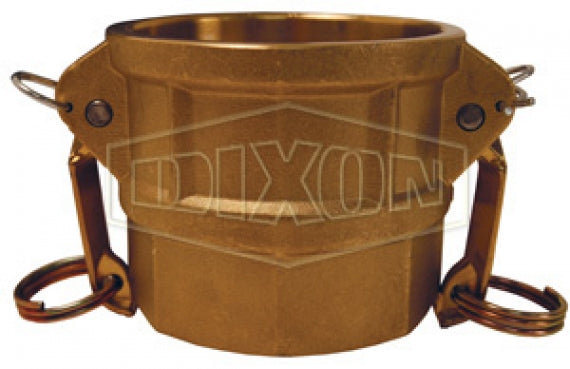

G150-DC-BR by Dixon Valve | Global Cam & Groove Dust Cap | Type DC | 1-1/2" Body Size | ASTMC38000 Forged Brass

G150-DC-BR by Dixon Valve | Global Cam & Groove Dust Cap | Type DC | 1-1/2" Body Size | ASTMC38000 Forged Brass

Sale price$41.76

Dixon Valve
Global Cam & Groove | Type DC Dust Cap

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
10–39 $39.25
40–79 $35.50
80+ $31.32
Discounts applied in cart/checkout.

Product Data:

Cam & Groove Type:

Type DC

Ends Configuration:
  • 1-1/2in Female Cam & Groove
Material(s):
  • Brass
Construction:
  • Nitrile Rubber Seals.
Safety Notes:
  • Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons.
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed.
  • No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with Dixon, Boss-Lock, or other manufacturers' products.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Interchanges with all products produced to A-A-59326D.
A380 Permanent
Mold Aluminum
with Brass Handles
Part Number		 ASTMC38000
Forged Brass
Part Number		 316 Investment Cast
Stainless Steel
Part Number		 A380 Permanent
Mold Aluminum
with Investment
Stainless Handles
Part Number		 Size
G50-DC-AL*,** G50-DC-BR*,** G50-DC-SS* - 1/2"
G75-DC-AL** G75-DC-BR** G75-DC-SS - 3/4"
G100-DC-AL** G100-DC-BR** G100-DC-SS - 1"
G125-DC-AL G125-DC-BR G125-DC-SS - 1-1/4"
G150-DC-AL G150-DC-BR G150-DC-SS G150-DC-ALSI 1-1/2"
G200-DC-AL G200-DC-BR G200-DC-SS G200-DC-ALSI 2"
G250-DC-AL G250-DC-BR G250-DC-SS - 2-1/2"
G300-DC-AL G300-DC-BR G300-DC-SS G300-DC-ALSI 3"
G400-DC-AL G400-DC-BR G400-DC-SS G400-DC-ALSI 4"
G500-DC-AL* G500-DC-BR* - - 5"
G600-DC-AL - G600-DC-SS - 6"

* No standard exists for the 1/2", 5", and 8", and generally these sizes do not interchange with other manufacturers' products.

** Supplied with stainless steel handles.
