1.5-Flex-Vest-12 by Flexaust | #3050150012 | Flex-Vest | Air Duct Hose | 1.5 inch | 12ft

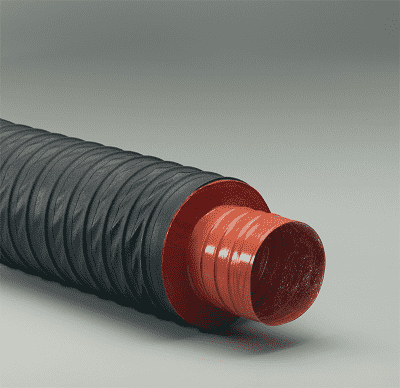

Flexaust Heat-Flex Flex-Vest Air Duct Hose
Inner Layer; Double-ply iron oxide red silicone coated fiberglass fabric hose reinforced with a spring steel wire helix, Outer layer; Single-ply black neoprene coated polyester fabric hose reinforced with a spring steel wire helix
Package Quantity: 12 FT
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
MAWP:
30
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Applications: | Aerospace | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | Double-ply iron oxide red silicone coated fiberglass fabric. |
| Reinforcement: | Inner Layer; Spring steel wire helix. Outer layer; Spring steel wire helix. | Cover: | Single-ply black neoprene coated polyester fabric. |
| Temperature Range: | -65 deg. F to 550 deg. F inner layer intermittent to 600 deg. F -40 deg. F to 250 deg. F outer layer | Crimp Fittings: | N/A |
| Reusable Fittings: | N/A | ||
| Other Features: | |||
|
|||
| Part Number 12 ft Reels | Inside Diameter | Wall Thickness (In) | Centerline Bend Radius (In) | Compression Ratio | Negative Pressure (In/Hg) | Working Pressure (PSI) | Weight - 12ft (Lbs/Ft) |
|---|---|---|---|---|---|---|---|
| Flex-Vest 1in | 1" | N/A | 2" | 2.5:1 | 29 | 30 | 6 lbs |
| Flex-Vest 1.5in | 1.5" | N/A | 2.5" | 2.5:1 | 29 | 30 | 7.2 lbs |
| Flex-Vest 2in | 2" | N/A | 3" | 2.5:1 | 29 | 30 | 9.6 lbs |
| Flex-Vest 2.5in | 2.5" | N/A | 3.5" | 2.5:1 | 29 | 30 | 10.8 lbs |
| Flex-Vest 3in | 3" | N/A | 4" | 2.5:1 | 29 | 30 | 12 lbs |
| Flex-Vest 4in | 4" | N/A | 4.5" | 2:1 | 27 | 30 | 14.4 lbs |
| Flex-Vest 6in | 6" | N/A | 5.5" | 2:1 | 9 | 19 | 19.2 lbs |
Technical data based on 2 ft. straight lengths of hose @ 72 deg.
