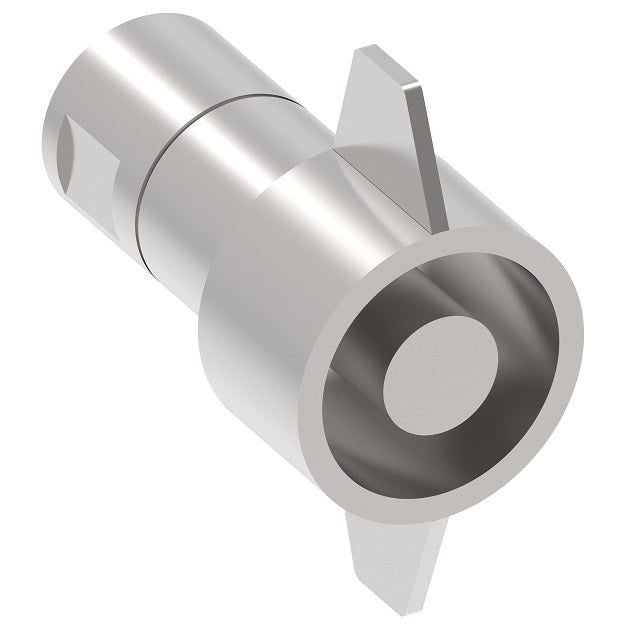

Hansen® by Danfoss
FD86 Series | Thread to Connect 5,000 psi Dry Break - High Impulse

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen FD86 Series is a thread together steel quick coupling offering dry break and high impulse technology and capabilities.

The maximum operating pressure is 5,000 psi.

Product Data:

Brand:
  • Hansen
Series:
  • FD86 Series
Shape:

Straight
Product Features:
  • Tubular valve and sleeve construction for low fluid loss and air inclusion.
  • Thread together design using wing or hex nut allows connection and disconnection against pressures up to 750 psi.
  • Teflon back-up rings along with secondary metal-tometal sealing contact provides high impulse capability up to 5,000 psi operating pressure.
  • Acme threads prevent galling and provide ease of connection.
Applications & Markets:
  • Hydraulic and Fluid Transfer
  • Mining Equipment
Materials:
  • Standard body material: High resistance carbon steel with zinc trivalent plating.
  • Standard seal materials: Nitrile (NBR) & FKM.
Body Size Max. Operating Pressure Min. Burst Pressure Vacuum
Connected Only		 Rated Flow Air Inclusion Fluid Loss
1" 345 bar 5,000 psi 1,034 bar 15,000 psi 28 in.Hg 189 lmp 50 gpm 2.90 cc max 0.72 cc max
1-1/4" 345 bar 5,000 psi 1,034 bar 15,000 psi 28 in.Hg 284 lmp 75 gpm 4.61 cc max 1.00 cc max
Plug/Male (Figure 1)
Socket/Female

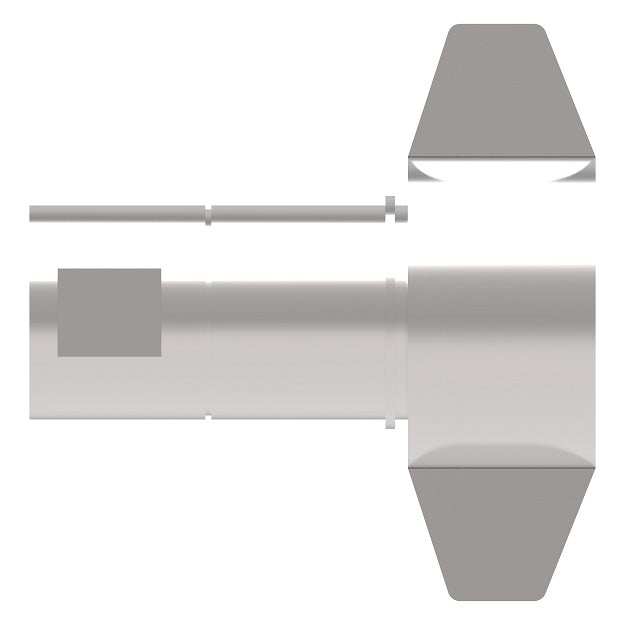

Wing Nut Style (Figure 2)
Socket/Female
Hex Nut Style (Figure 3)
Dimensions (Female NPT)
Part Number Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Figure Dimensions
NBR FKM A B Hex
FD86-1002-16-16 FD86-1040-16-16 Plug/Male 1" 1-11-1/2 1-11-1/2 Female NPT 1 4.40"
(111.8mm)		 2.11"
(53.6mm)		 1.75"
(44.5mm)
FD86-1001-16-16 FD86-1039-16-16 Socket/Female 1" 1-11-1/2 1-11-1/2 Female NPT 2 4.98"
(126.5mm)		 4.50"
(114.3mm)		 -
FD86-1004-16-16 - Socket/Female 1" 1-11-1/2 1-11-1/2 Female NPT 3 4.98"
(126.5mm)		 2.81"
(71.4mm)		 1.62"
(15.8mm)
FD86-1002-20-20 - Plug/Male 1-1/4" 1-1/4-11-1/2 1-1/4-11-1/2 Female NPT 1 4.43"
(112.5mm)		 2.48"
(63.0mm)		 2.25"
(57.2mm)
FD86-1001-20-20 - Socket/Female 1-1/4" 1-1/4-11-1/2 1-1/4-11-1/2 Female NPT 2 5.62"
(142.8mm)		 5.25"
(133.4mm)		 -
FD86-1004-20-20 - Socket/Female 1-1/4" 1-1/4-11-1/2 1-1/4-11-1/2 Female NPT 3 5.62"
(142.8mm)		 3.40"
(86.4mm)		 2.00"
(50.8mm)
