FC839B-12 Aeroquip by Danfoss | BRUISER Ultra-Abrasion Resistant 3000 PSI Constant Pressure Double Wire Braid Hydraulic Hose | SAE 100R17 | 0.75" ID
Minimum Order Quantity: 250 Units
Aeroquip® by Danfoss

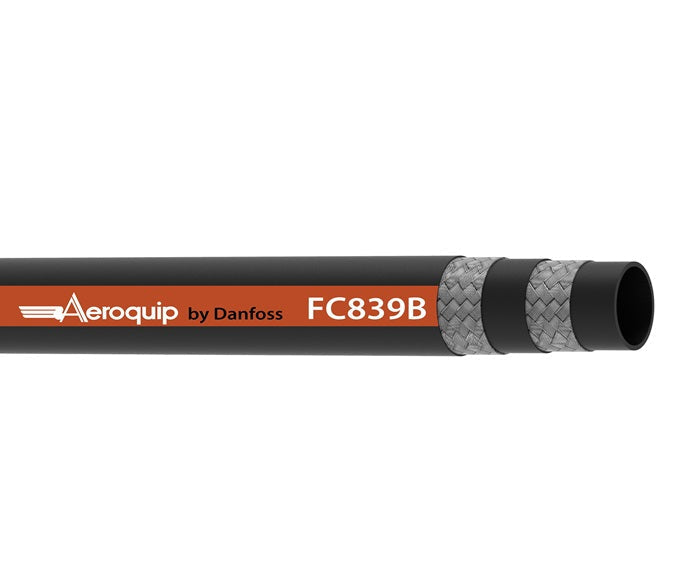

FC839B Series | BRUISER Ultra-Abrasion Resistant 3000 PSI Constant Pressure Single Wire Braid Hydraulic Hose
Recommended for use on critical applications in construction, forestry, and other off-highway vehicles. BRUISER™ outer cover offers unmatched abrasion, chemical, and environmental protection.
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $19.31 |
| 40–79 | $17.46 |
| 80+ | $15.41 |
Product Data:
3050
| Hose Properties: | |||
|---|---|---|---|
| Application: | High abrasion industrial and hydraulic system applications with petroleum and water-based fluids. | SAE Rating: | Meets SAE 100R17 performance, ISO 18752. |
| Other Ratings: | N/A | Tube: | Synthetic Rubber |
| Reinforcement: | One or Two Layers of Braided Wire | Cover: | Synthetic Rubber Intermediate Cover and BRUISER™ Outer Cover |
| Temperature Range: | -40°F to +212°F (-40°C to +100°C) |
||
| Part Number | Hose ID | Nominal Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | |
| FC839B-04 | 6 | 6,4mm | 0.25" | 12,7mm | 0.50" | 210 bar | 3,050 psi | 840 bar | 12,200 psi | 50,0mm | 1.97" | 0,22 kg/m | 0.15 lbs/ft |
| FC839B-06 | 10 | 9,7mm | 0.38" | 16,6mm | 0.65" | 210 bar | 3,050 psi | 840 bar | 12,200 psi | 65,0mm | 2.56" | 0,34 kg/m | 0.23 lbs/ft |
| FC839B-08 | 12 | 12,7mm | 0.50" | 20,8mm | 0.82" | 210 bar | 3,050 psi | 840 bar | 12,200 psi | 90,0mm | 3.54" | 0,48 kg/m | 0.32 lbs/ft |
| FC839B-10** | 16 | 15,9mm | 0.62" | 24,9mm | 0.98" | 210 bar | 3,050 psi | 840 bar | 12,200 psi | 100,0mm | 3.94" | 0,71 kg/m | 0.48 lbs/ft |
| FC839B-12** | 19 | 19,0mm | 0.75" | 28,4mm | 1.12" | 210 bar | 3,050 psi | 840 bar | 12,200 psi | 120,0mm | 4.72" | 0,89 kg/m | 0.60 lbs/ft |
| FC839B-16** | 25 | 25,4mm | 1.00" | 37,1mm | 1.46" | 210 bar | 3,050 psi | 840 bar | 12,200 psi | 150,0mm | 5.91" | 1,43 kg/m | 0.96 lbs/ft |
** Two braids of high tensile wire.
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
