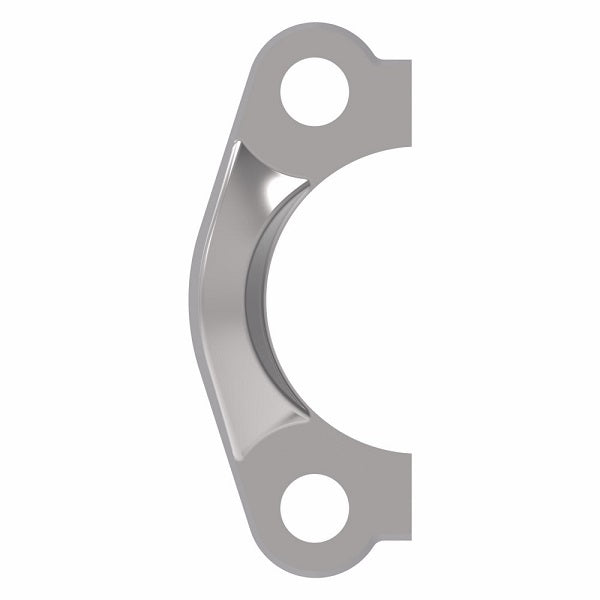

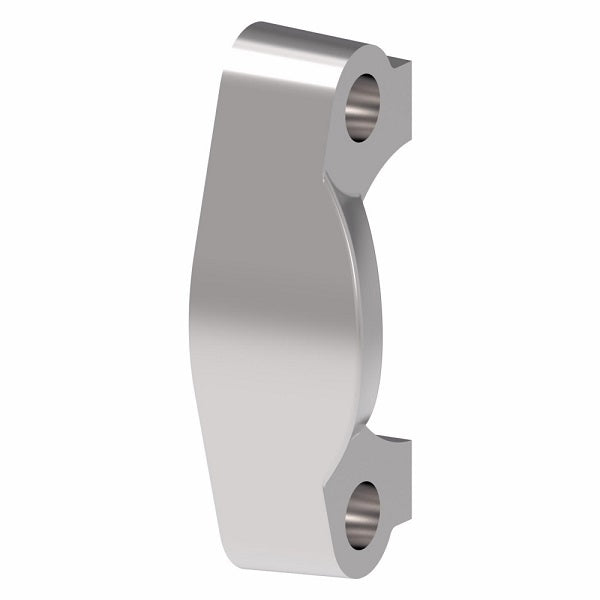

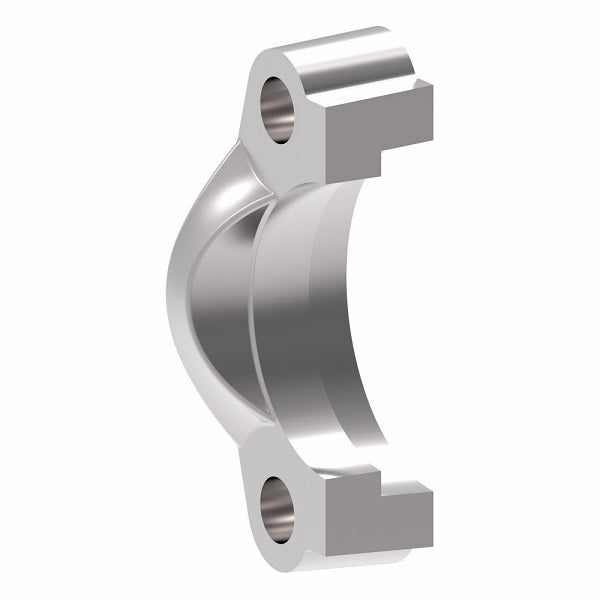

FC3425-16-449 Aeroquip by Danfoss | Code 62 Split Flange Half (1 Flange Half) | for 1" Flange Size | Steel
FC3425-16-449 Aeroquip by Danfoss | Code 62 Split Flange Half (1 Flange Half) | for 1" Flange Size | Steel
FC3425-16-449 Aeroquip by Danfoss | Code 62 Split Flange Half (1 Flange Half) | for 1" Flange Size | Steel

FC3425-16-449 Aeroquip by Danfoss | Code 62 Split Flange Half (1 Flange Half) | for 1" Flange Size | Steel

Sale price$20.41

Aeroquip® by Danfoss
Flange Halves for SAE Code 62 Split Flange Kit (SAE J518)

Important: 2 flange halves are required for a complete assembly.
Flange halves are not sold as a pair. If you require 2 halves, set the quantity below, to 2.

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $19.19
40–79 $17.35
80+ $15.31
Discounts applied in cart/checkout.

Product Data:

Shape:

No Orientation

Ends Configuration:
  • 1in Code 62 Flange
Material(s):
  • Steel
Technical Info:
Specifications:
  • Temperature range: -40°F to +250°F (-40°C to + 121°C)
Note:
  • Note: Code 62 split flange kits cannot be used with Cat flange fittings. Use existing split flanges.
Flange Halves
(2 required)
Part Number 		Nominal
Flange Size		 A B C Bolt torque
lb.-in
FC3425-12-449 3/4" 2.00" 0.94" 0.42" 300-400
FC3425-16-449 1" 2.25" 1.10" 0.50" 500-600
FC3425-20-449 1-1/4" 2.62" 1.24" 0.60" 750-900
FC3425-24-449 1-1/2" 3.12" 1.44" 0.66" 1400-1600
FC3425-32-449 2" 3.81" 1.76" 0.78" 2400-2600

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
