FA3501 by Fenner Drives | Powermax Flat Belt Idler | Belt Size: 5/8" | Bearing Type: 6203-2RS | Bore Size: 17mm | Crown: Yes
Fenner Drives - Powermax Pulleys & Idlers - Flat Belt Idlers
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $27.75 |
| 40–79 | $25.09 |
| 80+ | $22.14 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
| Overview: | |||
|---|---|---|---|
|
|||
| Description: | |||
|

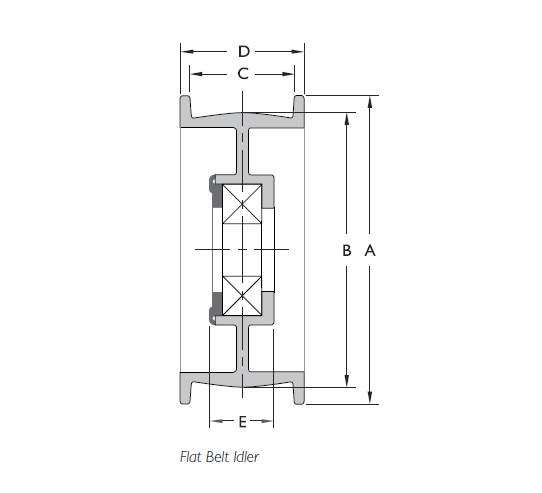

| Part Number | Type | Crown | A | B | C | D | E | Belt Size | Bearing Type | Bore Sizes |
|---|---|---|---|---|---|---|---|---|---|---|
| FA2001 | 1 | Yes | 2.07" | 1.88" | 1.37" | 1.54" | 0.47" | 1-1/8" | 6203-2RS | 17mm |
| FA2002 | 1 | Yes | 2.35" | 1.99" | 0.98" | 1.15" | 0.47" | 7/8" | 6203-2RS | 17mm |
| FA2003 | 1 | No | 2.76" | 1.94" | 0.82" | 1.15" | 0.75" | 5/8" | 6203-2RS | 17mm |
| FA2009* | 1 | No | - | 2" | - | 1" | 0.47" | 13/16" | 6203-2RS | 17mm |
| FA2010* | 1 | No | - | 1.98" | - | 0.75" | 0.47" | 5/8" | 6203-2DD | 17mm |
| FA2501 | 1 | No | 2.48" | 1.97" | 1.55" | 1.85" | 0.72" | 11/4" | 6203-2RS | 17mm |
| FA2700* | 1 | No | - | 2.71" | - | 1.05 | 0.67" | 7/8" | 6203-2RS | 17mm |
| FA2750 | 1 | Yes | 2.75" | 1.97" | 1.09" | 1.4" | 0.67" | 29/32" | 6203-2RS | 17mm |
| FA2751 | 1 | Yes | 2.75" | 2.52" | 1" | 1.22" | 0.8" | 13/16" | 6203-2RS | 17mm |
| FA2900* | 1 | Yes | - | 2.91 | - | 1.22" | 0.76" | 1" | 6203-2RS | 17mm |
| FA3002 | 1 | Yes | 3" | 2.5" | 1.02" | 1.31" | 0.76" | 7/8" | 6203-2RS | 17mm |
| FA3003* | 1 | No | - | 2.96" | -" | 1.09" | 0.76" | 29/32" | 6203-2RS | 17mm |
| FA3250* | 1 | No | - | 3.2" | - | 1.01" | 0.67" | 13/16" | 6203-2DD | 17mm |
| FA3251 | 1 | Yes | 3.24" | 2.97" | 1.04" | 1.2" | 0.67" | 7/8" | 6203-2DD | 17mm |
| FA3301 | 1 | Yes | 3.38 | 2.97" | 1.38" | 1.67" | 0.78" | 11/8" | 6203-2RS | 17mm |
| FA3501 | 1 | Yes | 3.5" | 3" | 0.77" | 1.09" | 0.76" | 5/8" | 6203-2RS | 17mm |
| FA3502 | 1 | Yes | 3.5" | 3" | 1" | 1.22" | 0.76" | 13/16" | 6203-2RS | 17mm |
| FA3504 | 1 | Yes | 3.48" | 2.98" | 0.69" | 0.9" | 0.76" | 1/2" | 6203-2RS | 17mm |
| FA3750 | 1 | Yes | 3.75" | 2.96" | 1.09" | 1.38" | 0.67" | 29/32" | 6203-2RS | 17mm |
| FA3751 | 1 | Yes | 3.8" | 3.25" | 1.03" | 1.24" | 0.67" | 7/8" | 6203-2RS | 17mm |
| FA4501 | 1 | Yes | 4.5" | 4" | 1.09" | 1.39" | 0.76" | 29/32" | 6203-2RS | 17mm |
| FA4502* | 1 | No | - | 4.5" | - | 1.21" | 0.82" | 1" | 6203-2RS | 17mm |
| FA4750 | 1 | Yes | 4.75" | 3.96" | 1.09" | 1.38" | 0.67" | 29/32" | 6203-2RS | 17mm |
| FA5501 | 1 | Yes | 5.56" | 5.03" | 1.02" | 1.29" | 0.72" | 7/8" | 6203-2RS | 17mm |
| FX0001 | 1 | Yes | 2.75" | 2.37" | 1.07" | 1.39" | - | 29/32" | 6205-2RS | 1" |
| FX0002* | 1 | Yes | - | 2.33" | - | 1.39" | - | 11/8" | 6205-2RS | 1" |
| F1B6280 | 2 | No | 6.28" | 6" | 1.22" | 1.63" | 1.63" | 1" | 6203-2RS | .510/.520 |
| F2B6280 | 2 | No | 6.28" | 6" | 2.1" | 2.5" | 2.5" | 2" | 6203-2RS | .510/.520 |
| F3B6280 | 2 | No | 6.28" | 6" | 2.91" | 3.31" | 3.31" | 2-3/4" | 6203-2RS | .510/.520 |
| F4B6280 | 2 | No | 6.28" | 6" | 3.85" | 4.25" | 4.25" | 3-3/4" | 6203-2RS | .510/.520 |
Insertion molded bearing
* Many idlers are, or can be, made into a driven pulley with a 5/8" or 3/4" bore
