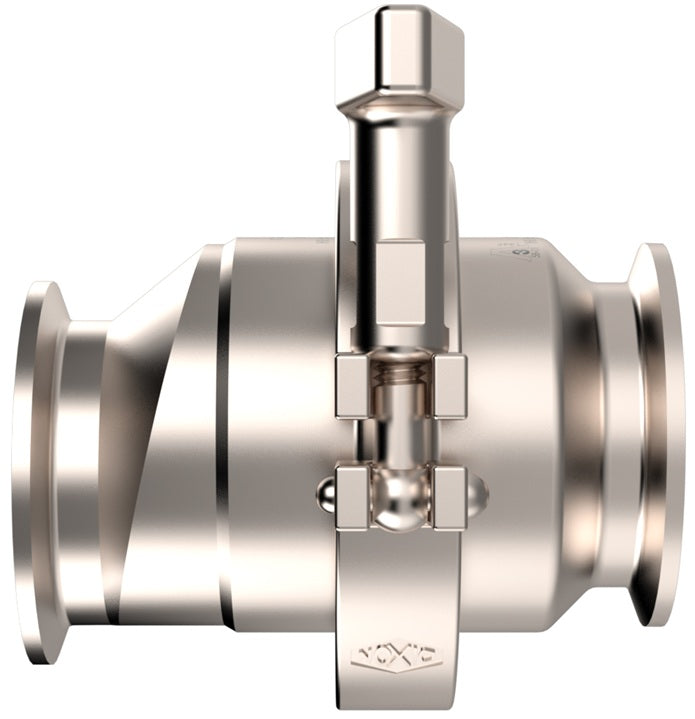

EHSCV300 Dixon Valve EHSC Spring Check Valve - 3" Clamp Connection - FKM Gasket - 316L Stainless Steel

EHSCV300 Dixon Valve EHSC Spring Check Valve - 3" Clamp Connection - FKM Gasket - 316L Stainless Steel

Sale price$535.37

Dixon Sanitary Fittings EHSC Spring Check Valve - Clamp Connection - 316L Stainless Steel

Designed to prevent reverse flow. The eccentric design makes them ideal for horizontal applications.
Buy More, Save More!
Quantity Price Each
5–14 $503.25
15–29 $455.06
30+ $401.53
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in Sanitary Clamp End
  • 3in Sanitary Clamp End
  • Some Ends Match
Material(s):
  • 316L Stainless Steel
Features:
  • Machined from solid bar
  • Standard O-ring (FKM) and gasket seal design
  • Can be serviced in field (no special tools required)
  • Finish: sanitary polish 32 Ra
  • Temperature Range: 15° F to 200° F
Part Number Size Cracking Pressure Max. Operating Pressure
EHSCV050 1/2" 10.0 PSI 145 PSI
EHSCV075 3/4" 4.0 PSI 145 PSI
EHSCV100 1" 2.5 PSI 145 PSI
EHSCV150 1-1/2" 1.0 PSI 145 PSI
EHSCV200 2" 1.5 PSI 145 PSI
EHSCV250 2-1/2" 0.8 PSI 145 PSI
EHSCV300 3" 0.5 PSI 145 PSI
EHSCV400 4" 0.4 PSI 145 PSI
