EC007-12 Aeroquip by Danfoss | E-Z Clip | EverCool Air Conditioning & Refrigeration Hose | SAE J3062 / J2064 Type C | 0.64" ID
Aeroquip® by Danfoss

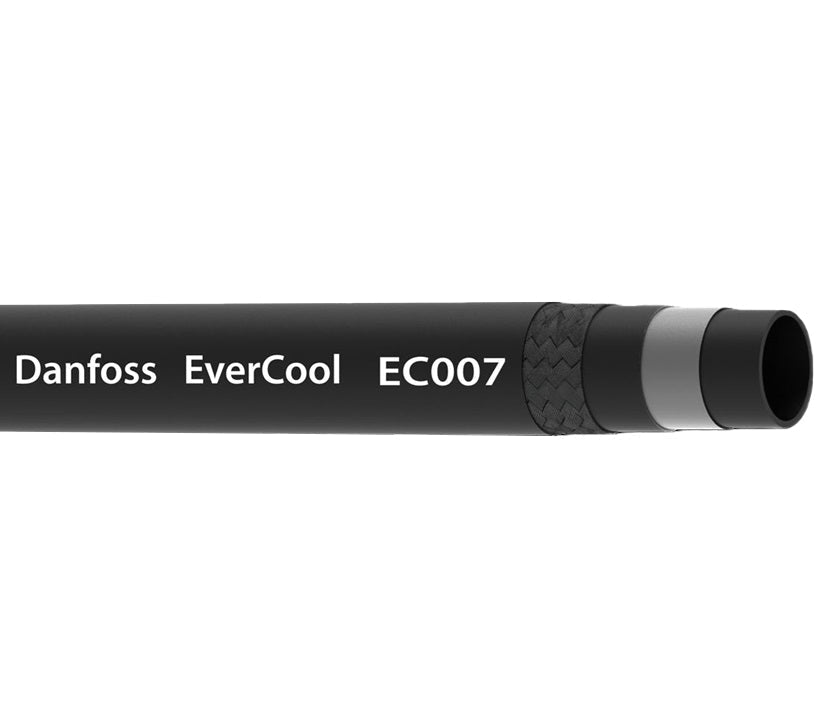

EC007 Series | EverCool | Air Conditioning & Refrigeration Hose
Purchased Lengths of hose will be multiple pieces unless Product Option or Title specifies Exact Length.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $6.07 |
| 40–79 | $5.49 |
| 80+ | $4.85 |
Product Data:
500
| Hose Properties: | |||
|---|---|---|---|
| Application: | Truck, bus, agricultural, and construction vehicles | SAE Rating: | Exceeds: SAE J3062 / J2064 Type C, Class 1 |
| Other Ratings: | Qualified with R134a, R1234yf, R407C, R513a, R404a and R452a Class 1 moisture ingression rating Oils: POE, PAG Moisture ingression <0.039 g/cm2/year according to SAE J3062, Class 1 |
||
| Cover: | Bromobutyl (BIIR) | Tube: | Chloroprene (CR) |
| Reinforcement: | 1 Textile Braid | Benefits: | Ozone and UV resistant. |
| Operating Parameters: | -4°F to +275°F (-40°C to +135°C) R1234yf effusion .65 kg/m2/yr at 80°C R134a effusion .8 kg/m2/yr at 80°C |
||
| Part Number | Hose ID | Hose OD | Max. Operating Pressure | Min. Burst Pressure | Min. Bend Radius | Weight | Vacuum service | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | mm | in | mm | in | bar | psi | bar | psi | mm | in | kg/m | lbs/ft | kPa | in/Hg | |
| EC007-06 | 8 | 8.10 mm | 0.32" | 15.20mm | 0.60" | 35 bar | 500 psi | 140 bar | 2000 psi | 50mm | 50" | 2.0 kg/m | 0.14 lbs/ft | 94,8 kPa | 28 in/Hg |
| EC007-08 | 10 | 10.70 mm | 0.42" | 17.80mm | 0.70" | 35 bar | 500 psi | 140 bar | 2000 psi | 64mm | 64" | 2.5 kg/m | 0.17 lbs/ft | 94,8 kPa | 28 in/Hg |
| EC007-10 | 12 | 12.90 mm | 0.51" | 19.90mm | 0.70" | 35 bar | 500 psi | 140 bar | 2000 psi | 76mm | 76" | 3.0 kg/m | 0.19 lbs/ft | 94,8 kPa | 28 in/Hg |
| EC007-12 | 16 | 16.30 mm | 0.64" | 24.10mm | 0.95" | 35 bar | 500 psi | 140 bar | 2000 psi | 102mm | 102" | 4.0 kg/m | 0.34 lbs/ft | 94,8 kPa | 28 in/Hg |
| EC007-14 | 18 | 18.80 mm | 0.74" | 28.40mm | 1.12" | 35 bar | 500 psi | 140 bar | 2000 psi | 127mm | 127" | 5.0 kg/m | 0.43 lbs/ft | 94,8 kPa | 28 in/Hg |
Bulk / By the Foot: We sell Danfoss hose in "Bulk Length" unless otherwise specified in the title or option selector as "Exact Length". When you buy "Bulk Length" hose you are agreeing to buy multiple lengths that add up to the length you purchased. If your length can be supplied as a single piece then it will be, but there can be no assurance of this even if you contact us. If you need a single piece then you can select an "Exact Length" option or Contact Us for a quote.
Warning! Danfoss hose and fittings are engineered to match Danfoss Aeroquip hose and fitting tolerances. The use of Danfoss fittings on hose supplied by other manufacturers may result in the production of unreliable and unsafe hose assemblies and is neither recommended or authorized by Danfoss Corporation, Murdock Industrial Inc., or any other entity. Consult current master catalog for additional warnings and cautions.
