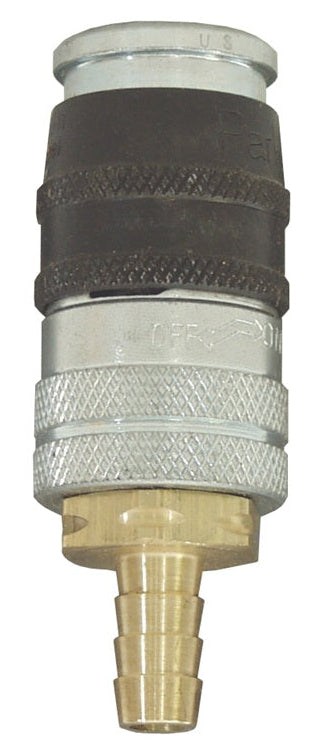

DC2644SE by Parker / Dixon Valve | Pneumatic E-Z-Mate Industrial Coupler/Socket | Hose Barb | 3/8" Hose ID x 3/8" Body Size | Steel

DC2644SE by Parker / Dixon Valve | Pneumatic E-Z-Mate Industrial Coupler/Socket | Hose Barb | 3/8" Hose ID x 3/8" Body Size | Steel

Sale price$90.31

Parker Ez-Mate Industrial Interchange Couplers Ez-Mate couplings combine push-to-connect, exhaust-style action with a self-locking valve sleeve to guard against accidental disconnection. Simply follow the direction of the on-off arrow stamped on the yellow chromate valve sleeve. Valve sleeve acts as an integral shut-off valve that allows connection and disconnection at zero pressure. When the sleeve is moved to shut off air flow, it automatically vents downstream allowing for disconnection at zero pressure and eliminating the risk of hose whip. On hose assemblies, pressure rating is the lower of either the rating of the coupling or the hose at 70 Deg. F
Buy More, Save More!
Quantity Price Each
5–19 $84.89
20–59 $76.76
60+ $67.73
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3/8in Female EZ-Mate QD Interchange
  • 3/8in Hose Barb
Material(s):
  • Steel
How It Works:
  • Simply follow the on-off arrow stamped on the yellow chromate valve sleeve. Valve sleeve acts as an integral shut-off valve that allows connection and disconnection at zero pressure. When the sleeve is moved to shut off air flow, it automatically vents downstream allowing for disconnection at zero pressure and eliminating the risk of hose whip.
Construction:
  • Steel with brass hose barb end.
Specifications:
  • Meets ISO 4414 requirements for a controlled pressure release system.
  • Pressure rating: 300 PSI.
  • Temperature range (standard seals): -40 °F to 250 °F (-40 °C to 121 °C).
Safety Notes:
  • Not recommended for vacuum service.
  • Operating pressure for couplings utilizing hose barb connections may be dramatically reduced to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
  • Dixon cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death.
Steel
Part Number		 Body Size Hose ID Flow Rating
at 100 PSI
DC2042SE 1/4" 1/4" 37 CFM
DC2044SE 1/4" 3/8" 37 CFM
DC2644SE 3/8" 3/8" 70 CFM
DC1045SE 1/2" 1/2" 150 CFM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
