DA4040ATC by Jason Industrial | Tank Truck API Coupling | 4" API Female Coupler x 4" Male Adapter | Aluminum
Jason Industrial Inc

DA4040ATC by Jason Industrial | Tank Truck API Coupling | 4" API Female Coupler x 4" Male Adapter | Aluminum

Sale price$171.46

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Tank Truck API Adapters, Caps, Couplers & Gaskets - Aluminum

Product Data:

Shape:

45 Degree

Material(s):
  • Aluminum
  • Brass
Seal Material(s):
  • Buna-N/Nitrile Rubber
Applications:
  • For offloading through the API adapter and coupler.
Material Specs:
  • Aluminum alloy spec ASTM B85 Grade 383.
  • Black Schedule 80 polypropylene body. (Polypropylene couplers only)
  • Brass handles.
  • Steel handle pins, pull rings and safety clips are all zinc-plated.
  • Gasket: NBR
Other Components:
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Description Max. Working Pressure* PSI
Dust Cap Used to protect the face of poppet side of the API adapter. Comes with a nitrile gasket. Suitable for all API valves that meet API RP-1004 specs.
DC400ATC 4" API Dust Cap - Aluminum 100 PSI
DC400PPTC 4" API Dust Cap - Polypropylene 100 PSI

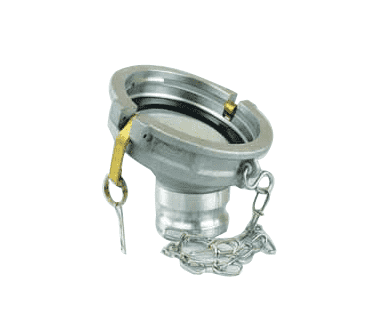

Coupler x Adapter Used in the process of unloading in order to connect the 4" API adapter to the 3" or 4" hose connection. Used primarily in gravity flow applications. Mates with 4" API RP-1004 tank truck adapters. Adapter comes with aluminum body and nitrile gasket. Angled down for better drainage.
DA4030ATC 4" API Coupler x 3" Adapter - Aluminum 100 PSI
DA4040ATC 4" API Coupler x 4" Adapter - Aluminum 100 PSI
Coupler x Coupler This gravity drop coupler is designed to use gravity for quick and complete off-loading. Mates with all API RP-1004 bottom loading adapters. This coupler has an aluminum body and nitrile gaskets. Angled down for better drainage.
DD4040ATC 4" API Coupler x 4" Coupler - Aluminum 100 PSI
Replacement Gasket
G400NBRTC Gasket for 4" API Coupler - Nitrile N/A
* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
