CS31-4X4 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 9/16x18 Thread O-Ring Face Seal | ORF Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 4L64V | Pack of 5
Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 45° Female Swivel
Package Quantity: 5 EA
Product Data:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Description: | |||
|---|---|---|---|
|

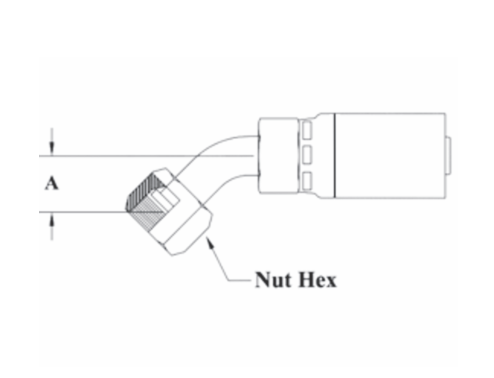

| Part Number | Hose ID | Thread Size | Tube OD | A-Drop Inches | Nut Hex | PreviousPart Number | Cross Reference Part Numbers | ||
|---|---|---|---|---|---|---|---|---|---|
| Dayco HY | Parker HY | Weatherhead U | |||||||
| CS31-4X4 | 1/4" | 9/16x18 | 1/4" | 0.41 | 11/16" | 4L64V | HY04-04OF45T | 1J7HY-4-4 | 04U-L64 |
| CS31-4X6 | 1/4" | 11/16x16 | 3/8" | 0.43 | 13/16" | 4L66V | HY04-06OF45T | 1J7HY-6-4 | 04U-L66 |
| CS31-6X6 | 3/8" | 11/16x16 | 3/8" | 0.43 | 13/16" | 6L66V | HY06-06OF45T | 1J7HY-6-6 | 06U-L66 |
| CS31-6X8 | 3/8" | 13/16x16 | 1/2" | 0.60 | 15/16" | 6L68V | HY06-08OF45T | 1J7HY-8-6 | 06U-L68 |
| CS31-8X6 | 1/2" | 11/16x16 | 3/8" | 0.43 | 13/16" | 8L66V | HY08-06OF45T | 1J7HY-6-8 | 08U-L66 |
| CS31-8X8 | 1/2" | 13/16x16 | 1/2" | 0.59 | 15/16" | 8L68V | HY08-08OF45T | 1J7HY-8-8 | 08U-L68 |
| CS31-8X10 | 1/2" | 1x14 | 5/8" | 0.68 | 1-1/8" | 8L70V | HY08-10OF45T | 1J7HY-10-8 | 08U-L70 |
| CS31-10X10 | 5/8" | 1x14 | 5/8" | 0.68 | 1-1/8" | 10L70V | HY10-10OF45T | 1J7HY-10-10 | 10U-L70 |
| CS31-10X12 | 5/8" | 1-3/16x12 | 3/4" | 0.83 | 1-3/8" | 10L72V | HY10-12OF45T | 1J7HY-12-10 | 10U-L72 |
| CS31-12X10 | 3/4" | 1x14 | 5/8" | 0.68 | 1-1/8" | 12L70V | HY12-10OF45T | 1J7HY-10-12 | 12U-L70 |
| CS31-12X12 | 3/4" | 1-3/16x12 | 3/4" | 0.83 | 1-3/8" | 12L72V | HY12-12OF45T | 1J7HY-12-12 | 12U-L72 |
| CS31-12X16 | 3/4" | 1-7/16x12 | 1" | 1.15 | 1-5/8" | 12L76V | - | - | 12U-L76 |
| CS31-16X16 | 1" | 1-7/16x12 | 1" | 1.15 | 1-5/8" | 16L76V | HY16-16OF45T | 1J7HY-16-16 | 16U-L76 |
| CS31-16X20 | 1" | 1-11/16x12 | 1-1/4" | 1.10 | 1-7/8" | 16L80V | - | - | - |
| CS31-20X20 | 1-1/4" | 1-11/16x12 | 1-1/4" | 1.07 | 1-7/8" | 20L80V | HY20-20OF45T | - | 20U-L80 |
The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
