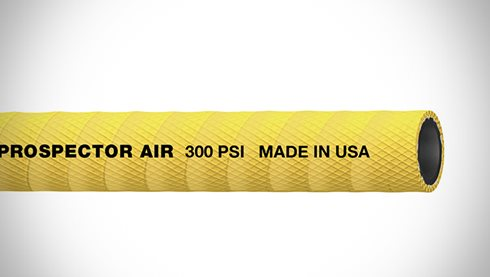

20070736 Prospector™ by ContiTech | Air Heavy Duty Air / Multipurpose Hose | Continental | 0.75" (3/4") ID | 300 PSI | Yellow | 50ft
Minimum Order Quantity: 50 Units
Continental ContiTech Prospector™ Plus Heavy Duty Air & Multipurpose Hose
A versatile, heavy-duty air hose for mining, construction and industrial applications.
Package Quantity: 50 FT
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $249.82 |
| 15–29 | $225.90 |
| 30+ | $199.33 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
300
Tubing Construction:
Cover Construction:
SPECIFICATIONS
| Application: | Mining, construction and industrial applications. | SAE Rating: | N/A |
|---|---|---|---|
| Other Ratings: | N/A | Tube: | 1/2" - 1": Black EPDM synthetic rubber, ARPM Class C (Limited Oil Resistance) 1-1/4" - 3": Black SBR synthetic rubber, ARPM Class C (Limited Oil Resistance) |
| Reinforcement: | 1/2"-1": One braided synthetic yarn 1-1/4"-3": Spiral-plied synthetic fabric |
Cover: | Yellow EPDM synthetic rubber (wrapped impression), ARPM Class C (Limited Oil Resistance) |
| Temperature Range: | -40°F to 220°F (-40°C to 104°C) | Fittings: | N/A |
| Branding: | 1" 24.4 mm Prospector™ Air 300 psi 2.1 MPa WP | ||
| Yellow Part Number |
Inside Diameter |
Nominal Outside Diameter |
Max. Working Pressure |
Length | Weight | Yellow Order Code |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in. | mm | PSI | MPa | lb./ft. | kg/m | |||
| 20070687 | 1/2" | 12.7mm | 0.89" | 22.6mm | 300 PSI | 2.07 MPa | 50ft | 0.24 lbs./ft. | 0.36 kg/m | 53650901605000 |
| 20070736 | 3/4" | 19.1mm | 1.19" | 30.2mm | 300 PSI | 2.07 MPa | 50ft | 0.37 lbs./ft. | 0.55 kg/m | 53650902405000 |
| 20070739 | 1" | 25.4mm | 1.49" | 37.9mm | 300 PSI | 2.07 MPa | 50ft | 0.53 lbs./ft. | 0.79 kg/m | 53650903205000 |
| 20020467 | 1-1/4" | 31.8mm | 1.66" | 42.2mm | 300 PSI | 2.07 MPa | 50ft | 0.58 lbs./ft. | 0.86 kg/m | 54994304000500 |
| 20020471 | 1-1/2" | 38.1mm | 2.01" | 51.1mm | 300 PSI | 2.07 MPa | 50ft | 0.83 lbs./ft. | 1.24 kg/m | 54994304800500 |
| 20020475 | 2" | 50.8mm | 2.57" | 65.3mm | 300 PSI | 2.07 MPa | 50ft | 1.20 lbs./ft. | 1.79 kg/m | 54994306400500 |
Hose design ratio (burst pressure) 4:1.
