20026290 Gorilla® by ContiTech | Air / Multipurpose Hose | Continental | 0.75" (3/4") ID | 500 PSI | Yellow | 500ft
ContiTech

20026290 Gorilla® by ContiTech | Air / Multipurpose Hose | Continental | 0.75" (3/4") ID | 500 PSI | Yellow | 500ft

Sale price$4,407.69

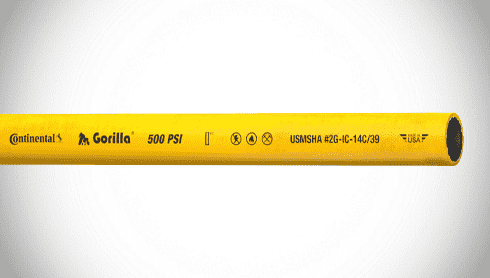

Continental ContiTech Gorilla® Air & Multipurpose Hose

A premium-quality, flame resistant, multipurpose industrial hose with a wide range of applications in factories, construction, agriculture, quarries, mines, railroads, the oil and gas industry and shipbuilding. All sizes are crush-resistant and rated at 500 psi (3.4 MPa) maximum working pressure. The premium Carbryn™ cover offers the most superior abrasion resistance of air and multipurpose hoses. Non-conductive, minimum electrical resistance greater than 1 megohm per inch of hose length at 1000 Volts DC.

Package Quantity: 500 FT

In stock

Product Data:

Brand:
  • Gorilla
Series:
  • Gorilla
Color(s):
  • Yellow

SPECIFICATIONS

Application: Factories, construction, agriculture, quarries, mines, railroads, oil and gas industry, shipbuilding. SAE Rating: N/A
Other Ratings: N/A Tube: Nitrile synthetic rubber, ARPM Class A (High Oil Resistance)
Reinforcement: Spiral aramid yarn, 2" is braided synthetic yarn Cover: Yellow Carbryn™ synthetic rubber, ARPM Class A (High Oil Resistance) MSHA approved
Temperature Range: -20°F to 210°F (-29°C to 99°C) Fittings: N/A
Branding: Example: Gorilla® by Continental ContiTech 1" (25.4 mm) 500 psi Made in USA Flame Resistant USMSHA No. 2G-IC-14C/39
Part Number Inside
Diameter		 Nominal Outside
Diameter		 Max. Working
Pressure		 Couplings Length Weight Order Code
in. mm in. mm PSI MPa lb./ft. kg/m
20026239 1/4" 6.4mm 0.61" 15.5mm 500 PSI 3.45 MPa - 500ft 0.17 lbs./ft. 0.25 kg/m 56903506400200
20026256 3/8" 9.5mm 0.73" 18.6mm 500 PSI 3.45 MPa - 500ft 0.22 lbs./ft. 0.33 kg/m 56903509500200
20026273 1/2" 12.7mm 0.89" 22.6mm 500 PSI 3.45 MPa - 500ft 0.28 lbs./ft. 0.42 kg/m 56903512700200
20026289 5/8" 15.9mm 1.06" 26.9mm 500 PSI 3.45 MPa - 500ft 0.35 lbs./ft. 0.52 kg/m 56903515900200
20026290 3/4" 19.1mm 1.19" 30.2mm 500 PSI 3.45 MPa - 500ft 0.41 lbs./ft. 0.61 kg/m 56903519100200
20026304 1" 25.4mm 1.50" 37.8mm 500 PSI 3.45 MPa - 450ft 0.58 lbs./ft. 0.86 kg/m 56903525400200
20026306 1-1/4" 31.8mm 1.77" 45.6mm 500 PSI 3.45 MPa - 400ft 0.79 lbs./ft. 1.18 kg/m 56903531800200
20026309 1-1/2" 38.1mm 2.04" 51.8mm 500 PSI 3.45 MPa - 300ft 0.86 lbs./ft. 1.27 kg/m 56903538100200
20305356 1-1/2" 38.1mm 2.04" 51.8mm 500 PSI 3.45 MPa - 50ft 0.86 lbs./ft. 1.27 kg/m 53644606405000
20023183 2" 50.8mm 2.62" 6.66mm 500 PSI 3.45 MPa - 100ft 1.22 lbs./ft. 1.82 kg/m 53644606410000
Coupled Lengths
20129563 1/4" 6.4mm 0.61" 15.5mm 500 PSI 3.45 MPa 1/4" Male NPT x 1/4" Male NPT 25ft 0.17 lbs./ft. 0.25 kg/m 56903506412501
20132763 1/4" 6.4mm 0.61" 15.5mm 500 PSI 3.45 MPa 1/4" Male NPT x 1/4" Male NPT 50ft 0.17 lbs./ft. 0.25 kg/m 56903506453301
20129566 3/8" 9.5mm 0.73" 18.6mm 500 PSI 3.45 MPa 3/8" Male NPT x 3/8" Male NPT 25ft 0.22 lbs./ft. 0.33 kg/m 56903509512501
20132764 3/8" 9.5mm 0.73" 18.6mm 500 PSI 3.45 MPa 3/8" Male NPT x 3/8" Male NPT 50ft 0.22 lbs./ft. 0.33 kg/m 56903509553301
20129569 1/2" 12.7mm 0.89" 22.6mm 500 PSI 3.45 MPa 1/2" Male NPT x 1/2" Male NPT 25ft 0.28 lbs./ft. 0.42 kg/m 56903512712501
20132766 1/2" 12.7mm 0.89" 22.6mm 500 PSI 3.45 MPa 1/2" Male NPT x 1/2" Male NPT 50ft 0.28 lbs./ft. 0.42 kg/m 56903512753301
20129582 3/4" 19.1mm 1.19" 30.2mm 500 PSI 3.45 MPa 3/4" Male NPT x 3/4" Male NPT 50ft 0.41 lbs./ft. 0.61 kg/m 56903519115001

Hose design ratio (burst pressure) 4:1.

Continental ContiTech

ContiTech specializes in the engineering and distribution of innovative, reliable and high-performance industrial hose products for a vast array of industrial, commercial and residential applications. They are used in machine and plant engineering, mining, agriculture, the automotive industry, and other important sectors of the future.
