CAT45-24-24-JJ by Kurt Hydraulics | Ultra High Pressure Skive Style | CAT Flange | 45° Elbow | for 1-1/2" Hose ID

Sale price$139.47

by Kurt Hydraulics
CAT45-JJ - Cat Flange 45 deg. Bent Tube Rigid - Ultra High Pressure Skive Style

Kurt Fittings and Hose should only be used together.

Product Data:

Series:
  • CAT45 Series
Shape:

45 Degree

Ends Configuration:
  • 1-1/2in Hose Barb
  • 1-1/2in Cat Flange

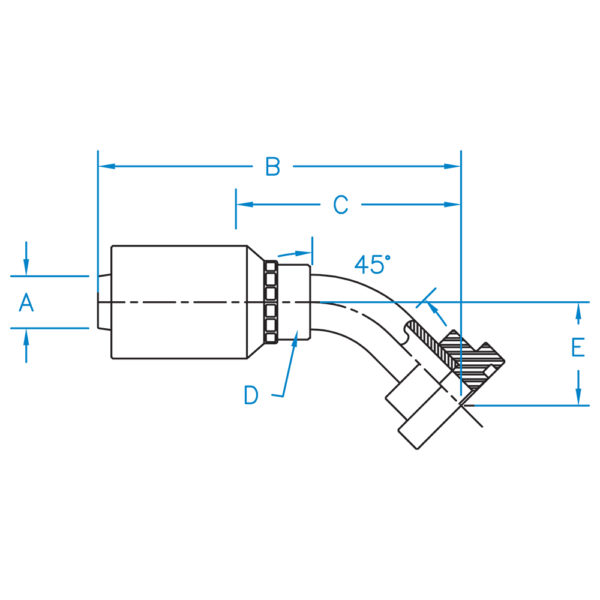

Part Number A B C D E Hose ID
(In)		 Thread
CAT45-20-20-JJ 1.250 6.13 3.53 1-3/4R 1.46 1-1/4" N/A
CAT45-20-24-JJ 1.250 6.435 3.835 1-3/4R 1.568 1-1/4" N/A
CAT45-24-24-JJ 1.500 7.71 5 2-1/8R 1.568 1-1/2" N/A
CAT45-32-32-JJ N/A N/A N/A N/A N/A N/A N/A

Kurt Hydraulics

Kurt Hydraulics has been a U.S. manufacturer of hydraulic couplings and
systems for over 35 years. We offer a full line of hydraulic couplings and a complete line of high quality hydraulic hose tested beyond SAE specifications. Kurt Hydraulics’ hose and couplings are sold through a comprehensive network of distributors in North America.
