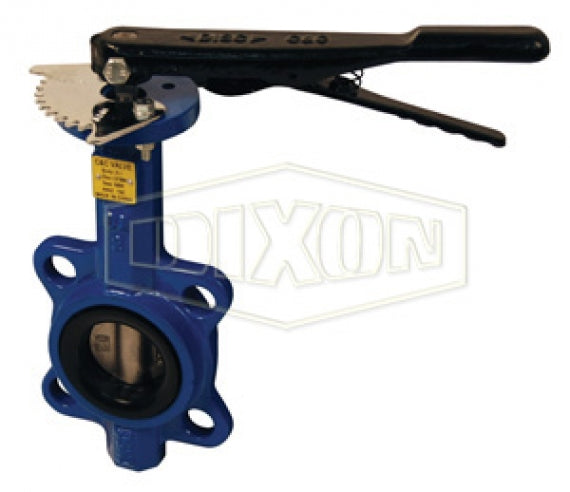

BFVW300 by Dixon Valve | Butterfly Valve | Wafer Style | 3" 150# Flange | Nitrile Rubber Liner | Stainless Disc | Ductile Iron

BFVW300 by Dixon Valve | Butterfly Valve | Wafer Style | 3" 150# Flange | Nitrile Rubber Liner | Stainless Disc | Ductile Iron

Sale price$159.54

Dixon Valve & Coupling
Ductile Iron Butterfly Valve | Wafer Style

For use between two 150 lb. flanges.
Buy More, Save More!
Quantity Price Each
5–19 $149.97
20–59 $135.61
60+ $119.66
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 3in 150# Flange
  • 3in 150# Flange
  • Some Ends Match
Material(s):
  • Ductile Iron
Features:
  • 10 position trigger grip handle.
Materials:
  • Ductile iron body, ASTM A536.
  • Stainless steel disc, ASTM A351, GR. CF-8M.
  • Nitrile rubber seal and stem seals.
  • PTFE bushing.
  • Stainless steel top and bottom stems.
Specifications:
  • Pressure rating: 200 PSI at ambient temperature 70°F (21°C)
Warning:
  • Not Recommended For Steam Service.
Part Number
Valve with
Nitrile Rubber Liner		 Size
BFVW200 2"
BFVW300 3"
BFVW400 4"
BFVW600 6"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
