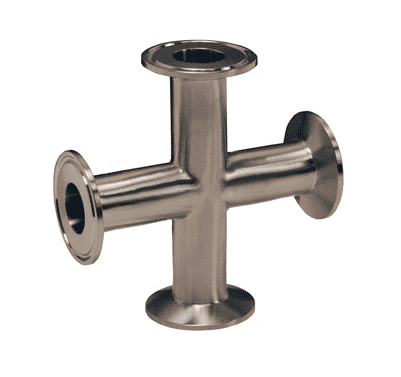

B9MP-R100 Dixon Valve 316L Stainless Steel Sanitary Clamp Cross - 1" Tube OD
Dixon Sanitary Fittings Sanitary Clamp Cross
3-A Sanitary Standards for Sanitary Fittings, Number 63-03 (Authorization number 621).
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $76.28 |
| 20–59 | $68.98 |
| 60+ | $60.86 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Cross
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
| Part Number | Tube OD | Dimensions
|
Weight (Lbs.) | ||
|---|---|---|---|---|---|
| A | OD | ID | |||
| 304 Stainless Steel | |||||
| B9MP-G100 | 1" | 4.75" | 1.00" | 0.87" | 0.9025 |
| B9MP-G150 | 1-1/2" | 5.50" | 1.50" | 1.37" | 0.9200 |
| B9MP-G200 | 2" | 7.00" | 2.00" | 1.87" | 1.5000 |
| B9MP-G250 | 2-1/2" | 7.00" | 2.50" | 2.37" | 1.9250 |
| B9MP-G300 | 3" | 7.50" | 3.00" | 2.87" | 2.1750 |
| B9MP-G400 | 4" | 9.00" | 4.00" | 3.83" | 3.0000 |
| B9MP-G600 | 6" | - | - | - | 5.0000 |
| 316L Stainless Steel | |||||
| B9MP-R100 | 1" | 4.75" | 1.00" | 0.87" | 0.8810 |
| B9MP-R150 | 1-1/2" | 5.50" | 1.50" | 1.37" | 0.9590 |
| B9MP-R200 | 2" | 7.00" | 2.00" | 1.87" | 1.5800 |
| B9MP-R250 | 2-1/2" | 7.00" | 2.50" | 2.37" | 1.5250 |
| B9MP-R300 | 3" | 7.50" | 3.00" | 2.87" | 2.3050 |
| B9MP-R400 | 4" | 9.00" | 4.00" | 3.83" | 4.4300 |
