| Features: |

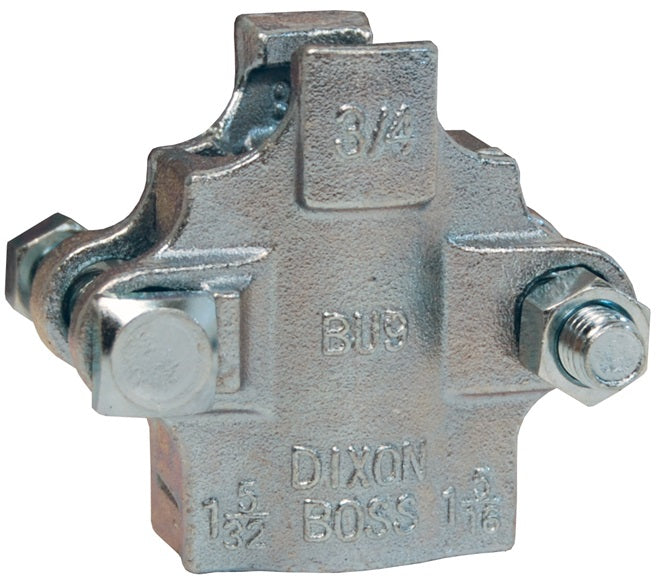

- 2-Bolt type clamp.
- 2 Gripping fingers.
- 2 Clamp sections.
|
| Use: |
- The correct size Boss Clamp must be used.
- Bolts in Boss Clamps are designed to bend as they are tightened. This allows the clamp to conform to the hose outside diameter.
- Always tighten bolts to their specified torque value.
- Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses.
- Boss Clamps are for single use only! Once removed they are to be discarded.
|
| Specifications: |
- Recommended for steam service up to 450°F (232°C).
|
| Instructions: |
- 2 Bolt Boss Clamp Bolt Tightening Sequence, Using a torque wrench, begin tightening the bolts as follows:
A) First bolt (nut facing assembler) 1 full turn.
B) Second bolt (opposite first bolt) 1 full turn.
C) Repeat procedure "a" and "b" until both bolts have reached the recommended torque.
D) Remove assembly from vise.
|
| Safety Notes: |
- The bolts used in the Boss interlocking clamps are not standard bolts. They vary from standard bolts in their length, diameter, overall thread length and
material hardness. These bolts can be retorqued, but it is not recommended that the bolts or clamps be reused, as they are designed for a single bend only.
Dixon Recommends using only factory supplied replacement bolts. Replacement nuts and bolts are available, contact Dixon for more information.
- Torque values for clamps are based on dry bolts. The use of lubricant on bolts will adversely effect clamp performance. Do not lubricate nuts and bolts. Recommended torque rating in ft. lbs.
- Worn-out hose couplings can be dangerous. They should be checked regularly and replace when necessary. Each coupling user should review applications and add safety devices where indicated.
- Note. Pressurized steam is an extremely dangerous commodity. Only hose, fittings, clamps and accessory items that have been approved for steam service
should ever be used! Never use an unapproved item for steam service. Always follow the manufacturer's product recommendations for pressurized steam handling.
|
Zinc Plated Iron
Part Number |
Stainless Steel****
Part Number |
Brass
Part Number |
Hose I.D. |
Hose O.D. |
Torque ft.lbs.** |
| from |
to |
| BD*** |
- |
- |
1/4" |
36/64" |
42/64" |
6 ft lbs |
| CD*** |
- |
- |
3/8" |
44/64" |
56/64" |
6 ft lbs |
| DD*** |
- |
- |
1/2" |
52/64" |
60/64" |
6 ft lbs |
| B4*** |
RB4 |
BB4 |
1/2" |
60/64" |
1-4/64" |
12 ft lbs
10 ft lbs (for Brass) |
| B5 |
- |
- |
1/2" |
1-4/64" |
1-12/64" |
12 ft lbs |
| BU9*** |
RBU9 |
BBU9 |
3/4" |
1-10/64" |
1-20/64 |
21 ft lbs
18 ft lbs (for Brass) |
| B9 |
RB9 |
- |
3/4" |
1-20/64" |
1-32/64 |
21 ft lbs |
| B10*** |
- |
- |
3/4" |
1-32/64" |
1-44/64 |
21 ft lbs |
** Torque applies to plated iron and stainless steel clamps
*** Global investment cast carbon steel
**** When installing stainless steel bolts and nuts, the use of anti-seize or anti-galling lubricant
is advised. A light coat is required on the bolt threads to prevent thread galling and artificial
torque reading.
