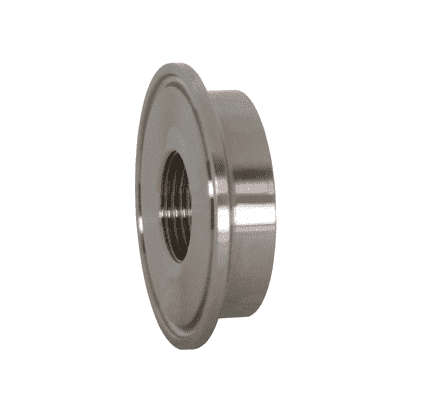

B23BMP-G100 Dixon Valve 304 Stainless Steel Sanitary Thermometer Cap - 1" Tube OD - 1/2" NPT Tap Size
Dixon Sanitary Fittings Sanitary Clamp Fitting Cap - Thermometer Cap
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $17.09 |
| 40–79 | $15.45 |
| 80+ | $13.64 |
Discounts applied in cart/checkout.
Product Data:
Ends Configuration:
Material(s):
| Material: | |||
|---|---|---|---|
|
| Part Number | Tube OD | Tap Size | Dimensions  |
Weight(Lbs.) | |||
|---|---|---|---|---|---|---|---|
| A | B | C | D | ||||
| B23BMP-G100 | 1" | 1/2" NPT | 1.99" | 1.50" | 0.63" | 1/2" | 0.2800 |
| B23BMP-G10025 | 1" | 1/4" NPT | - | - | - | 1/4" | 0.1000 |
| B23BMP-G10075 | 1" | 3/4" NPT | - | - | - | 3/4" | - |
| B23BMP-G150 | 1-1/2" | 3/4" NPT | 1.99" | 1.50" | 0.63" | 3/4" | 0.2300 |
| B23BMP-G15025 | 1-1/2" | 1/4" NPT | - | - | - | 1/4" | 0.3900 |
| B23BMP-G150375 | 1-1/2" | 3/8" NPT | - | - | - | 3/4" | 0.1000 |
| B23BMP-G15050 | 1-1/2" | 1/2" NPT | - | - | - | 1/2" | - |
| B23BMP-G200 | 2" | 3/4" NPT | 2.52" | 2.00" | 0.63" | 3/4" | 0.5000 |
| B23BMP-G20025 | 2" | 1/4" NPT | - | - | - | 1/4" | 0.7210 |
| B23BMP-G200375 | 2" | 3/8" NPT | - | - | - | 3/8" | 0.6650 |
| B23BMP-G20050 | 2" | 1/2" NPT | - | - | - | 1/2" | 0.4950 |
| B23BMP-G250 | 1-1/2" | 3/4" NPT | 3.05" | 2.50" | 0.63" | 3/4" | 0.8500 |
| B23BMP-G25050 | 2-1/2" | 1/2" NPT | - | - | - | 1/2" | 0.1000 |
| B23BMP-G300 | 2" | 3/4" NPT | 3.58" | 3.00" | 0.63" | 3/4" | 1.2700 |
| B23BMP-G30050 | 3" | 1/2" NPT | - | - | - | 1/2" | - |
| B23BMP-G400 | 4" | 3/4" NPT | 4.68" | 4.00" | 0.63" | 3/4" | 2.2850 |
