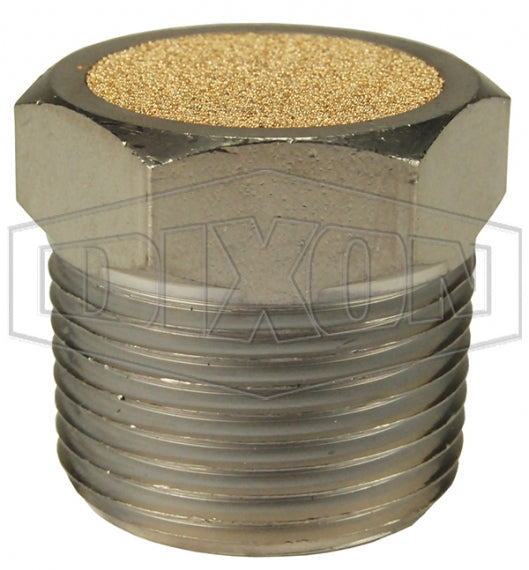

ASP-1BV by Dixon Valve | Pneumatic Breather Vent | 1/8" Male NPT | 150 PSI | Nickel-Plated Steel

ASP-1BV by Dixon Valve | Pneumatic Breather Vent | 1/8" Male NPT | 150 PSI | Nickel-Plated Steel

Minimum Order Quantity: 5 Units

Sale price$3.31

Breather Vents Breather vents have many applications, including vacuum relief or pressure equalization on gear boxes, oil tanks or reservoirs. Common uses can be found on single acting cylinders or valves to prevent dirt and foreign particles from entering ports open to the atmosphere.

Buy More, Save More!
Quantity Price Each
20–39 $3.11
40–79 $2.81
80+ $2.48
Discounts applied in cart/checkout.

Product Data:
Features:
  • Standard pipe thread connections for quick assembly and removal for cleaning.
  • Nickel plated steel insert with a bronze filter.
  • 40 micron filter element.
Specifications:
  • Maximum operating pressure: 150 PSI.
  • Temperature range: 35 °F to 300 °F (2 °C to 149 °C).
Nickel-Plated Steel
Part Number		 NPT Thread Overall Length
ASP-1BV 1/8" 7/16"
ASP-2BV 1/4" 5/8"
ASP-3BV 3/8" 3/4"
ASP-4BV 1/2" 7/8"
ASP-6BV 3/4" 1"
ASP-8BV 1" 1-5/16"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
