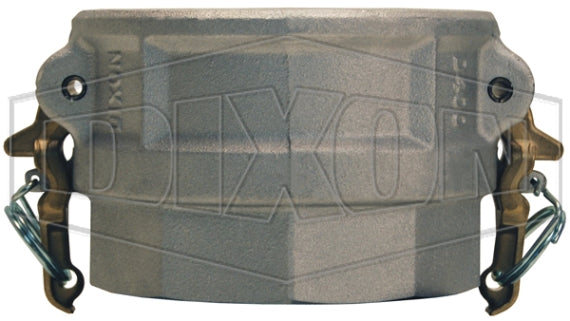

ADS400 by Dixon Valve | Boss-Lock Cam & Groove Coupler | 4" Coupler x 4" Female NPSM | Aluminum

ADS400 by Dixon Valve | Boss-Lock Cam & Groove Coupler | 4" Coupler x 4" Female NPSM | Aluminum

Sale price$98.67

Dixon Valve
Boss-Lock Cam & Groove Coupler | Coupler x Female NPSM

Used in the delivery of dry goods.
Buy More, Save More!
Quantity Price Each
5–19 $92.75
20–59 $83.87
60+ $74.00
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Boss-Lock
MAWP:

100

Shape:

Straight
Features:
  • All Boss-Lock™ couplers are supplied with pull-safety clips.
Construction:
  • Nitrile Rubber gasket.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
  • The cast-in lugs allow safety clips to be attached once the lugs are passed through slots in the special cam lever arms providing a positive locking action.
  • The pull ring safety clip simplifies the locking action on Boss-Lock couplers. No more inserting clips or dangling lanyards, just a twist and it's locked, giving you a low profile positive locking action.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 Size Maximum Operating Pressure Replacement Gasket
Part Number
ADS400 4" 100 PSI 400GAGFI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
