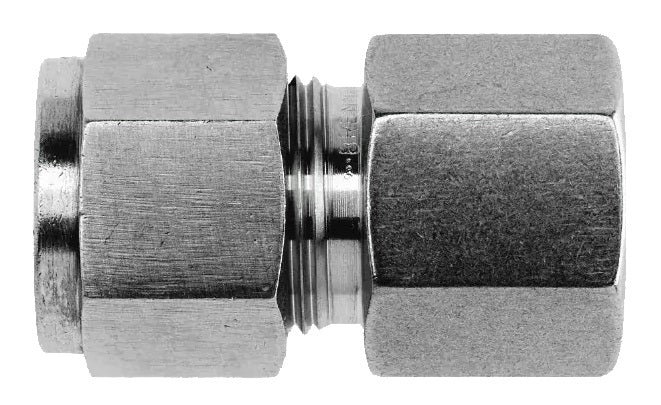

NS2405-16-16-SS by Brennan Inc. | -16 Instrumentation Fitting Single Ferrule x -16 Female NPT | Straight | Stainless Steel

NS2405-16-16-SS by Brennan Inc. | -16 Instrumentation Fitting Single Ferrule x -16 Female NPT | Straight | Stainless Steel

Sale price$176.75

Brennan Inc.
Single Ferrule Tube Fittings: NS2405 - Instrumentation Fitting (Single Ferrule) x Female NPT Straight
Buy More, Save More!
Quantity Price Each
5–19 $166.15
20–59 $150.24
60+ $132.56
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Tube Compression
  • 1in Female NPT
Material(s):
  • Stainless Steel
Part Number Material T Tube OD P NPT Male A
mm		 B
mm		 C
mm		 D
mm		 E Min.
mm		 F A/F
mm		 G A/F
mm		 H
mm
NS2405-02-02-B Brass 1/8" 1/8" 28.70mm 10.40mm 15.30mm 12.70mm 2.40mm 14mm 11mm 22.10mm
NS2405-08-08-B Brass 1/2" 1/2" 46.7mm 19.80mm 21.80mm 22.90mm 10.40mm 27mm 22mm 36.60mm
NS2405-02-04-SS Stainless Steel 1/8" 1/4" 33.60mm 15.00mm 15.30mm 12.70mm 2.40mm 19mm 11mm 26.90mm
NS2405-04-02-SS Stainless Steel 1/4" 1/8" 31.20mm 9.90mm 17.80mm 15.30mm 4.80mm 14mm 14mm 23.90mm
NS2405-04-04-SS Stainless Steel 1/4" 1/4" 35.80mm 15.00mm 17.80mm 15.30mm 4.80mm 19mm 14mm 28.50mm
NS2405-04-08-SS Stainless Steel 1/4" 1/2" 42.40mm 19.80mm 17.80mm 15.30mm 4.80mm 27mm 14mm 35.00mm
NS2405-06-04-SS Stainless Steel 3/8" 1/4" 37.60mm 15.00mm 19.30mm 16.80mm 7.10mm 19mm 17mm 30.20mm
NS2405-06-06-SS Stainless Steel 3/8" 3/8" 39.10mm 15.00mm 19.30mm 16.80mm 7.10mm 22mm 17mm 31.80mm
NS2405-06-08-SS Stainless Steel 3/8" 1/2" 43.90mm 19.80mm 19.30mm 16.80mm 7.10mm 27mm 17mm 36.60mm
NS2405-06-12-SS Stainless Steel - - - - - - - - - -
NS2405-08-04-SS Stainless Steel 1/2" 1/4" 40.40mm 15.00mm 21.80mm 22.90mm 10.40mm 22mm 22mm 30.20mm
NS2405-08-06-SS Stainless Steel 1/2" 3/8" 41.90mm 15.00mm 21.80mm 22.90mm 10.40mm 22mm 22mm 30.20mm
NS2405-08-08-SS Stainless Steel 1/2" 1/2" 46.70mm 19.80mm 21.80mm 22.90mm 10.40mm 27mm 22mm 36.60mm
NS2405-08-12-SS Stainless Steel 1/2" 3/4" 48.30mm 20.60mm 21.80mm 22.90mm 10.40mm 32mm 22mm 38.10mm
NS2405-16-16-SS Stainless Steel 1" 1" 62.30mm 25.40mm 26.40mm 31.20mm 22.30mm 41mm 38mm 50.00mm

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
