Hose & Clamp Kits
Series 3000 Coolant Hose & Clamp Kits

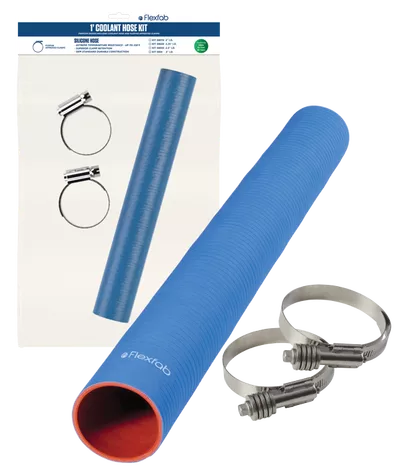

A 1 ft length of blue Series 5515 3-ply silicone coolant hose packaged with a matching constant tension clamp.
1
What are the main product features?
- Resists hardening, cracking, cold leaks, aging and many chemicals
- Ideal for extreme temperature and various pressure ranges where high performance levels are required
2
What are the key specifications?
Construction
Silicone hose with 3 plies of polyester reinforcement
Color
Blue
Standards
Meets or exceeds SAE J20 R1 Class A and TMC RP303B Class I Grade II
Wall Thickness
Custom wall, .140" / .190"
Working Pressure
1/3 of the burst pressure
Hose Length
Stocked in 1 ft lengths
3
Which kits are available?
| Kit Part Number | Hose Length | Hose ID | Hose OD | Clamp Range | Actual Burst Pressure | Hose in Kit | Clamp in Kit |
|---|---|---|---|---|---|---|---|
| KIT3001 | 12" | 2.00" | 2.32" | 1.75" – 2.63" | 250 PSI | 5515-200 | FLX2584-0262 |
| KIT3002 | 12" | 2.25" | 2.57" | 2.25" – 3.13" | 225 PSI | 5515-225 | FLX2584-0312 |
| KIT3003 | 12" | 2.50" | 2.82" | 2.25" – 3.13" | 200 PSI | 5515-250 | FLX2584-0312 |
| KIT3004 | 12" | 3.00" | 3.32" | 2.75" – 3.63" | 200 PSI | 5515-300 | FLX2584-0362 |
