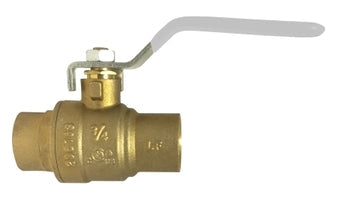

943616LF by Midland | Lead Free Ball Valve | 1-1/2" SWT x 1-1/2" SWT | Brass

943616LF by Midland | Lead Free Ball Valve | 1-1/2" SWT x 1-1/2" SWT | Brass

Sale price$80.63

Midland Industries
Lead Free Ball Valve - Full Port - SWT x SWT - Brass
Buy More, Save More!
Quantity Price Each
5–19 $75.79
20–59 $68.54
60+ $60.47
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1-1/2in Sweat End
  • 1-1/2in Sweat End
  • Some Ends Match
Material(s):
  • Lead Free Brass
Features:
  • 1/2" - 2" Sizes Gas Approved
  • Lead free and dezincification resistant (DZR) material
  • Suitable for full range of liquids and gases
  • Minimal pressure drop due to large full size ports
  • Bottom loaded, pressure retaining stem
  • Pressure rated for 1/4"-2" at 600psi (42 bars) and 2-1/2"-4" at 400 psi WOG (non-shock) and 150 WSP (10.34 bars) saturated steam.
  • Fast 1/4 turn open or close operation
  • Low operating torque
  • Maximum operating temperature: 3020F (1500 C)
  • Minimum operating temperature: -220F (-300C)
  • Each valve individually tested
  • Threaded ends to ANSI B1.20.1
  • Blow-out proof stem
  • Lead Free Lead Free Info (PDF)
Construction:
  • Stainless steel ball
  • Virgin PTFE stem packing seal, thrust washer and seats
  • White vinyl insulator on heavy duty plated carbon steel handles
  • Adjustable stem packing gland
  • Forged Brass - for more strength
  • Hard chromium plated solid ball
Specifications:
  • FM, cUPC, NSF/ ANSI 61 & 372
Number Components Materials
1 Body Lead Free Brass
2 End Cap Lead Free Brass
3 Ball Seat PTFE
4 Ball 1/4-1:Lead Free Brass
1-1/4-4:SS316 Hollowball
5 Stem Brass
6 Stem Padding PTFE
7 Padding Nut Brass
8 Lever Handle Nickel plating steel
9 Stem Nut Brass plating steel
10 Seal PTFE
Part Number Size A B C D E F Weight
943612LF
(943-612LF)		 1/2" 2.047" 1.839" 3.543" 0.583" 0.512" 0.630" 0.45
943613LF
(943-613LF)		 3/4" 2.748" 0.214" 3.780" 0.748" 0.748" 0.878" 0.68
943614LF
(943-614LF)		 1" 3.228" 2.449" 4.528" 0.945" 0.906" 1.130" 1.08
943615LF
(943-615LF)		 1-1/4" 3.819" 3.040" 4.360" 1.260" 0.972" 1.378" 1.80
943616LF
(943-616LF)		 1-1/2" 4.425" 3.169" 5.390" 1.575" 1.088" 1.630" 2.51
943617LF
(943-617LF)		 2" 5.377" 3.488" 6.307" 1.989" 1.346" 2.130" 3.57

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
