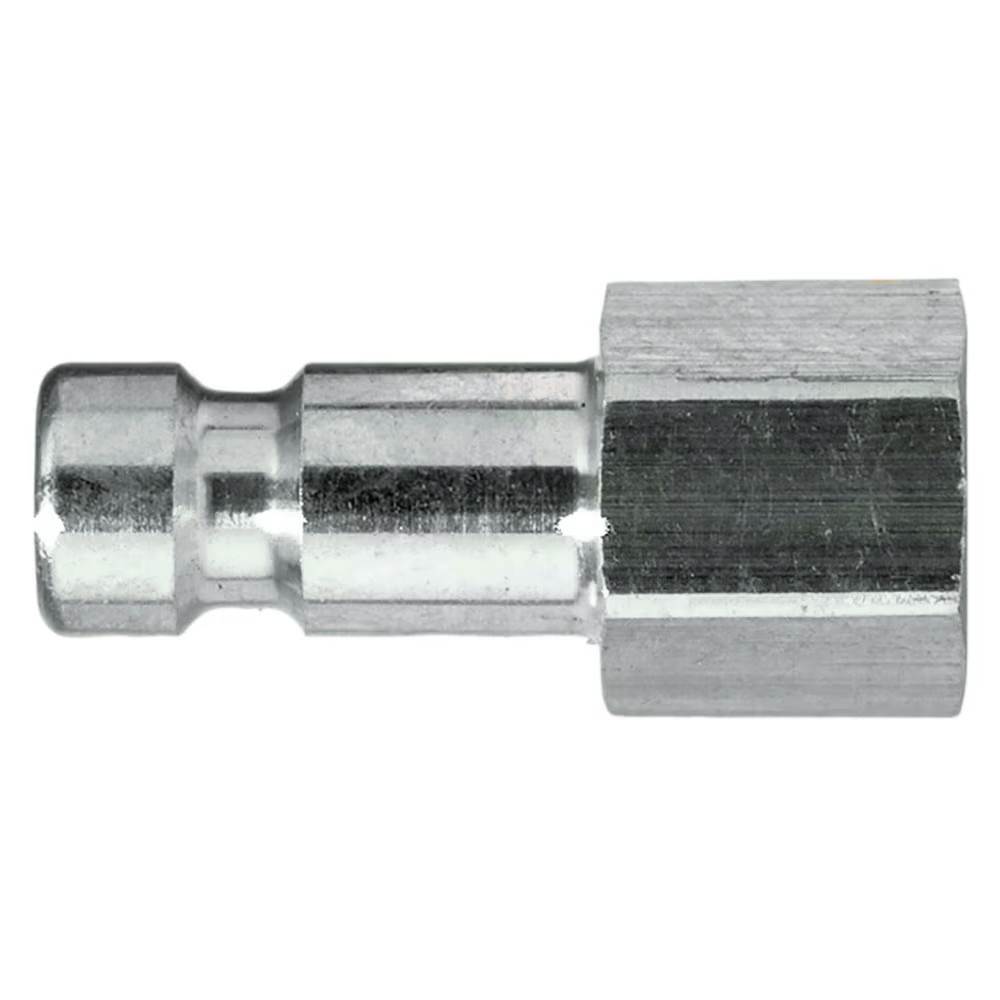

9086 20 10 by Parker | Legris Plug Quick Disconnect | 1/8" Female BSPP Thread | 12 mm Hex | 19 mm Length | Straight | Nickel-Plated Brass | Pack of 5

9086 20 10 by Parker | Legris Plug Quick Disconnect | 1/8" Female BSPP Thread | 12 mm Hex | 19 mm Length | Straight | Nickel-Plated Brass | Pack of 5

Sale price$58.30

by Parker Hannifin
Series 20 - Brass/Steel:9086 Plug without valve, Female Thread

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–39 $54.80
40–79 $49.56
80+ $43.73
Discounts applied in cart/checkout.

Product Data:

Series:
  • 20 Series
Shape:

Straight

Material(s):
  • Nickel-Plated Brass
Series 20 - Brass/Steel Series: Single Shut-Off Mini Industrial coupling with internationally used profile. Frequent use in medical technology and chemistry/pharmacy. Coupling system with single-hand operation. Wide range of applications with different media.
      Available on request:
  • with additional end connections
  • other seals for different temperature ranges and fluids
Working Pressure:
  • up to 35 bar
Material:
  • Coupling: Brass
  • Plug: Brass
  • Seals: NBR
Working Temperature:
  • -20°C up to +100°C (NBR)
Flow Rate Air:
  • 165 Nl/min. (inlet pressure 6 bar, pressure dop 0.5 bar)
Flow Rate Water:
  • 1.5 l/min. (Pressure dop 0.5 bar)
Part Number A Hex L L1 D
9086 20 19 M5 7 mm 17 mm 5 mm .0025 Kg
9086 20 10 1/8" 12 mm 19 mm 7 mm .006 Kg

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
