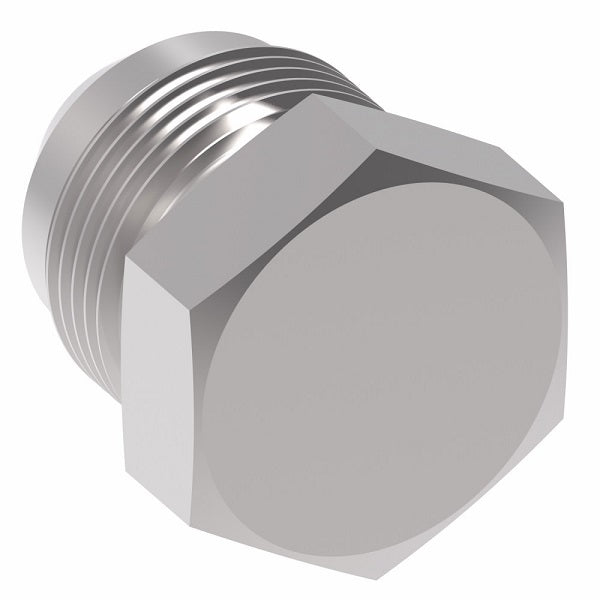

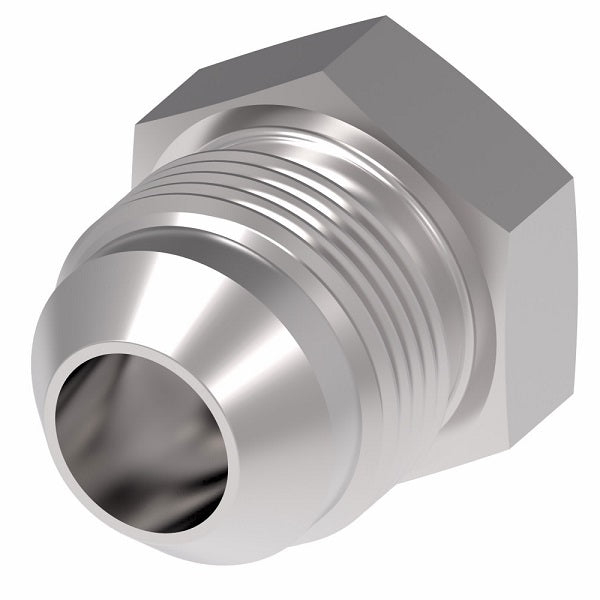

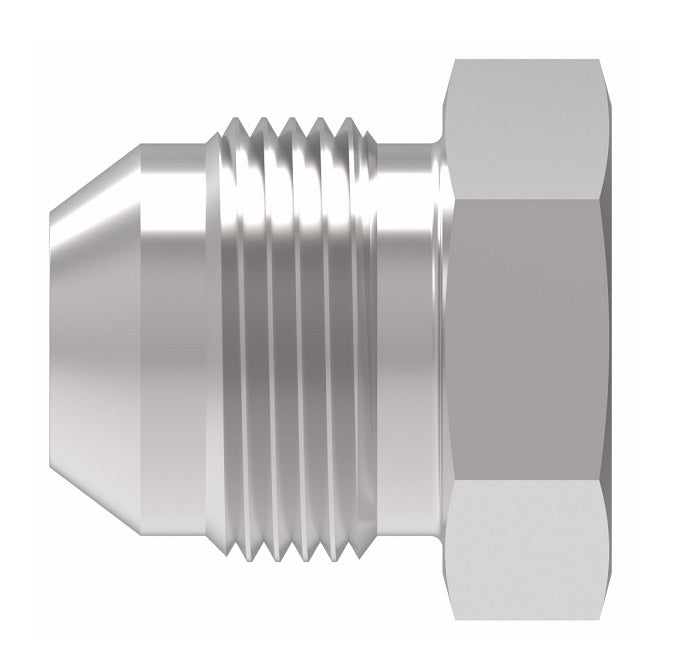

900599-4S Aeroquip by Danfoss | Male 37° JIC Flare Plug Adapter | -04 Male 37° JIC Flare | Steel
Minimum Order Quantity: 10 Units
Aeroquip® by Danfoss
Male 37° JIC Flare Plug Adapter
Male 37° JIC Flare
Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $1.47 |
| 40–79 | $1.33 |
| 80+ | $1.17 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Number Steel |
Part Number Stainless Steel |
Tube O.D. | Thread T1 | A | B |
| 900599-3S | - | 0.19" | 3/8-24 | 0.73" | 0.44" |
| 900599-4S | - | 0.25" | 7/16-20 | 0.80" | 0.50" |
| 900599-5S | - | 0.31" | 1/2-20 | 0.80" | 0.56" |
| 900599-6S | 259-900599-6 | 0.38" | 9/16-18 | 0.84" | 0.62" |
| 900599-8S | - | 0.50" | 3/4-16 | 0.94" | 0.81" |
| 900599-10S | - | 0.63" | 7/8-14 | 1.10" | 0.94" |
| 900599-12S | 259-900599-12 | 0.75" | 1-1/16-12 | 1.28" | 1.12" |
| 900599-14S | - | - | - | - | - |
| 900599-16S | - | 1.00" | 1-5/16-12 | 1.33" | 1.38" |
| 900599-20S | - | 1.25" | 1-5/8-12 | 1.45" | 1.69" |
| 900599-24S | - | 1.50" | 1-7/8-12 | 1.65" | 2.00" |
| 900599-32S | - | 2.00" | 2-1/2-12 | 2.05" | 2.62" |
