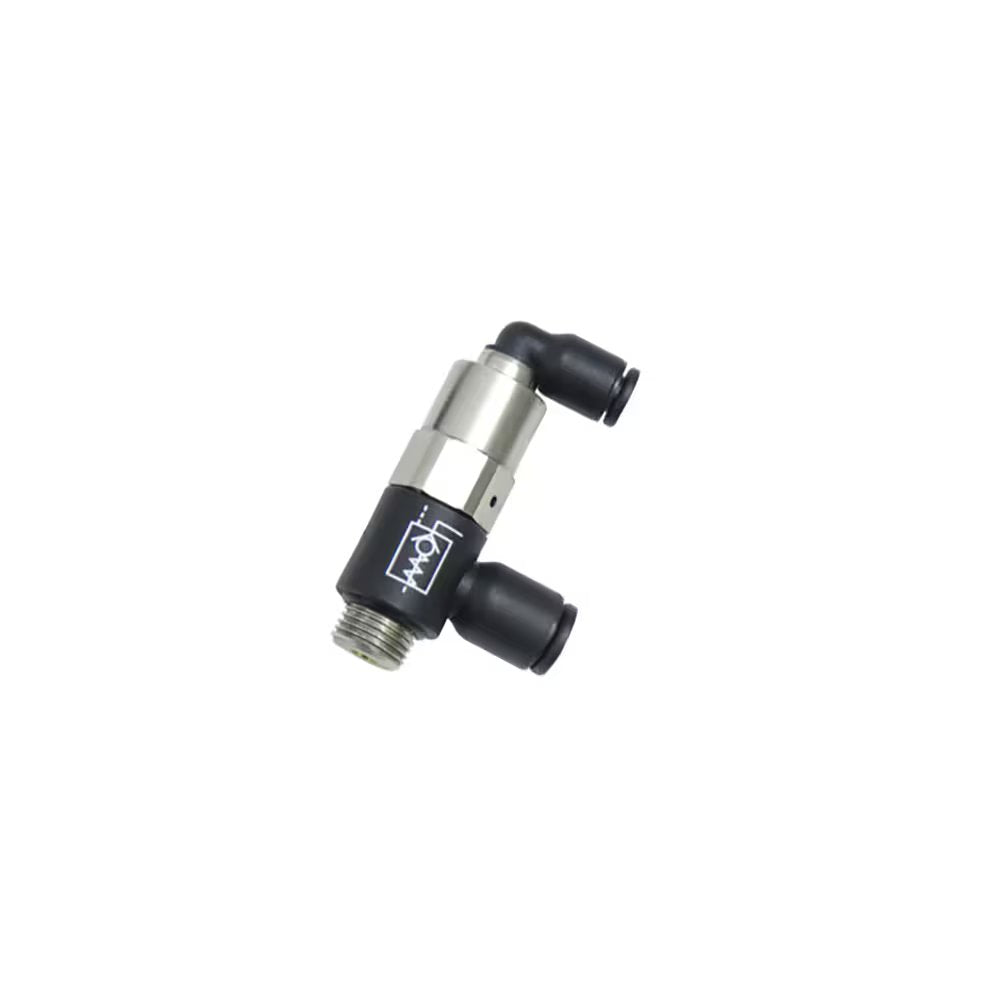

7892 06 13 by Parker | Legris Piloted Non-Return Valve | 6 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex | 54 mm Length | Multi-Directional | Polymer

7892 06 13 by Parker | Legris Piloted Non-Return Valve | 6 mm Tube Size x 1/4" Male BSPP Thread | 17 mm Hex | 54 mm Length | Multi-Directional | Polymer

Sale price$93.83

by Parker Hannifin
Piloted Non-Return Valves:7892 Piloted Non-Return Valve, Male BSPP Thread
Buy More, Save More!
Quantity Price Each
20–29 $88.20
30–59 $79.76
60+ $70.37
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7892 Series
Shape:

Multi-Directional

Ends Configuration:
  • 6mm Push-to-Connect
  • 1/4in Male BSPP
  • 4mm Push-to-Connect
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar
  • Working Temperature: -5°C to +60°C
  • Cracking Pressure: 0.3 bar
Advantages:
  • Mounted in pairs on a cylinder
  • 3 functions in 1 compact product:
    - Piloted non-return valve
    - Flow control regulator
    - Manual exhaust
  • Vent saves time on restart after maintenance operations
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Nickel-plated brass
  • Venting buttons: Nickel-plated brass
  • Seals: NBR
  • Gripping ring: Stainless Steel
  • Piston: Nickel-plated brass
  • Valve poppet: Nickel-plated brass, technical polymer
  • Flow control regulator body: Technical polymer
  • Adjustment screw: Nickel-Plated Brass
  • Locking Nut: Nickel-Plated Brass
Part Number ØD C E F G H H1 H2 L Kg
7892 06 10 6 mm 1/8" 6 mm 13 mm 14 mm 42 mm 30 mm 7 mm 21 mm .020 Kg
7892 06 13 6 mm 1/4" 9 mm 17 mm 18.5 mm 45 mm 32 mm 9 mm 23 mm .042 Kg
7892 08 10 8 mm 1/8" 6 mm 13 mm 14 mm 42 mm 29 mm 9 mm 25 mm .020 Kg
7892 08 13 8 mm 1/4" 9 mm 17 mm 18.5 mm 45 mm 32 mm 9 mm 27 mm .042 Kg
7892 08 17 8 mm 3/8" 6 mm 20 mm 22.5 mm 57 mm 41 mm 11 mm 28 mm .093 Kg
7892 10 17 10 mm 3/8" 6 mm 20 mm 22.5 mm 57 mm 41 mm 11 mm 31 mm .144 Kg
7892 10 21 10 mm 1/2" 10 mm 24 mm 28 mm 63 mm 47 mm 16 mm 36 mm .109 Kg
7892 12 21 12 mm 1/2" 10 mm 24 mm 28 mm 63 mm 47 mm 16 mm 36 mm .150 Kg
