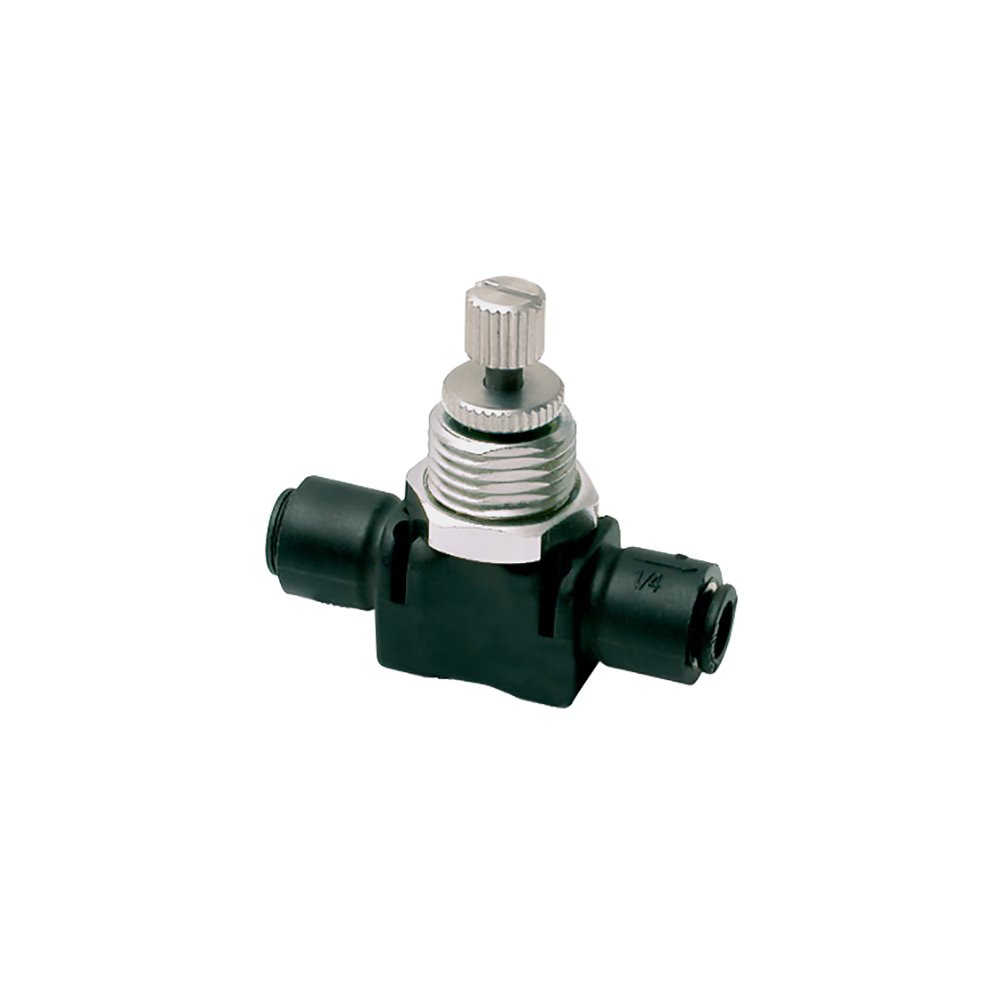

7776 06 00 by Parker | Legris Panel-Mountable In-Line One-Way Flow Regulator | 6 mm Tube Size | 22 mm Hex | Straight | Polymer | Pack of 5

7776 06 00 by Parker | Legris Panel-Mountable In-Line One-Way Flow Regulator | 6 mm Tube Size | 22 mm Hex | Straight | Polymer | Pack of 5

Sale price$184.43

by Parker Hannifin
Flow Control Regulators:7776 Panel-Mountable In-Line One-Way Flow Regulator

Package Quantity: 5 Units

Buy More, Save More!
Quantity Price Each
20–29 $173.36
30–59 $156.77
60+ $138.32
Discounts applied in cart/checkout.

Product Data:

Series:
  • 7776 Series
Shape:

Straight

Ends Configuration:
  • 6mm Push-to-Connect
  • 6mm Push-to-Connect
  • Some Ends Match
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: 1 to 10 bar.
  • Working Temperature: 0°C to +70°C
    -25°C to +70°C (Metal version)
Advantages:
    Productivity:
  • Higher maximum flow than standard regulators
  • Optimal control of the cylinder rod speed
    • Accuracy:
  • Precise adjustment for accurate flow regulation
  • Long-term stability of flow
    • Ergonomics:
  • External adjustment screw: easy to adjust ; Recessed adjustment screw: protects the adjustment mechanism
  • Can be rotated 360° during assembly
Regulations:
  • RoHS
  • REACH
  • PED
Component Materials:
  • Body: Technical polymer or Nickel-plated brass
  • Adjustment screw: Nickel-plated brass and polymer
  • Nut: Nickel-plated brass
  • Seals: NBR
  • Adapter: Nickel-plated brass
  • Gripping: Stainless Steel
Part Number ØD F F1 H H (max) H1 H2 K L ØT Kg
7776 04 00* 4 mm 14 mm - 39.5 mm 43 mm 6.5 mm 11 mm 6 mm 36 mm 10.5 mm .015 Kg
7776 06 00* 6 mm 22 mm - 45.5 mm 49 mm 7.5 mm 13.5 mm 7 mm 51 mm 16.5 mm .038 Kg
7776 08 00 8 mm 22 mm 11 mm 45.5 mm 54 mm 9 mm 13.5 mm 7 mm 58 mm 18.5 mm .069 Kg
7776 10 00 10 mm 30 mm 14 mm 54 mm 62 mm 11.5 mm 13.5 mm 7 mm 73 mm 24.5 mm .136 Kg
7776 12 00 12 mm 32 mm 14 mm 61 mm 71 mm 12.5 mm 15.5 mm 8 mm 85 mm 27.5 mm .185 Kg

*Ultrafine adjustment
