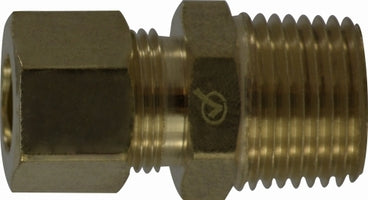

700068-0704 by Midland | Lead Free Compression Fitting | 7/16" Tube OD x 1/4" Male Pipe | Adapter | Brass | Replaces: 18192LF / 18-192LF
Midland Industries
Lead Free Brass Fitting - Compression Fitting - Male Adapter
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Specifications and Approvals:
Special Properties:
SPECIFICATIONS
| Applications: | Water, Gasoline, Oil, and Vacuum Lines. | Used With: | Copper, Aluminum, Or Plastic Tubing (Plastic requires 60P Sleeve and 61P Insert) |
|---|---|---|---|
| Temperature Range: | -40°F to +250°F | Conformance: | Meets specifications and standards in Section 1417 of the Safe Drinking Water Act. |
| Lead Free: | Yes. Lead Free Info (PDF) |
| Features: | |||
|---|---|---|---|
|
| Tube OD | 1/8" | 3/16" | 1/4" | 5/16" | 3/8" | 7/16" | 1/2" | 5/8" | 3/4" | 7/8" |
|---|---|---|---|---|---|---|---|---|---|---|
| Thread Size | 5/16-24 | 3/8-24 | 7/16-24 | 1/2-24 | 9/16-24 | 5/8-24 | 11/16-20 | 13/16-18 | 1-18 | 1-1/8-18 |
| Crossover Series: |
|---|
| LF68 |
| Part Number | Tube OD x Male Pipe | |
|---|---|---|
| 700068-0202 | 1/8" x 1/8" | |
| 700068-0302 | 3/16" x 1/8" | |
| 700068-0304 | 3/16" x 1/4" | |
| 700068-0402 | 1/4" x 1/8" | |
| 700068-0404 | 1/4" x 1/4" | |
| 700068-0406 | 1/4" x 3/8" | |
| 700068-0408 | 1/4" x 1/2" | |
| 700068-0502 | 5/16" x 1/8" | |
| 700068-0504 | 5/16" x 1/4" | |
| 700068-0506 | 5/16" x 3/8" | |
| 700068-0508 | 5/16" x 1/2" | |
| 700068-0602 | 3/8" x 1/8" | |
| 700068-0604 | 3/8" x 1/4" | |
| 700068-0606 | 3/8" x 3/8" | |
| 700068-0608 | 3/8" x 1/2" | |
| 700068-0612 | 3/8" x 3/4" | |
| 700068-0704 | 7/16" x 1/4" | |
| 700068-0706 | 7/16" x 3/8" | |
| 700068-0804 | 1/2" x 1/4" | |
| 700068-0806 | 1/2" x 3/8" | |
| 700068-0812 | 1/2" x 3/4" | |
| 700068-1006 | 5/8" x 3/8" | |
| 700068-1008 | 5/8" x 1/2" | |
| 700068-1012 | 5/8" x 3/4" | |
| 700068-1208 | 3/4" x 1/2" | |
| 700068-1212 | 3/4" x 3/4" | |
| 700068-1408 | 7/8" x 1/2" | |
| 700068-1412 | 7/8" x 3/4" | |
| 700068-1416 | 7/16" x 1" |
