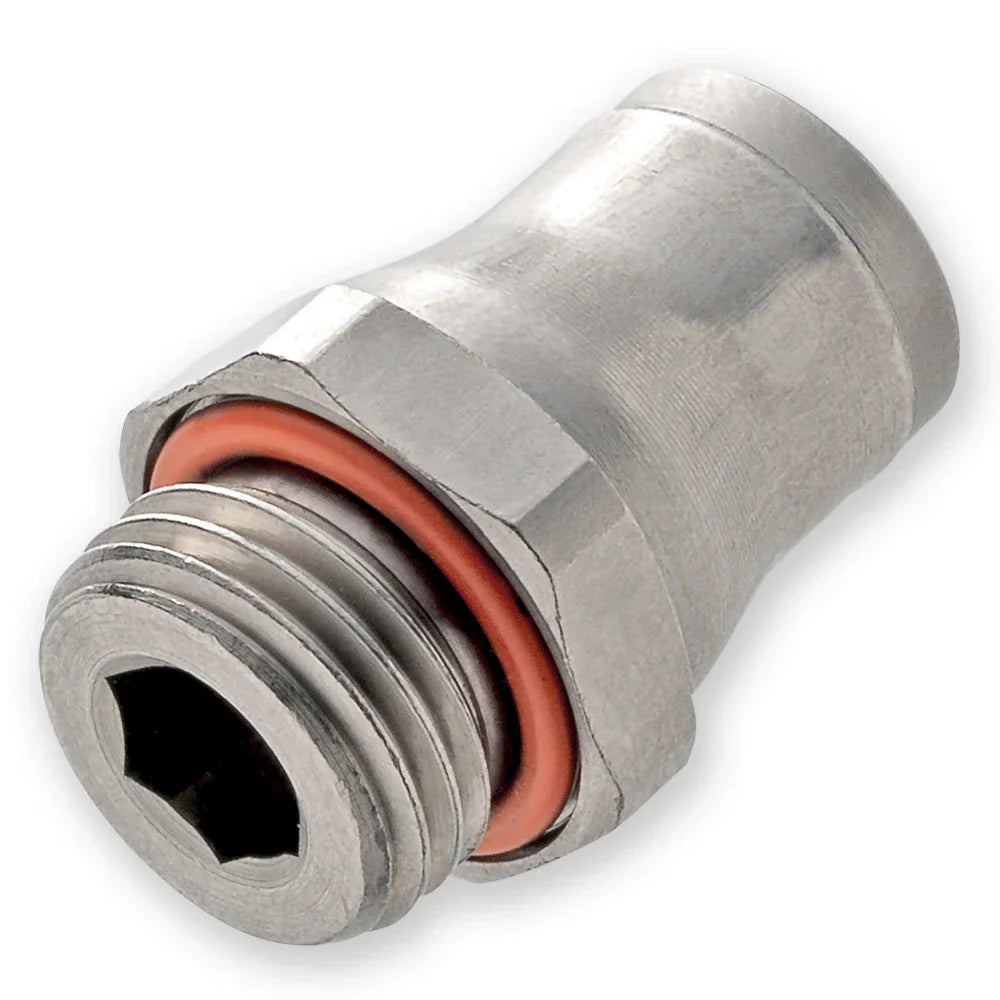

68PLS-8M-4G by Parker | Prestolok PLS Push-to-Connect Fittings | Threaded Fitting | 8 mm Connector x 1/4" Male BSPP Threads | 18.50 mm Height | 18.50 mm Width | Straight | Stainless Steel | Pack of 5
by Parker Hannifin
Prestolok PLS Stainless Steel Push-to-Connect Fittings:68PLS Male Connector - Metric Tube to BSPP, M5
Package Quantity: 5 Units
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $408.28 |
| 15–29 | $369.19 |
| 30+ | $325.76 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
| Product Features: |
|
|---|---|
| Markets: |
|
| Compatible Media: |
|
| Pressure Range: | Up to 435 psi (30 bar) 290 psi (19.9 bar) for 169PLS |
| Vacuum Rating: | 28" Hg |
| Temperature Range: | -13° to +302° F (-25° to +150° C) |
| Compatible Tubing: |
|
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Tube Size | BSPP / M5 | F | F1 | H | K |
| 68PLS-4M-M5 | 4 mm | M5X0.8 | 10 mm | 2.5 mm | 16.00 mm | 11.00 mm |
| 68PLS-4M-2G | 4 mm | 1/8" | 13 mm | 3.0 mm | 15.00 mm | 14.00 mm |
| 68PLS-6M-M5 | 6 mm | M5X0.8 | 13 mm | 2.5 mm | 20.50 mm | 14.00 mm |
| 68PLS-6M-2G | 6 mm | 1/8" | 13 mm | 4.0 mm | 18.00 mm | 14.00 mm |
| 68PLS-6M-4G | 6 mm | 1/4" | 17 mm | 4.0 mm | 18.00 mm | 18.50 mm |
| 68PLS-8M-2G | 8 mm | 1/8" | 15 mm | 5.0 mm | 19.00 mm | 16.50 mm |
| 68PLS-8M-4G | 8 mm | 1/4" | 17 mm | 5.0 mm | 20.50 mm | 18.50 mm |
| 68PLS-8M-6G | 8 mm | 3/8" | 21 mm | 6.0 mm | 20.00 mm | 23.00 mm |
| 68PLS-10M-4G | 10 mm | 1/4" | 18 mm | 7.0 mm | 25.00 mm | 19.50 mm |
| 68PLS-10M-6G | 10 mm | 3/8" | 21 mm | 7.0 mm | 25.00 mm | 23.00 mm |
| 68PLS-12M-4G | 12 mm | 1/4" | 21 mm | 7.0 mm | 27.00 mm | 23.00 mm |
| 68PLS-12M-6G | 12 mm | 3/8" | 21 mm | 9.0 mm | 26.50 mm | 23.00 mm |
