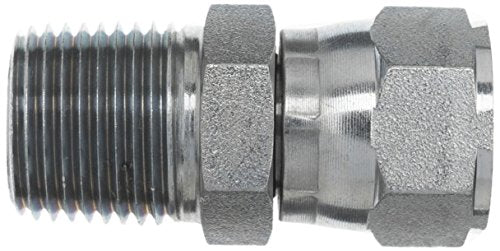

6505-16-12 by Brennan Inc. | -16 Male Pipe x -12 Female JIC Swivel | Straight | Steel
Brennan Inc.
Tube Fittings & Adapters: 6505 - Male Pipe x Female JIC Swivel Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $31.25 |
| 40–79 | $28.25 |
| 80+ | $24.93 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
 |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D. | A NPTF | B SAE37° | ADrill | BDrill | L Length | L5 Length | C1 Hex | C Hex |
| 6505-04-08 | Steel | - | - | - | - | - | - | - | - | - |
| 6505-06-08 | Steel | 1/2" | 3/8-18" | 3/4-16" | 0.391" | 0.391" | 1.31" | 1.73" | 0.875" | 0.875" |
| 6505-12-10 | Steel | 5/8" | 3/4-14" | 7/8-14" | 0.719" | 0.484" | 1.700" | 2.207" | 1.000" | 1.125" |
| 6505-12-16 | Steel | 1" | 3/4-14" | 1-5/16-12" | 0.719" | 0.844" | 1.77" | 2.38" | 1.500" | 1.375" |
| 6505-16-12 | Steel | - | - | - | - | - | - | - | - | - |
| 6505-16-16 | Steel | 1" | 1-11-1/2" | 1-5/16-12" | 0.938" | 0.844" | 1.97" | 2.56" | 1.500" | 1.375" |
| 6505-20-20 | Steel | 1-1/4" | 1-1/4-11-1/2" | 1-5/8-12" | 1.25" | 1.078" | 2.21" | 2.85" | 2.000" | 1.688" |
| 6505-24-24 | Steel | 1-1/2" | 1-1/2-11-1/2" | 1-7/8-12" | 1.5" | 1.312" | 2.27" | 2.99" | 2.250" | 2.000" |
| 6505-32-32 | Steel | 2" | 2-11-1/2" | 2-1/2-12" | 1.938" | 1.781" | 2.500" | 3.440" | 2.875" | 2.625" |
| 6505-02-04-SS | Stainless Steel | 1/4" | 1/8-27" | 7/16-20" | 0.172" | 0.172" | 1.010" | 1.350" | 0.563" | 0.500" |
| 6505-04-04-SS | Stainless Steel | 1/4" | 1/4-18" | 7/16-20" | 0.281" | 0.172" | 1.20" | 1.54" | 0.563" | 0.625" |
| 6505-04-05-SS | Stainless Steel | 5/16" | 1/4-18" | 1/2-20" | 0.281" | 0.234" | 1.260" | 1.64" | 0.625" | 0.562" |
| 6505-04-06-SS | Stainless Steel | 3/8" | 1/4-18" | 9/16-18" | 0.281" | 0.297" | 1.300" | 1.68" | 0.688" | 0.562" |
| 6505-04-08-SS | Stainless Steel | 3/8" | 1/4-18" | 3/4-16" | 0.281" | 0.391" | 1.730" | 1.310" | 0.875" | 0.875" |
| 6505-06-06-SS | Stainless Steel | 3/8" | 3/8-18" | 9/16-18" | 0.406" | 0.297" | 1.26" | 1.64" | 0.688" | 0.750" |
| 6505-06-08-SS | Stainless Steel | 1/2" | 3/8-18" | 3/4-16" | 0.391" | 0.391" | 1.31" | 1.73" | 0.875" | 0.875" |
| 6505-06-12-SS | Stainless Steel | - | - | - | - | - | - | - | - | - |
| 6505-08-08-SS | Stainless Steel | 1/2" | 1/2-14" | 3/4-16" | 0.531" | 0.391" | 1.56" | 1.98" | 0.875" | 0.875" |
| 6505-08-10-SS | Stainless Steel | 5/8" | 1/2-14" | 7/8-14" | 0.531" | 0.484" | 1.60" | 2.10" | 1.000" | 1.000" |
| 6505-08-12-SS | Stainless Steel | 3/4" | 1/2-14" | 1-1/16-12" | 0.531" | 0.609" | 1.58" | 2.14" | 1.250" | 1.000" |
| 6505-12-10-SS | Stainless Steel | 5/8" | 3/4-14" | 7/8-14" | 0.719" | 0.484" | 1.700" | 2.207" | 1.000" | 1.125" |
| 6505-12-12-SS | Stainless Steel | 3/4" | 3/4-14" | 1-1/16-12" | 0.719" | 0.609" | 1.720" | 2.29" | 1.250" | 1.125" |
| 6505-16-16-SS | Stainless Steel | 1" | 1-11-1/2" | 1-5/16-12" | 0.938" | 0.844" | 1.97" | 2.56" | 1.500" | 1.375" |
| 6505-20-20-SS | Stainless Steel | 1-1/4" | 1-1/4-11-1/2" | 1-5/8-12" | 1.25" | 1.078" | 2.21" | 2.85" | 2.000" | 1.688" |
| 6505-24-24-SS | Stainless Steel | 1-1/2" | 1-1/2-11-1/2" | 1-7/8-12" | 1.5" | 1.312" | 2.27" | 2.99" | 2.250" | 2.000" |
| 6505-32-32-SS | Stainless Steel | 2" | 2-11-1/2" | 2-1/2-12" | 1.938" | 1.781" | 2.500" | 3.45" | 2.875" | 2.625" |
