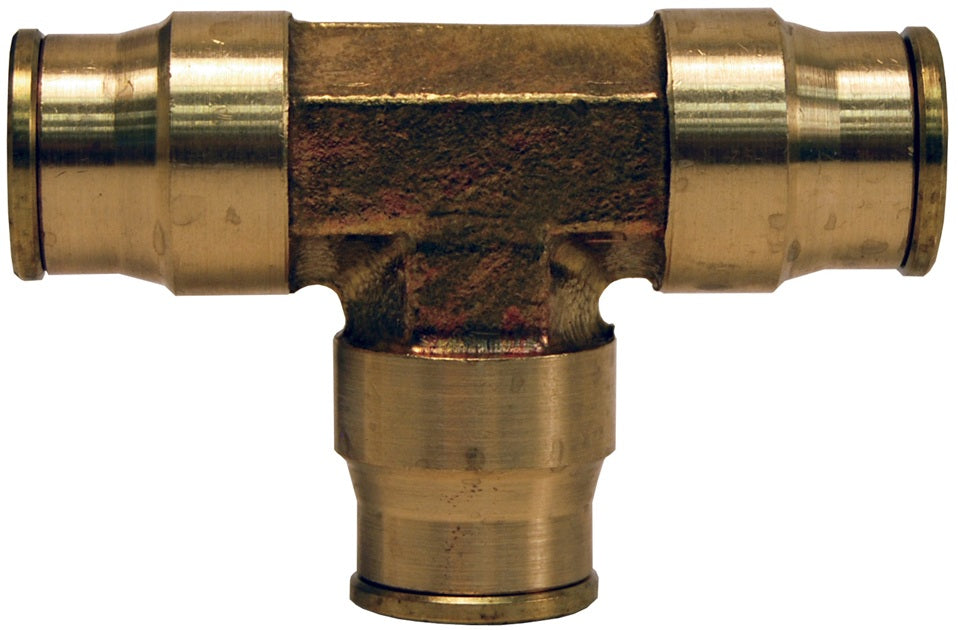

646 by Dixon Valve | Push-In Fitting | Union Tee | 3/16" Tube OD | Forged Brass

646 by Dixon Valve | Push-In Fitting | Union Tee | 3/16" Tube OD | Forged Brass

Sale price$15.85

Dixon Valve & Coupling
Push-In Fitting | Union Tee | Tube End x Tube End x Tube End
Buy More, Save More!
Quantity Price Each
10–39 $14.90
40–79 $13.47
80+ $11.89
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 3/16in Push-to-Connect
  • 3/16in Push-to-Connect
  • Some Ends Match
Material(s):
  • Brass
Use:
  • Suitable for vacuum service.
  • Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.
Features:
  • Positive seal: no leaks, after tubing is inserted, seal is made.
  • Secure tube retention: pulling on tubing only serves to tighten the connection.
  • Full flow design provides up to 60% more flow than conventional fittings with internal tube supports.
  • Supplied with gasket.
Construction:
  • Forged Brass
Specifications:
  • Temperature range: -10°F to 200°F (-23°C to 93°C)
Safety Notes:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
Installation:
  • Saves up to 75% of assembly time versus the standard compression fittings.
  • Quick connect: simply push tubing in, no tools required.
  • Quick disconnect: hold two fingers on insert and pull tubing out, no tools required.
  • Reusable: connect and disconnect numerous times.
Part Number Tube O.D.
644 1/8"
646 3/16"
648 1/4"
6412 3/8"
6416 1/2"
