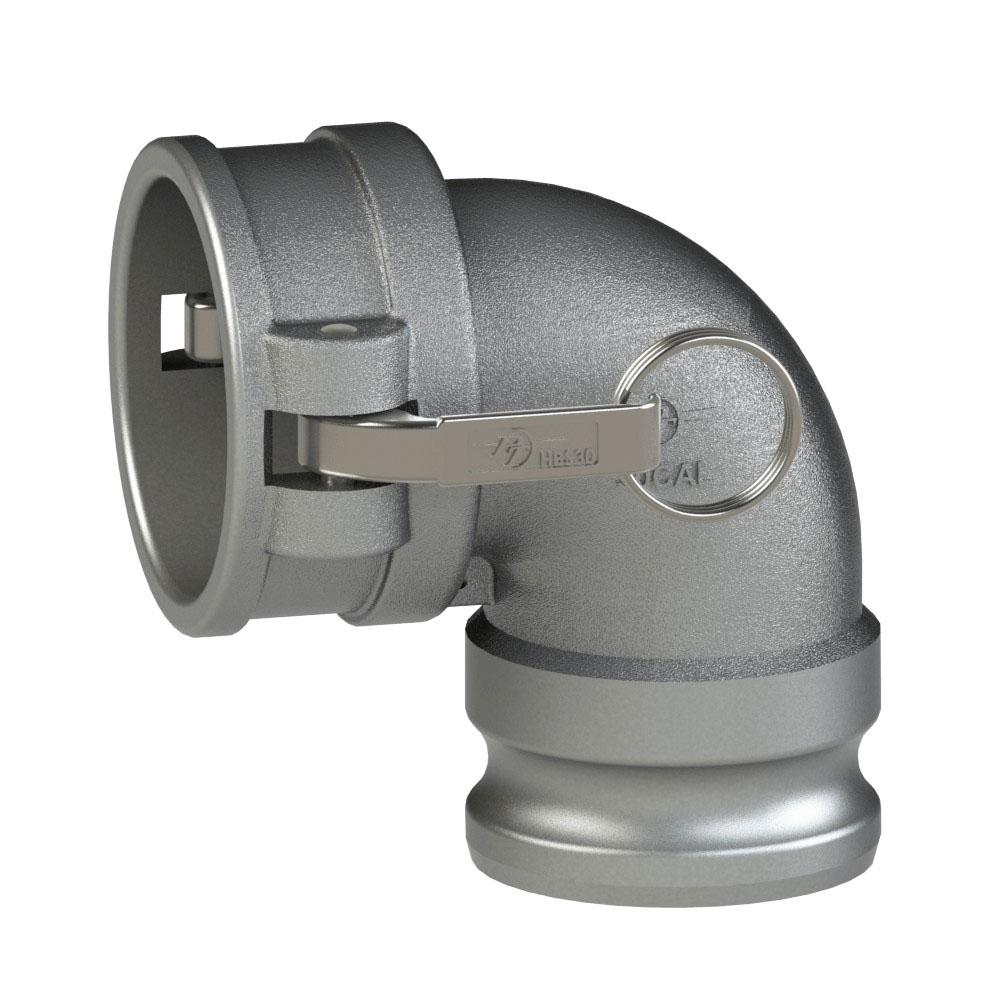

64504120 (20CAL) by PT-Coupling | Cam & Groove Coupler | Type CAL | 90° Elbow | 2" Coupler x 2" Adapter | 316 Stainless Steel | Buna-N Seal
PT Coupling
Cam & Groove (Camlock) Adapter | Type CAL | 90° Elbow | Coupler x Adapter | 316 Stainless Steel | Buna-N Seal
Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
Made in the USA
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–14 | $243.41 |
| 15–29 | $220.11 |
| 30+ | $194.21 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Cam & Groove Type:
Other
Ends Configuration:
Material(s):
Seal Material(s):
| Features & Applications: | |||
|---|---|---|---|
|
| Part Name |
Item # | Orientation | Coupler Size |
Adapter Size |
Max. Allowable Working Press. (PSI)* |
|---|---|---|---|---|---|
| 20CAL | 64504120** | 90° | 2" | 2" | 200 PSI |
| 30CAL | 64503130** | 90° | 3" | 3" | 200 PSI |
| 40CAL | 64504140 | 90° | 4" | 4" | 150 PSI |
| 40CAL-45 Deg | 64504145 | 45° | 4" | 4" | 150 PSI |
| 60CALHD-45 Deg | 6454426H | 45° Heavy Duty | 6" | 6" | 75 PSI |
** Denotes parts are produced as welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
