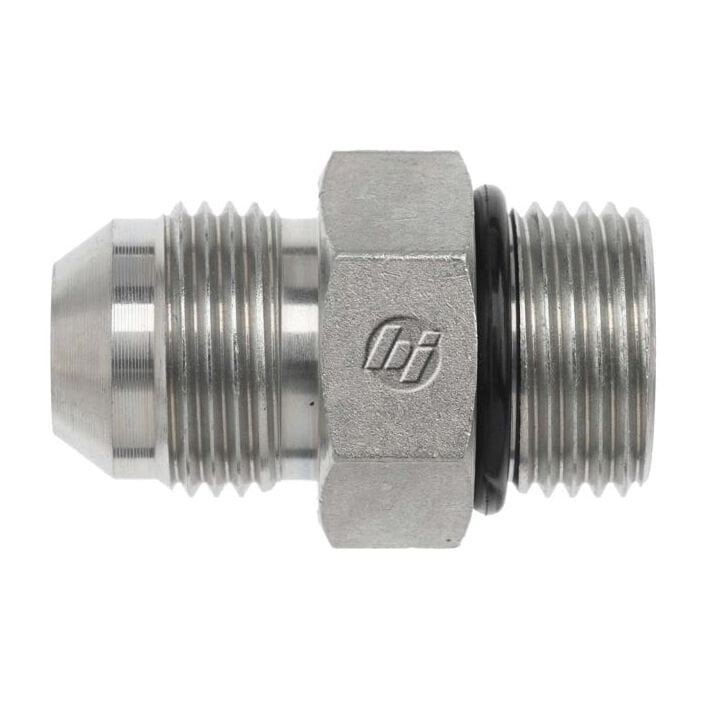

6400-12-12-O by Brennan Inc. | -12 Male JIC x -12 Male O-Ring Boss | Straight | Steel
Minimum Order Quantity: 5 Units
Brennan Inc.
Tube Fittings & Adapters: 6400 - Male JIC x Male O-Ring Boss | Straight
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $11.17 |
| 40–79 | $10.10 |
| 80+ | $8.91 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | Tube O.D | B1 SAE37° | B2 SAEORB | B1 Drill | B2 Drill | L5 Length | C4 Hex |
| 6400-02-02-O | Steel | 1/8" | 5/16-24" | 5/16-24" | 0.062" | 0.062" | 1.06" | 0.438" |
| 6400-02-06-O | Steel | 1/8" | 5/16-24" | 9/16-18" | 0.062" | 0.297" | 1.19" | 0.688" |
| 6400-03-02-O | Steel | 3/16" | 3/8-24" | 5/16-24" | 0.125" | 0.062" | 1.10" | 0.500" |
| 6400-03-03-O | Steel | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 1.10" | 0.500" |
| 6400-03-04-O | Steel | 3/16" | 3/8-24" | 7/16-20" | 0.125" | 0.172" | 1.160" | 0.562" |
| 6400-03-05-O | Steel | - | - | - | - | - | - | - |
| 6400-04-02-O | Steel | 1/4" | 7/16-20" | 5/16-24" | 0.172" | 0.062" | 1.170" | 0.500" |
| 6400-04-03-O | Steel | 1/4" | 7/16-20" | 3/8-24" | 0.172" | 0.125" | 1.170" | 0.500" |
| 6400-04-04-O | Steel | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 1.23" | 0.562" |
| 6400-04-04-O-BLANK | Steel | - | - | - | - | - | - | - |
| 6400-04-05-O | Steel | 1/4" | 7/16-20" | 1/2-20" | 0.172" | 0.234" | 1.230" | 0.625" |
| 6400-04-06-O | Steel | 1/4" | 7/16-20" | 9/16-18" | 0.172" | 0.297" | 1.290" | 0.688" |
| 6400-04-06-O-BLANK | Steel | - | - | - | - | - | - | - |
| 6400-04-08-O | Steel | 1/4" | 7/16-20" | 3/4-16" | 0.172" | 0.391" | 1.370" | 0.875" |
| 6400-04-10-O | Steel | 1/4" | 7/16-20" | 7/8-14" | 0.172" | 0.484" | 1.490" | 1.000" |
| 6400-04-12-O | Steel | 1/4" | 7/16-20" | 1-1/16-12" | 0.172" | 0.609" | 1.660" | 1.250" |
| 6400-05-04-O | Steel | 5/16" | 1/2-20" | 7/16-20" | 0.234" | 0.172" | 1.230" | 0.562" |
| 6400-05-05-O | Steel | 5/16" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 1.230" | 0.625" |
| 6400-05-06-O | Steel | 5/16" | 1/2-20" | 9/16-18" | 0.234" | 0.297" | 1.290" | 0.688" |
| 6400-05-08-O | Steel | 5/16" | 1/2-20" | 3/4-16" | 0.234" | 0.391" | 1.370" | 0.875" |
| 6400-05-10-O | Steel | 5/16" | 1/2-20" | 7/8-14" | 0.234" | 0.484" | 1.49" | 1.000" |
| 6400-06-03-O | Steel | 3/8" | 9/16-18" | 3/8-24" | 0.297" | 0.125" | 1.212" | 0.625" |
| 6400-06-04-O | Steel | 3/8" | 9/16-18" | 7/16-20" | 0.297" | 0.172" | 1.270" | 0.625" |
| 6400-06-05-O | Steel | 3/8" | 9/16-18" | 1/2-20" | 0.297" | 0.234" | 1.270" | 0.625" |
| 6400-06-06-O | Steel | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.30" | 0.688" |
| 6400-06-06-O-BLANK | Steel | - | - | - | - | - | - | - |
| 6400-06-08-O | Steel | 3/8" | 9/16-18" | 3/4-16" | 0.297" | 0.391" | 1.380" | 0.875" |
| 6400-06-10-O | Steel | 3/8" | 9/16-18" | 7/8-14" | 0.297" | 0.484" | 1.50" | 1.000" |
| 6400-06-12-O | Steel | 3/8" | 9/16-18" | 1-1/16-12" | 0.297" | 0.609" | 1.66" | 1.250" |
| 6400-06-16-O | Steel | 3/8" | 9/16-18" | 1-5/16-12" | 0.297" | 0.844" | 1.690" | 1.500" |
| 6400-08-04-O | Steel | 1/2" | 3/4-16" | 7/16-20" | 0.391" | 0.172" | 1.49" | 0.875" |
| 6400-08-05-O | Steel | 1/2" | 3/4-16" | 1/2-20" | 0.391" | 0.234" | 1.49" | 0.875" |
| 6400-08-06-O | Steel | 1/2" | 3/4-16" | 9/16-18" | 0.391" | 0.297" | 1.44" | 0.812" |
| 6400-08-08-O | Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.48" | 0.875" |
| 6400-08-08-O-BLANK | Steel | - | - | - | - | - | - | - |
| 6400-08-10-O | Steel | 1/2" | 3/4-16" | 7/8-14" | 0.391" | 0.484" | 1.600" | 1.000" |
| 6400-08-12-O | Steel | 1/2" | 3/4-16" | 1-1/16-12" | 0.391" | 0.609" | 1.760" | 1.250" |
| 6400-08-14-O | Steel | 1/2" | 3/4-16" | 1-3/16-12" | 0.391" | 0.719" | 1.76" | 1.375" |
| 6400-08-16-O | Steel | 1/2" | 3/4-16" | 1-5/16-12" | 0.391" | 0.844" | 1.79" | 1.500" |
| 6400-08-20-O | Steel | 1/2" | 3/4-16" | 1-5/8-12" | 0.391" | 1.078" | 1.87" | 1.875" |
| 6400-10-04-O | Steel | 5/8" | 7/8-14" | 7/16-20" | 0.484" | 0.172" | 1.65" | 0.937" |
| 6400-10-06-O | Steel | 5/8" | 7/8-14" | 9/16-18" | 0.484" | 0.297" | 1.71" | 1.000" |
| 6400-10-08-O | Steel | 5/8" | 7/8-14" | 3/4-16" | 0.391" | 0.391" | 1.640" | 1.000" |
| 6400-10-10-O | Steel | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 1.70" | 1.000" |
| 6400-10-12-O | Steel | 5/8" | 7/8-14" | 1-1/16-12" | 0.484" | 0.609" | 1.86" | 1.250" |
| 6400-10-14-O | Steel | 5/8" | 7/8-14" | 1-3/16-12" | 0.484" | 0.719" | 1.860" | 1.375" |
| 6400-10-16-O | Steel | 5/8" | 7/8-14" | 1-5/16-12" | 0.484" | 0.844" | 1.89" | 1.500" |
| 6400-10-20-O | Steel | 5/8" | 7/8-14" | 1-5/8-12" | 0.484" | 1.078" | 1.97" | 1.875" |
| 6400-12-06-O | Steel | 3/4" | 1-1/16-12" | 9/16-18" | 0.609" | 0.297" | 1.860" | 1.125" |
| 6400-12-08-O | Steel | 3/4" | 1-1/16-12" | 3/4-16" | 0.609" | 0.391" | 1.94" | 1.125" |
| 6400-12-10-O | Steel | 3/4" | 1-1/16-12" | 7/8-14" | 0.609" | 0.484" | 1.88" | 1.125" |
| 6400-12-12-O | Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.97" | 1.250" |
| 6400-12-14-O | Steel | 3/4" | 1-1/16-12" | 1-3/16-12" | 0.609" | 0.719" | 1.96" | 1.375" |
| 6400-12-16-O | Steel | 3/4" | 1-1/16-12" | 1-5/16-12" | 0.609" | 0.844" | 1.99" | 1.500" |
| 6400-12-20-O | Steel | 3/4" | 1-1/16-12" | 1-5/8-12" | 0.609" | 1.078" | 2.080" | 1.875" |
| 6400-12-24-O | Steel | 7/8" | 1-1/16-12" | 1-7/8-12" | 0.609" | 1.312" | 2.150" | 2.125" |
| 6400-14-08-O | Steel | 7/8" | 1-3/16-12" | 3/4-16" | 0.719" | 0.391" | 1.960" | 1.250" |
| 6400-14-12-O | Steel | 7/8" | 1-3/16-12" | 1-1/16-12" | 0.719" | 0.609" | 1.99" | 1.250" |
| 6400-14-14-O | Steel | 7/8" | 1-3/16-12" | 1-3/16-12" | 0.719" | 0.719" | 1.99" | 1.375" |
| 6400-14-16-O | Steel | 7/8" | 1-3/16-12" | 1-5/16-12" | 0.719" | 0.844" | 2.020" | 1.500" |
| 6400-16-06-O | Steel | 1" | 1-5/16-12" | 9/16-18" | 0.844" | 0.297" | 1.93" | 1.375" |
| 6400-16-08-O | Steel | 1" | 1-5/16-12" | 3/4-16" | 0.844" | 0.391" | 2.010" | 1.375" |
| 6400-16-10-O | Steel | 1" | 1-5/16-12" | 7/8-14" | 0.844" | 0.484" | 2.07" | 1.375" |
| 6400-16-12-O | Steel | 1" | 1-5/16-12" | 1-1/16-12" | 0.844" | 0.609" | 2.04" | 1.375" |
| 6400-16-14-O | Steel | 1" | 1-5/16-12" | 1-3/16-12" | 0.844" | 0.719" | 2.040" | 1.375" |
| 6400-16-16-O | Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 2.040" | 1.500" |
| 6400-16-20-O | Steel | 1" | 1-5/16-12" | 1-5/8-12" | 0.844" | 1.078" | 2.12" | 1.875" |
| 6400-16-24-O | Steel | 1" | 1-5/16-12" | 1-7/8-12" | 0.844" | 1.312" | 2.200" | 2.125" |
| 6400-20-12-O | Steel | 1-1/4" | 1-5/8-12" | 1-1/16-12" | 1.078" | 0.609" | 2.300" | 1.688" |
| 6400-20-16-O | Steel | 1-1/4" | 1-5/8-12" | 1-5/16-12" | 1.078" | 0.844" | 2.33" | 1.688" |
| 6400-20-20-O | Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 2.17" | 1.875" |
| 6400-20-24-O | Steel | 1-1/4" | 1-5/8-12" | 1-7/8-12" | 1.078" | 1.312" | 2.24" | 2.125" |
| 6400-20-32-O | Steel | 1-1/4" | 1-5/8-12" | 2-1/2-12" | 1.078" | 1.781" | 2.400" | 2.750" |
| 6400-24-16-O | Steel | 1-1/2" | 1-7/8-12" | 1-5/16-12" | 1.312" | 0.844" | 2.530" | 2.125" |
| 6400-24-20-O | Steel | 1-1/2" | 1-7/8-12" | 1-5/8-12" | 1.312" | 1.078" | 2.530" | 2.125" |
| 6400-24-24-O | Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 2.37" | 2.125" |
| 6400-24-32-O | Steel | 1-1/2" | 1-7/8-12" | 2-1/2-12" | 1.312" | 1.781" | 2.530" | 2.750" |
| 6400-32-20-O | Steel | 2" | 2-1/2-12" | 1-5/8-12" | 1.781" | 1.078" | 2.940" | 2.625" |
| 6400-32-24-O | Steel | 2" | 2-1/2-12" | 1-7/8-12" | 1.781" | 1.312" | 2.940" | 2.625" |
| 6400-32-32-O | Steel | 2" | 2-1/2-12" | 2-1/2-12" | 1.781" | 1.781" | 2.780" | 2.750" |
| 6400-04-04-O-B | Brass | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 1.23" | 0.562" |
| 6400-08-08-O-B | Brass | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.48" | 0.875" |
| 6400-12-12-O-B | Brass | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.97" | 1.250" |
| 6400-02-02-O-SS | Stainless Steel | 1/8" | 5/16-24" | 5/16-24" | 0.062" | 0.062" | 1.06" | 0.438" |
| 6400-03-02-O-SS | Stainless Steel | 3/16" | 3/8-24" | 5/16-24" | 0.125" | 0.062" | 1.10" | 0.500" |
| 6400-03-03-O-SS | Stainless Steel | 3/16" | 3/8-24" | 3/8-24" | 0.125" | 0.125" | 1.10" | 0.500" |
| 6400-04-02-O-SS | Stainless Steel | 1/4" | 7/16-20" | 5/16-24" | 0.172" | 0.062" | 1.170" | 0.500" |
| 6400-04-03-O-SS | Stainless Steel | 1/4" | 7/16-20" | 3/8-24" | 0.172" | 0.125" | 1.170" | 0.500" |
| 6400-04-04-O-SS | Stainless Steel | 1/4" | 7/16-20" | 7/16-20" | 0.172" | 0.172" | 1.23" | 0.562" |
| 6400-04-05-O-SS | Stainless Steel | 1/4" | 7/16-20" | 1/2-20" | 0.172" | 0.234" | 1.230" | 0.625" |
| 6400-04-06-O-SS | Stainless Steel | 1/4" | 7/16-20" | 9/16-18" | 0.172" | 0.297" | 1.290" | 0.688" |
| 6400-04-08-O-SS | Stainless Steel | 1/4" | 7/16-20" | 3/4-16" | 0.172" | 0.391" | 1.370" | 0.875" |
| 6400-05-04-O-SS | Stainless Steel | 5/16" | 1/2-20" | 7/16-20" | 0.234" | 0.172" | 1.230" | 0.562" |
| 6400-05-05-O-SS | Stainless Steel | 5/16" | 1/2-20" | 1/2-20" | 0.234" | 0.234" | 1.230" | 0.625" |
| 6400-06-04-O-SS | Stainless Steel | 3/8" | 9/16-18" | 7/16-20" | 0.297" | 0.172" | 1.270" | 0.687" |
| 6400-06-05-O-SS | Stainless Steel | 3/8" | 9/16-18" | 1/2-20" | 0.297" | 0.234" | 1.270" | 0.625" |
| 6400-06-06-O-SS | Stainless Steel | 3/8" | 9/16-18" | 9/16-18" | 0.297" | 0.297" | 1.30" | 0.688" |
| 6400-06-08-O-SS | Stainless Steel | 3/8" | 9/16-18" | 3/4-16" | 0.297" | 0.391" | 1.380" | 0.875" |
| 6400-06-10-O-SS | Stainless Steel | 3/8" | 9/16-18" | 7/8-14" | 0.297" | 0.484" | 1.50" | 1.000" |
| 6400-06-12-O-SS | Stainless Steel | 3/8" | 9/16-18" | 1-1/16-12" | 0.297" | 0.609" | 1.66" | 1.250" |
| 6400-06-16-O-SS | Stainless Steel | 3/8" | 9/16-18" | 1-5/16-12" | 0.297" | 0.844" | 1.690" | 1.500" |
| 6400-08-04-O-SS | Stainless Steel | 1/2" | 3/4-16" | 7/16-20" | 0.391" | 0.172" | 1.49" | 0.875" |
| 6400-08-06-O-SS | Stainless Steel | 1/2" | 3/4-16" | 9/16-18" | 0.391" | 0.297" | 1.44" | 0.812" |
| 6400-08-08-O-SS | Stainless Steel | 1/2" | 3/4-16" | 3/4-16" | 0.391" | 0.391" | 1.48" | 0.875" |
| 6400-08-10-O-SS | Stainless Steel | 1/2" | 3/4-16" | 7/8-14" | 0.391" | 0.484" | 1.600" | 1.000" |
| 6400-08-12-O-SS | Stainless Steel | 1/2" | 3/4-16" | 1-1/16-12" | 0.391" | 0.391" | 1.760" | 1.250" |
| 6400-08-16-O-SS | Stainless Steel | 1/2" | 3/4-16" | 1-5/16-12" | 0.391" | 0.844" | 1.79" | 1.500" |
| 6400-10-06-O-SS | Stainless Steel | 5/8" | 7/8-14" | 9/16-18" | 0.484" | 0.297" | 1.71" | 1.000" |
| 6400-10-08-O-SS | Stainless Steel | 5/8" | 7/8-14" | 3/4-16" | 0.391" | 0.391" | 1.640" | 1.000" |
| 6400-10-10-O-SS | Stainless Steel | 5/8" | 7/8-14" | 7/8-14" | 0.484" | 0.484" | 1.70" | 1.000" |
| 6400-10-12-O-SS | Stainless Steel | 5/8" | 7/8-14" | 1-1/16-12" | 0.484" | 0.609" | 1.86" | 1.250" |
| 6400-10-16-O-SS | Stainless Steel | 5/8" | 7/8-14" | 1-5/16-12" | 0.484" | 0.844" | 1.89" | 1.500" |
| 6400-12-06-O-SS | Stainless Steel | 3/4" | 1-1/16-12" | 9/16-18" | 0.609" | 0.297" | 1.860" | 1.125" |
| 6400-12-08-O-SS | Stainless Steel | 3/4" | 1-1/16-12" | 3/4-16" | 0.609" | 0.391" | 1.94" | 1.125" |
| 6400-12-10-O-SS | Stainless Steel | 3/4" | 1-1/16-12" | 7/8-14" | 0.609" | 0.484" | 1.88" | 1.125" |
| 6400-12-12-O-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-1/16-12" | 0.609" | 0.609" | 1.97" | 1.250" |
| 6400-12-16-O-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-5/16-12" | 0.609" | 0.844" | 1.99" | 1.500" |
| 6400-12-20-O-SS | Stainless Steel | 3/4" | 1-1/16-12" | 1-5/8-12" | 0.609" | 1.078" | 2.080" | 1.875" |
| 6400-16-06-O-SS | Stainless Steel | 1" | 1-5/16-12" | 9/16-18" | 0.844" | 0.297" | 1.93" | 1.375" |
| 6400-16-08-O-SS | Stainless Steel | 1" | 1-5/16-12" | 3/4-16" | 0.844" | 0.391" | 2.010" | 1.375" |
| 6400-16-10-O-SS | Stainless Steel | 1" | 1-5/16-12" | 7/8-14" | 0.844" | 0.484" | 2.07" | 1.375" |
| 6400-16-12-O-SS | Stainless Steel | 1" | 1-5/16-12" | 1-1/16-12" | 0.844" | 0.609" | 2.04" | 1.375" |
| 6400-16-16-O-SS | Stainless Steel | 1" | 1-5/16-12" | 1-5/16-12" | 0.844" | 0.844" | 2.040" | 1.500" |
| 6400-16-20-O-SS | Stainless Steel | 1" | 1-5/16-12" | 1-5/8-12" | 0.844" | 1.078" | 2.12" | 1.875" |
| 6400-16-24-O-SS | Stainless Steel | 1" | 1-5/16-12" | 1-7/8-12" | 0.844" | 1.312" | 2.200" | 2.125" |
| 6400-20-12-O-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-1/16-12" | 1.078" | 0.609" | 2.300" | 1.688" |
| 6400-20-16-O-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-5/16-12" | 1.078" | 0.844" | 2.33" | 1.688" |
| 6400-20-20-O-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-5/8-12" | 1.078" | 1.078" | 2.17" | 1.875" |
| 6400-20-24-O-SS | Stainless Steel | 1-1/4" | 1-5/8-12" | 1-7/8-12" | 1.078" | 1.312" | 2.24" | 2.125" |
| 6400-24-20-O-SS | Stainless Steel | 1-1/2" | 1-7/8-12" | 1-5/8-12" | 1.312" | 1.078" | 2.530" | 2.125" |
| 6400-24-24-O-SS | Stainless Steel | 1-1/2" | 1-7/8-12" | 1-7/8-12" | 1.312" | 1.312" | 2.37" | 2.125" |
| 6400-32-24-O-SS | Stainless Steel | 2" | 2-1/2-12" | 1-7/8-12" | 1.781" | 1.312" | 2.940" | 2.625" |
| 6400-32-32-O-SS | Stainless Steel | 2" | 2-1/2-12" | 2-1/2-12" | 1.781" | 1.781" | 2.780" | 2.750" |
